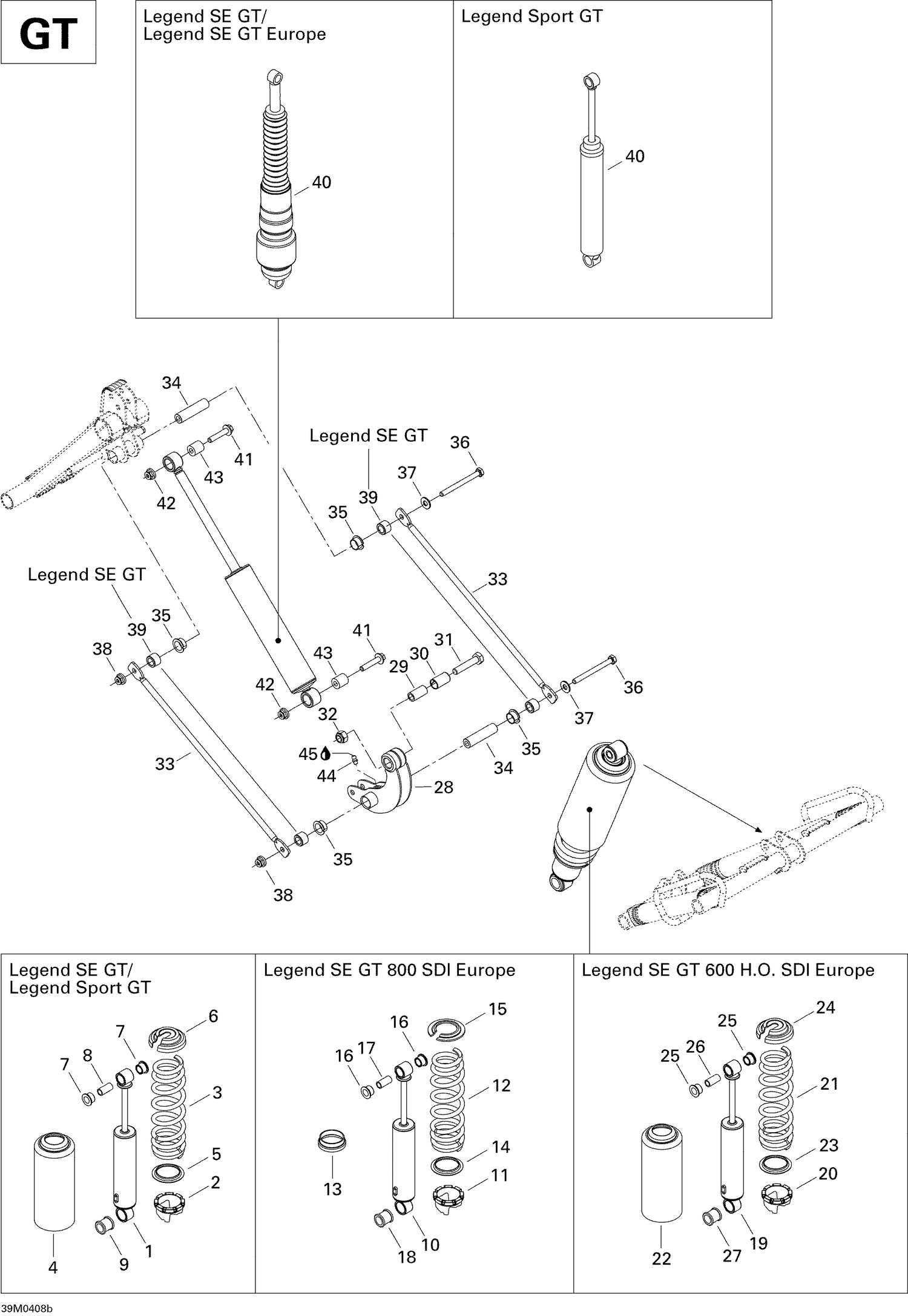

08- Rear Shocks GT
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 28 | 503189845 | Rocker |
| 29 | 503189388 | Rocker Axle |
| 30 | 503189626 | CUSHION - Call your local BRP dealership |
| 31 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 32 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 33 | 503190111 | THROTTLE ROD - Call your local BRP dealership |
| 35 | 503191555 | Swivel Bushing This part replaces 506150200. |
| 37 | 224081201 | FLAT WASHER - Call your local BRP dealership |
| 38 | 233281414 | Hex. Flange Elastic Nut M8 |
| 41 | 207684044 | Hex. Flange Screw M8 X 40 |
| 42 | 233281414 | Hex. Flange Elastic Nut M8 |
| 43 | 414936000 | Bushing |
| 44 | 408200700 | Grease Fitting |
