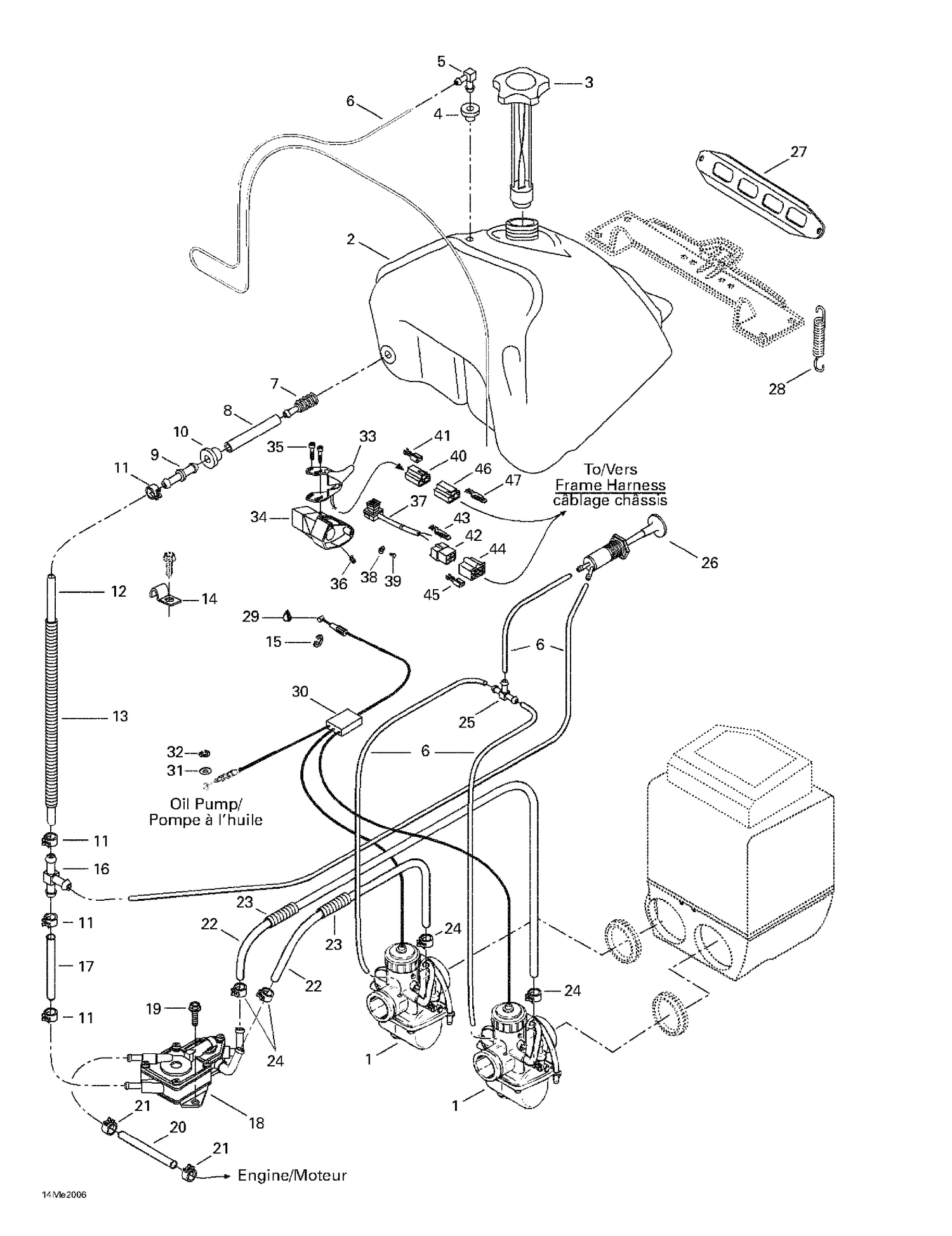

02- Fuel System
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 403138608 | Carburetor VM 38-431 (PTO) |
| 2 | 572108900 | Fuel Tank |
| 3 | 572161200 | Fuel Tank Cap |
| 4 | 513032908 | Grommet |
| 5 | 414814100 | Male Connector |
| 6 | 219704709 | NEEDS DESCRIPTION This part replaces 219704409. |
| 7 | 414865700 | Fuel Filter |
| 8 | Not | Available As Spare Part - Fuel Line |
| 9 | 414518500 | Male Connector |
| 10 | 570045500 | Grommet |
| 11 | 414554800 | Spring Clamp |
| 12 | 219704410 | Polyurethane Hose 10000Mm Long |
| 13 | 219704407 | Tubing 10 MM 1000MM Long |
| 14 | 415018200 | CLIP - Call your local BRP dealership |
| 15 | 414274500 | Circlip |
| 16 | 414222500 | T-fitting |
| 17 | 219704410 | Polyurethane Hose 10000Mm Long |
| 18 | 403801100 | FUEL PUMP ASS'Y - Call your local BRP dealership |
| 19 | 210361280 | HEX. SCREW M6 X 12 - Call your local BRP dealership |
| 20 | 219704549 | Hose This part replaces 219704439. |
| 21 | 414415200 | Spring Clamp |
| 22 | 415117800 | Tube |
| 23 | 219704407 | Tubing 10 MM 1000MM Long |
| 24 | 414420700 | Spring Clamp |
| 25 | 414222400 | T-Fitting |
| 26 | 415060500 | Primer |
| 27 | 517249200 | Fuel Tank Bracket |
| 28 | 517182100 | SPRING - Call your local BRP dealership |
| 29 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 30 | 414968801 | Throttle Cable and Housing (38 mm) |
| 31 | 234081100 | Flat Washer 8 mm, Nylon This part replaces 414753300. |
| 32 | 414753500 | Circlip |
| 33 | 512059348 | Handle Ass'y This part replaces 512059162. |
| 34 | 572028600 | Throttle Handle Housing |
| 35 | 732601143 | Flange Screw |
| 36 | 414440800 | Socket Set Screw M8 X 10 |
| 37 | 515177362 | Emergency Stop Switch This part replaces 512059146. |
| 38 | 391300700 | WASHER-FLAT - Call your local BRP dealership |
| 39 | 414473200 | Screw |
| 40 | 409008500 | Female Terminal Housing (3 circuits) |
| 41 | 515175253 | FEMALE TERMINAL - Call your local BRP dealership |
| 42 | 409209300 | MALE HOUSING - Call your local BRP dealership |
| 43 | 409210000 | MALE TERMINAL - Call your local BRP dealership |
| 44 | 409204900 | FEMALE HOUSING - Call your local BRP dealership |
| 45 | 561503200 | Female Terminal PACKARD |
| 46 | 409008600 | Male Terminal Housing (3 circuits) |
| 403138609 | Carburateur | VM 38-432 (MAG) 403138609 |
| 403138609 | Carburetor | VM 38-432 (MAG) 403138609 |
