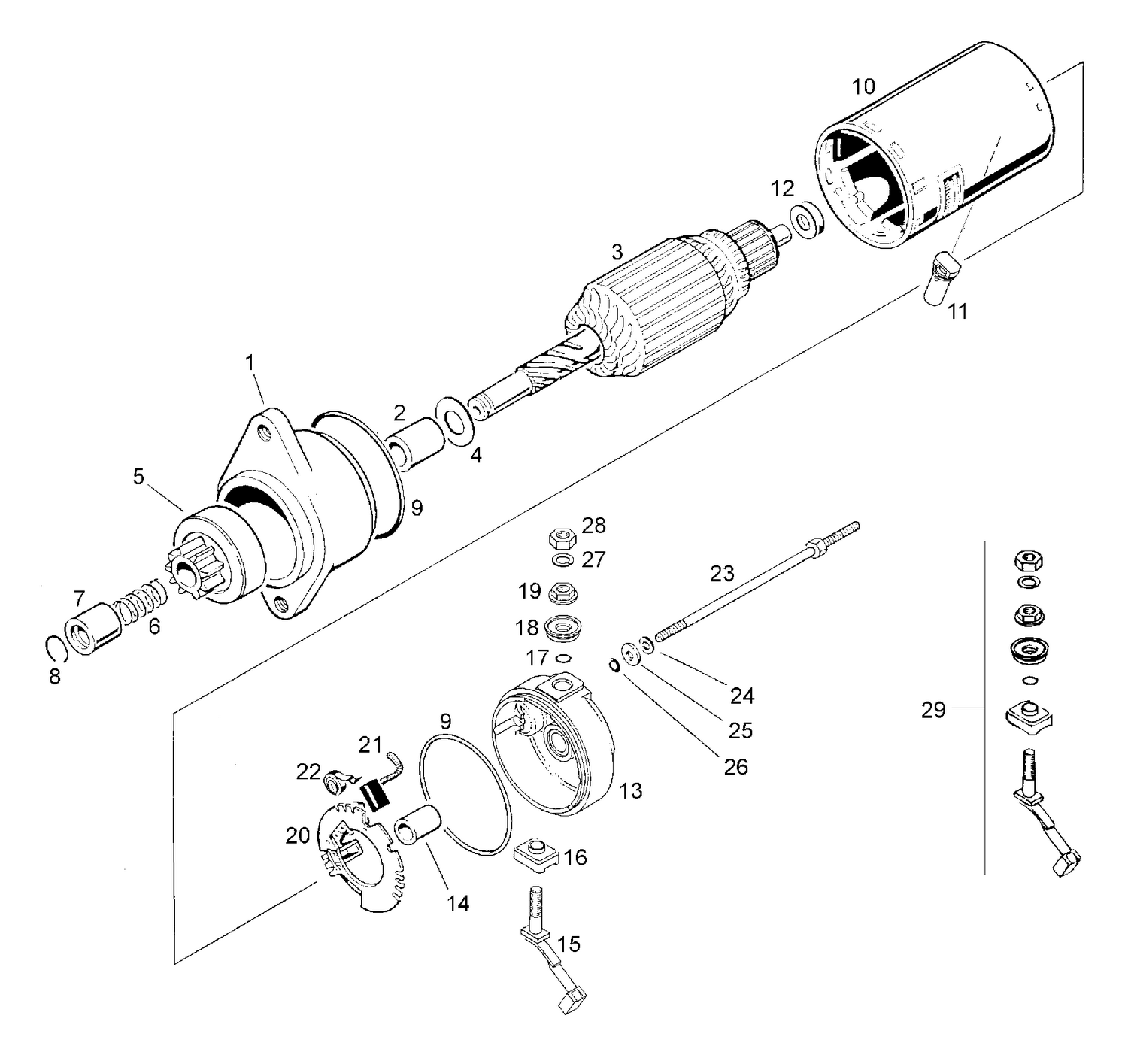

10- Electric Starter
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 2 | Not | Available As Spare Part - Cylinder with sleeve - DOES NOT APPLY TO THIS MODEL |
| 3 | 420866870 | Rotor assy |
| 4 | 420927050 | Shim |
| 5 | 420866850 | Bendix wheel |
| 6 | 420939030 | Spring |
| 7 | 420927040 | Stop |
| 8 | 420845360 | Lock ring |
| 9 | 420850500 | O-ring |
| 10 | 420866860 | Stator assy |
| 11 | 420860600 | Rubber |
| 12 | 420827600 | Shim |
| 14 | Not | Available As Spare Part - Lock washer - DOES NOT APPLY TO THIS MODEL |
| 15 | 420866892 | Brush |
| 16 | 420260820 | Isolating bushing |
| 17 | 420230530 | O-ring |
| 18 | 420260800 | Connector seath |
| 19 | 420242780 | Nut M6 |
| 20 | 410208600 | Brush holder |
| 21 | 420866185 | Brush |
| 23 | 420841860 | Screw |
| 24 | 420945750 | Spring washer |
| 25 | 420827800 | WASHER - Call your local BRP dealership |
| 26 | 420850510 | O-ring |
| 27 | 420945751 | WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 28 | 232061414 | Nut This part replaces 420242211. |
