Home / BRP / 2020 / 002 - SKI-DOO - North America - EXPEDITION Series / 008 - EXPEDITION XTREME 850 E-TEC - North America, 2020 000ADLA00 / GEARCASE

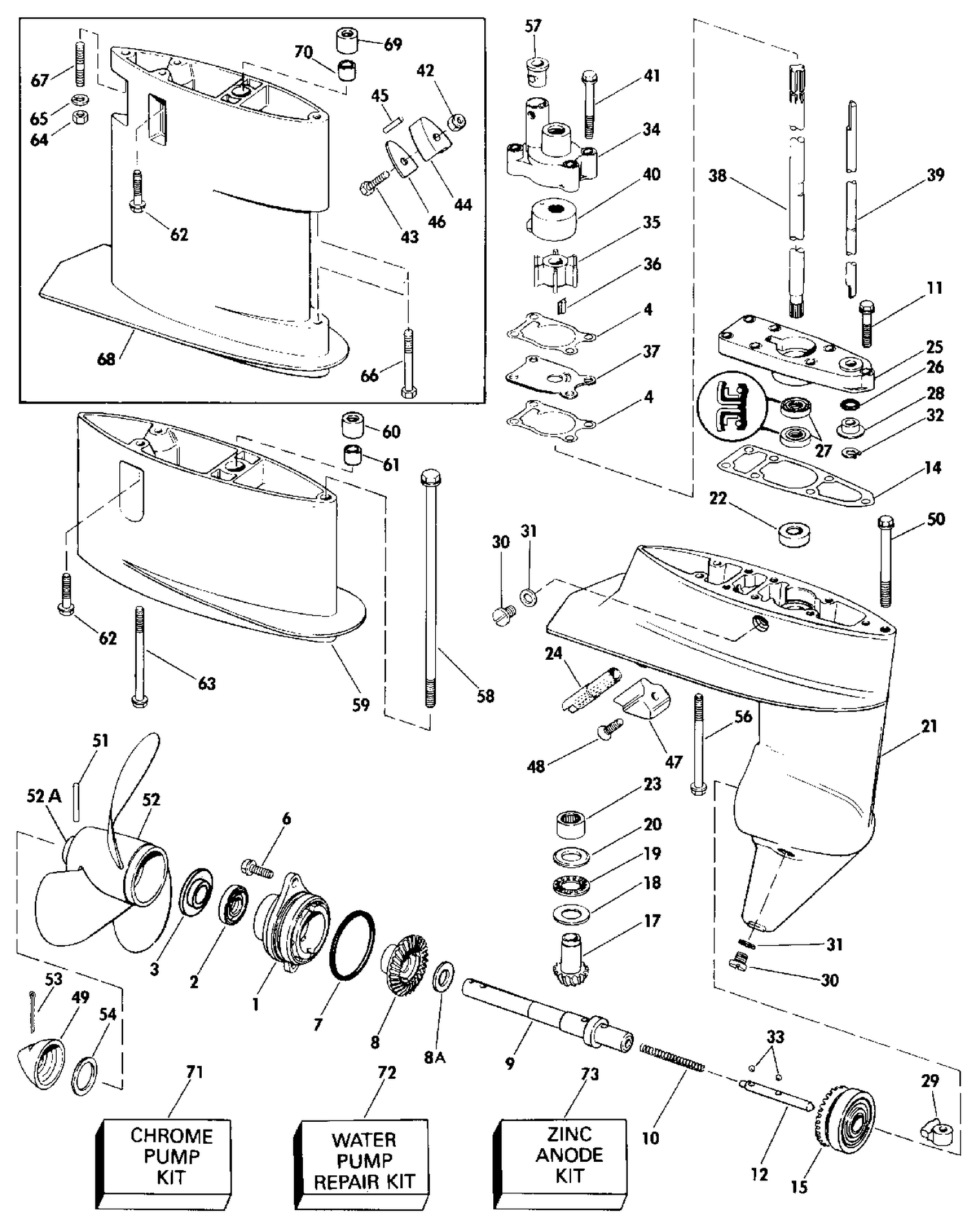

GEARCASE

GEARCASE

Parts (44)

RefPart NumberDescription
8 0397699 GEAR & BUSHING ASSY., Reverse
8A 0322201 THRUS TWASHER,Upper pinion bearing
9 0435407 PROPELLER SHAFT This part replaces 0332657.
10 0343272 SPRING, Shifter This part replaces 0332656.
12 0332655 SHIFTER
15 0432144 GEAR & BEARING ASSY., Forward
17 0331599 PINION, Driveshaft
18 0322202 THRUST WASHER, Lower pinion bearing
20 0322201 THRUS TWASHER,Upper pinion bearing
21 0397701 GEARCASE, Housing assy.
26 0305242 O RING
29 0332654 CAM, Shift
33 0332658 BALL, Drive
34 0389577 IMPELLER HOUSING ASSY.
35 0436137 IMPELLER Assy This part replaces 0433936.
37 0324640 PLAT, Impeller housing
38 0336062 DRIVESHAFT, Std. 15 in.
38 0336064 DRIVESHAFT, Long
38 0336065 DRIVESHAFT, X-long, 25 in.
39 0326060 SHIFT ROD, Long
39 0336061 SHIFT ROD, Lower
39 0336067 SHIFT ROD, Lower, x-long
41 0331980 SCREW, Bracket, port
44 0327501 EXHAUST PLUG
45 0327503 DRAIN TUBE
46 0327505 PLATE, Exhaust plub (srl only)
47 0432397 ANODE KIT This part replaces 0334451.
49 0324694 CAP, Propeller shaft
50 0342540 SCREW, Exhaust housing to ext. This part replaces 0316440.
51 0324690 DRIVE PIN
52 0390237 PROPELLER
52 0391096 PROPELLER
52 0392183 PROPELLER - 9 1/4 X 6 1/2
54 0324689 SPACER
66 0342540 SCREW, Exhaust housing to ext. This part replaces 0316440.
67 0552913 STUD, Gearcase to exh. hsg.
68 0396032 EXTENSION ASSY.
68 0396307 EXTENSION ASSY.
71 0390772 CHROME PUMP KIT
72 0396644 WATER PUMP REPAIR KIT
0434279 0434279 GEARCASE ASSY., Std.
0434280 0434280 GEARCASE ASSY., Long
0434287 0434287 GEARCASE ASSY.
0434887 0434887 EXTENSION KIT ASSY.
