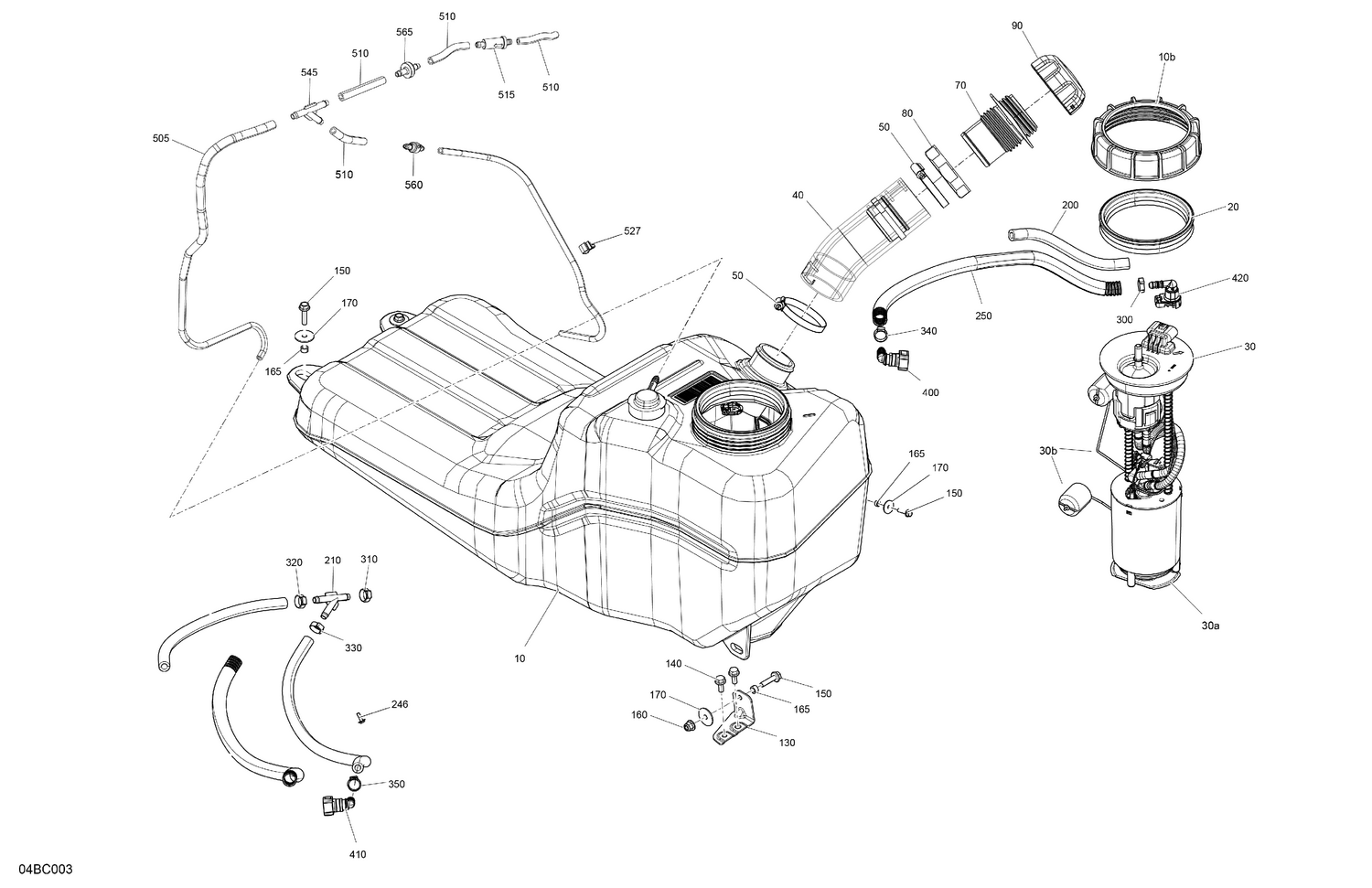

02- Engine - Fuel
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 250100062 | Special Nut M130 |
| 20 | 293250173 | Gasket |
| 30a | 270600113 | Fuel Filter |
| 30b | 715900424 | Fuel Sender |
| 40 | 709001206 | Hose Fuel Tank Ass'y |
| 50 | 293650081 | Norma Clamp |
| 70 | 709000867 | Filler Neck |
| 80 | 293600206 | Fuel Filler Neck Nut |
| 90 | 709000868 | Fuel Cap |
| 130 | 709000997 | Tank Bracket |
| 140 | 207661644 | Hex. Flange Screw M6 X 16 |
| 150 | 207662554 | Hex. Flange Screw M6 X 25 |
| 160 | 233261466 | Hex. Flange Elastic Nut M6 |
| 165 | 293900135 | Spacer |
| 170 | 250200029 | Washer M6 |
| 200 | 219704475 | Hose 7,94 MM ID 3000MM Long |
| 210 | 709001329 | Y Fitting |
| 246 | 250000959 | Screw PT Type K-50 X 16 |
| 250 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 300 | 293650053 | Crimp Clamp |
| 310 | 293650053 | Crimp Clamp |
| 320 | 293650053 | Crimp Clamp |
| 330 | 293650053 | Crimp Clamp |
| 340 | 293650053 | Crimp Clamp |
| 350 | 293650053 | Crimp Clamp |
| 400 | 275500921 | Quick Disconnect |
| 410 | 275500921 | Quick Disconnect |
| 420 | 275500921 | Quick Disconnect |
| 505 | 219704389 | Polyurethane Hose 4000MM Long |
| 510 | 219704389 | Polyurethane Hose 4000MM Long |
| 515 | 709001120 | Filter |
| 527 | 515176795 | Tie Rap Mount (screwable) |
| 545 | 293710059 | Y-Fitting |
| 560 | 513033469 | Check Valve |
