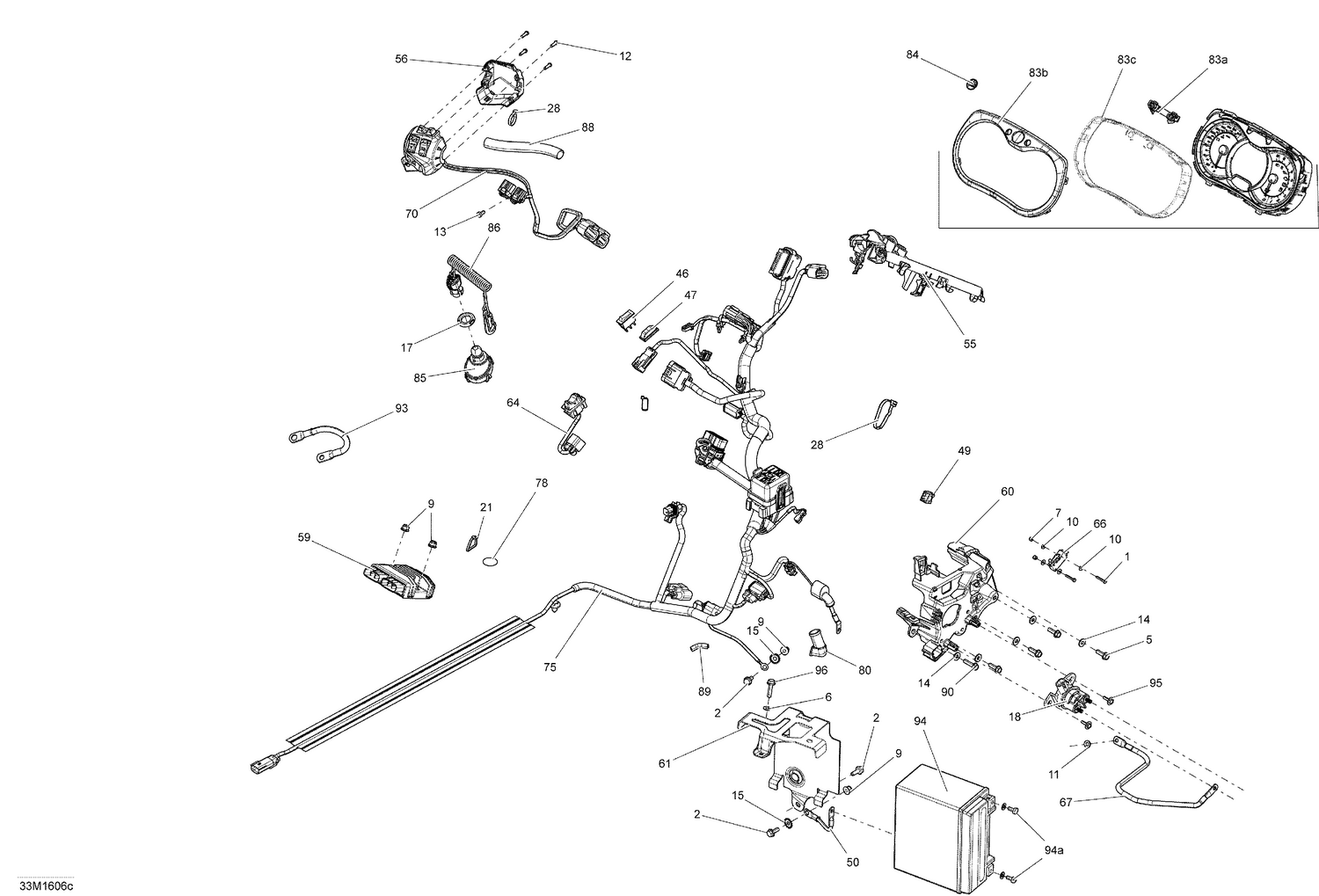

10- Electrical System - 1200 4-TEC, Package Blizzard
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207132044 | Hex Screw M3 X 20 |
| 2 | 207661644 | Hex. Flange Screw M6 X 16 |
| 5 | 210262040 | Hex. Flange Screw M6 X 20 |
| 6 | 224061121 | Flat Washer |
| 7 | 232531423 | Elastic Stop Nut M3 |
| 8 | 232561434 | Elastic Stop Nut M6 |
| 9 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 10 | 234032600 | Flat Washer M3, Stainless |
| 11 | 234061410 | Flat Washer 6 mm |
| 12 | 250000671 | Torx Screw |
| 13 | 250000690 | Pan Screw Forming, 7500C |
| 14 | 250200039 | Flat Washer |
| 15 | 250200041 | Lock Washer Serrated M6 |
| 17 | 278002963 | Safety Nut (DESS Switch) |
| 18 | 278003012 | Starter Relay |
| 19 | 293750001 | Tie Wrap 94 mm |
| 21 | 293750002 | Tie Wrap 142 mm |
| 28 | 414115200 | Tie-Rap 180 mm |
| 46 | 510004413 | Rocker Switch |
| 47 | 510004414 | Switch Protector |
| 48 | 515175662 | Male Terminal Housing, 6 Circuits |
| 49 | 515175846 | Male Terminal Housing, 4 Circuits |
| 50 | 515176358 | Ground Wire |
| 55 | 515177134 | Connector Plate |
| 56 | 515177147 | Housing Plate |
| 59 | 710010539 | Voltage Regulator This part replaces 515177325. |
| 60 | 515177347 | Plate |
| 61 | 515177348 | Battery Support |
| 64 | 515177394 | Switch |
| 66 | 515177460 | Switch Ass'y |
| 67 | 515177535 | BATTERY WIRE - Call your local BRP dealership |
| 70 | 515178197 | LH Switch Housing This part replaces 515177677. |
| 78 | 518325560 | Adhesive Patch |
| 80 | 710000495 | Protector Cap |
| 83a | 415129355 | Speedometer Button |
| 83b | 415129348 | Gauge Ring |
| 83c | 415129349 | Lens |
| 84 | 516006224 | BRP Logo 20MM x 2MM |
| 85 | 515178840 | Terminal Dess One-Wire This part replaces 515178049. |
| 86 | 515178286 | Grey, RF Key Ass'y This part replaces 515178038. |
| 86 | 860201162 | Key |
| 88 | 219704418 | PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership |
| 89 | 219704354 | Trim 1000Mm Long |
| 90 | 210262550 | Hex. Flange Forming Screw M6 X 25 |
| 93 | 515177014 | Ground Wire |
| 94 | 415129898 | Battery YUASA YTX20HL |
| 94a | 250000282 | Battery Bolt Kit |
| 95 | 250000725 | Screw M4 X 16 |
