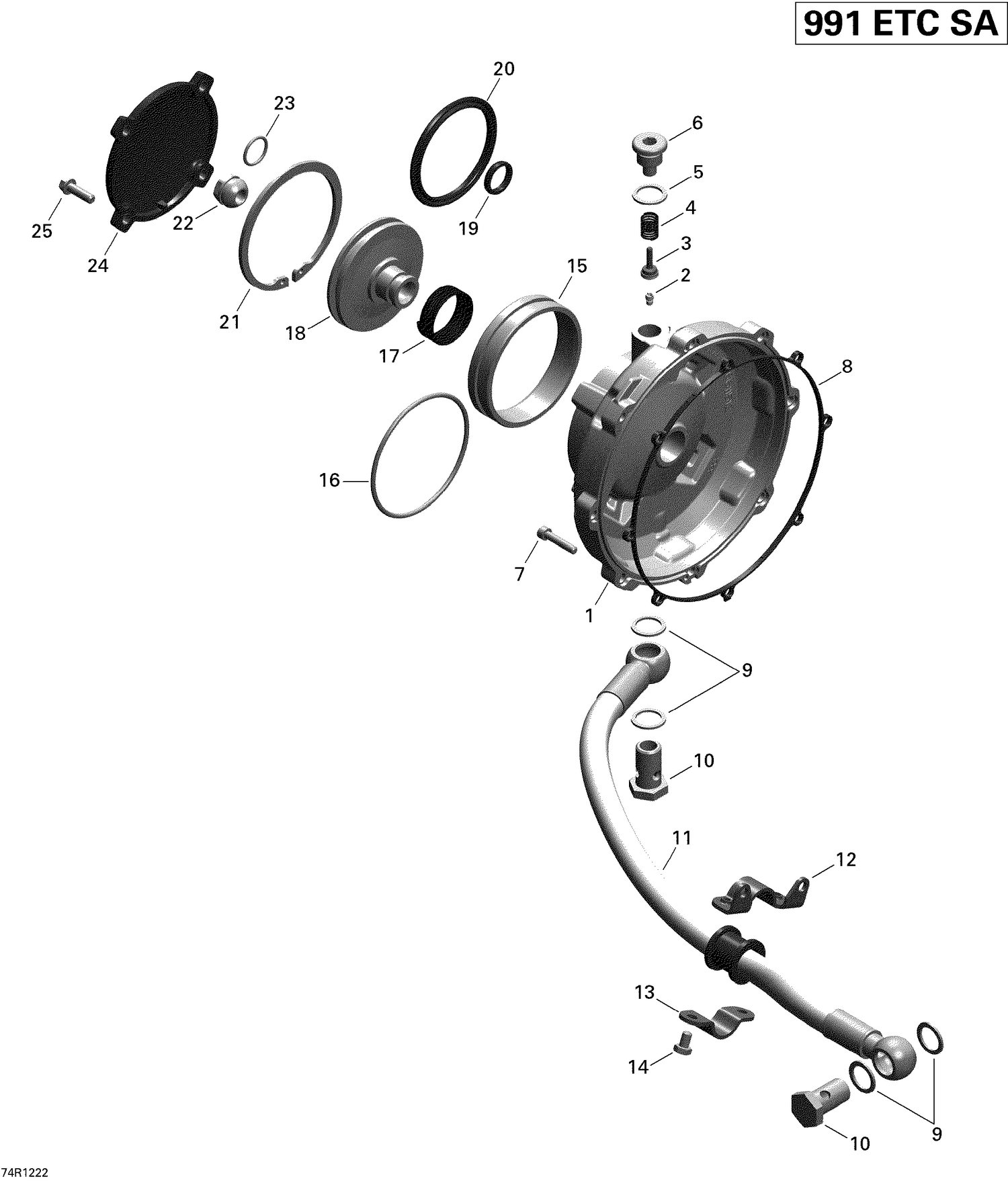

05- Clutch Release Cover
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420611512 | Clutch Release Cover |
| 2 | 420262050 | Nozzle |
| 3 | 420656374 | Pressure Retaining Valve |
| 4 | 420939481 | Spring This part replaces 420939480. |
| 5 | 420430624 | Oil Pressure Regulator Gasket Ring This part replaces 420430623. |
| 6 | 420242151 | Screw Plug |
| 7 | 420240187 | Socket Head Screw M5 X 25 This part replaces 420240186. |
| 8 | 420651242 | Gasket |
| 9 | 420430624 | Oil Pressure Regulator Gasket Ring This part replaces 420430623. |
| 10 | 420640848 | BANJO BOLT - Call your local BRP dealership |
| 11 | 420656210 | Oil Line Ass'y |
| 12 | 420651540 | Hose Bracket |
| 13 | 420651542 | Hose Bracket |
| 14 | 207161044 | HEX. SCREW M6 X 10 - Call your local BRP dealership |
| 15 | 420656520 | Cylinder Sleeve |
| 16 | 420950981 | O-Ring This part replaces 420950980. |
| 17 | 420238770 | Compression Spring |
| 18 | 420656125 | Hydraulic Piston |
| 19 | 420431350 | Piston Lining |
| 20 | 420431360 | Piston Lining |
| 21 | 420245230 | Retaining Ring |
| 22 | 420242641 | Nut M10 X 1 |
| 23 | 420631890 | O-Ring |
| 24 | 420626205 | Cover, Hydraulic Piston |
