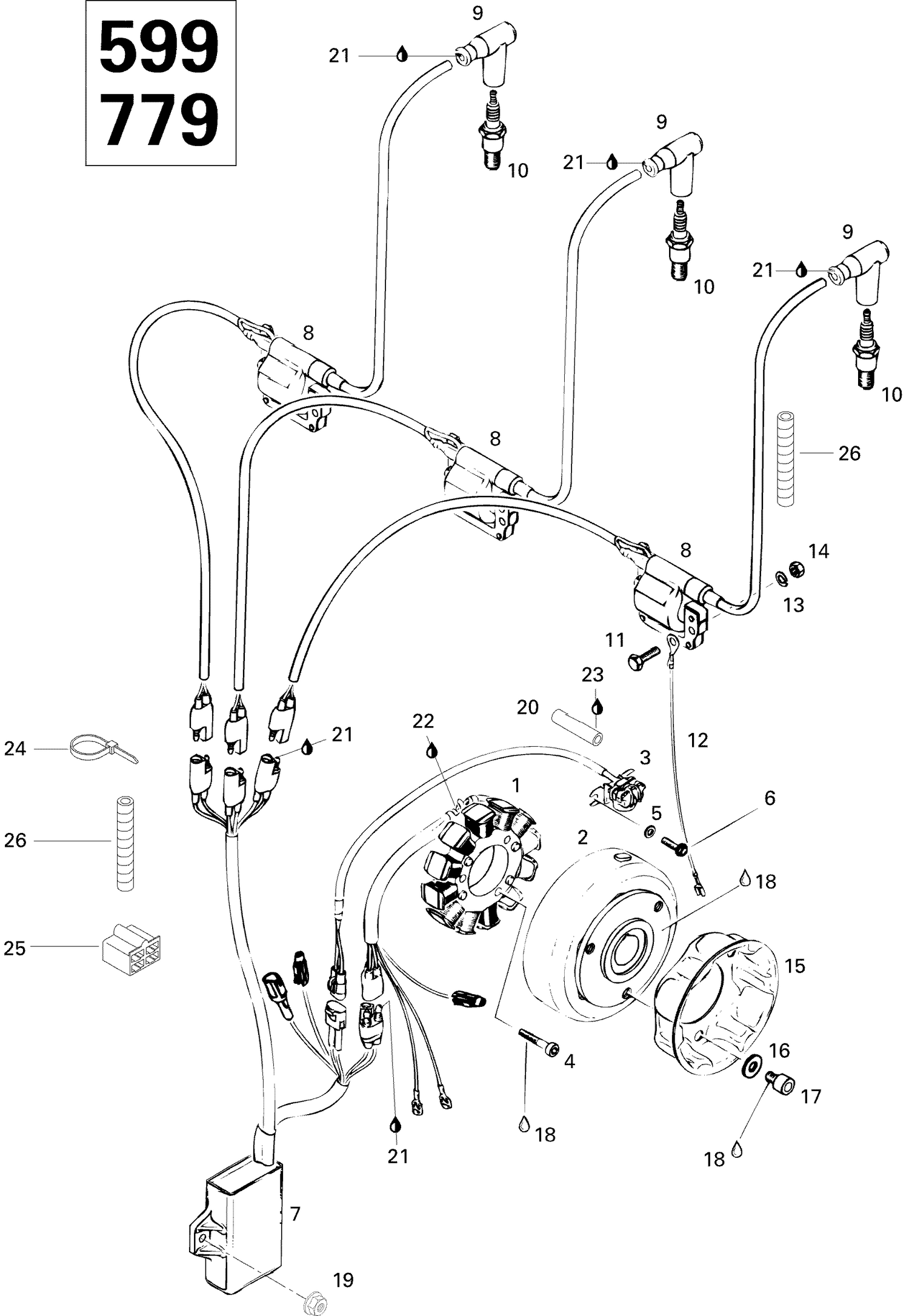

| Ref | Part Number | Description |
|---|
| 1 |
410919300 |
STATOR ASS'Y - Call your local BRP dealership |
| 2 |
410919400 |
Magneto Flywheel |
| 3 |
410916700 |
Pick Up Ass'y |
| 4 |
420840887 |
SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886. |
| 5 |
420827800 |
WASHER - Call your local BRP dealership |
| 6 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 7 |
410919500 |
Amplifier Box |
| 8 |
420965735 |
Ignition Coil |
| 9 |
414864000 |
SPARK PLUG CAP - Call your local BRP dealership |
| 10 |
414586700 |
Spark Plug (NGK BR10-ES) |
| 11 |
207162044 |
Hex. Screw M6 X 20 This part replaces 222062065. |
| 12 |
Not |
Available As Spare Part - Mass Cable Ass'y |
| 13 |
420945751 |
WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 14 |
232061414 |
Hex. Nut M6 This part replaces 228061045. |
| 15 |
420852590 |
Starting Pulley This part replaces 420852415. |
| 16 |
420827405 |
Flat Washer |
| 17 |
420841520 |
Socket Head Screw M8 X 12 |
| 18 |
293800060 |
Loctite 243, 10 ml This part replaces 413703000. |
| 19 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 20 |
420830452 |
Silencer Tube |
| 21 |
413706100 |
LITHIUM GREASE, 400 GR - Call your local BRP dealership |
| 22 |
Not |
Available As Spare Part - Silastic 732 RTV, 100 gr |
| 23 |
Not |
Available As Spare Part - Sikaflex 255, 310 gr |
| 24 |
414115200 |
Tie-Rap 180 mm |
| 25 |
409204900 |
FEMALE HOUSING - Call your local BRP dealership |
