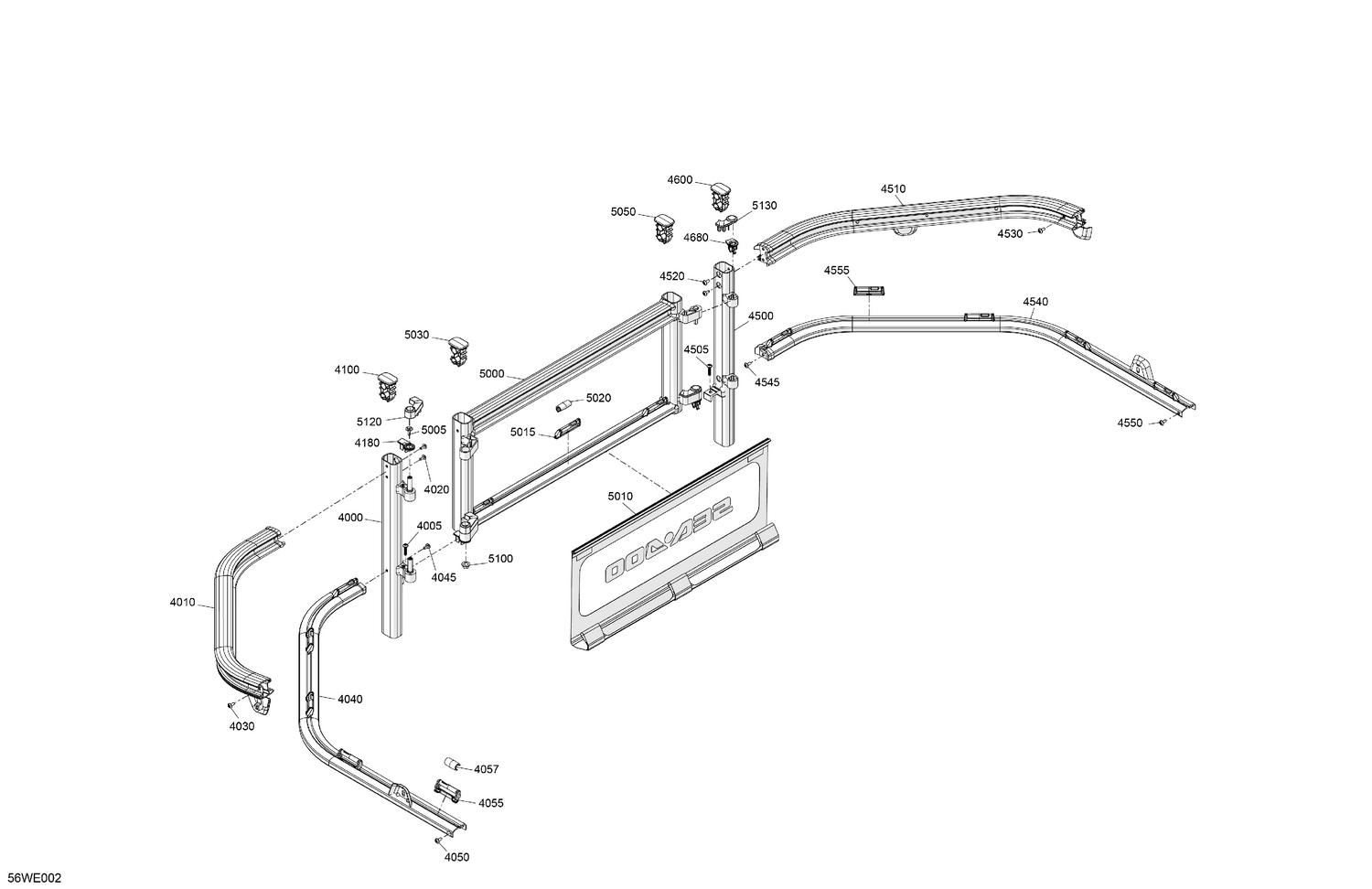

11- GUARD RAILS - Front
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 4000 | 281300714 | LH Front Profiled Tube |
| 4005 | 250000879 | Plastite Torx Screw M6.81X30 |
| 4010 | 281300350 | LH Front Hand Rail |
| 4020 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 4030 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 4040 | 281300349 | LH Lower Profile Tube |
| 4045 | 250001185 | Cone Torx Truss Screw HD.M6 X 51 |
| 4050 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 4055 | 281300589 | Balustrade Anchor |
| 4057 | 281300597 | Balustrade Fastener |
| 4100 | 281300278 | Oblong Plug |
| 4180 | 281300311 | LH Lower Cap |
| 4500 | 281300715 | RLH Front Profiled Tube |
| 4505 | 250000879 | Plastite Torx Screw M6.81X30 |
| 4510 | 281300355 | RH Front Hand Rail |
| 4520 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 4530 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 4540 | 281300356 | Rear Lower Profiled Tube |
| 4545 | 250001185 | Cone Torx Truss Screw HD.M6 X 51 |
| 4550 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 4555 | 281300589 | Balustrade Anchor |
| 4600 | 281300278 | Oblong Plug |
| 4680 | 281300312 | RH Lower Cap |
| 5000 | 295101112 | Front Door Service Kit |
| 5005 | 250000965 | Hex Screw M6 X 20 |
| 5010 | 281300692 | Front Balustrade Ass'y |
| 5015 | 281300589 | Balustrade Anchor |
| 5020 | 281300597 | Balustrade Fastener |
| 5030 | 281300278 | Oblong Plug |
| 5050 | 281300278 | Oblong Plug |
| 5100 | 293900007 | Venturi Bushing |
| 5120 | 281300309 | LH Upper Cap |
