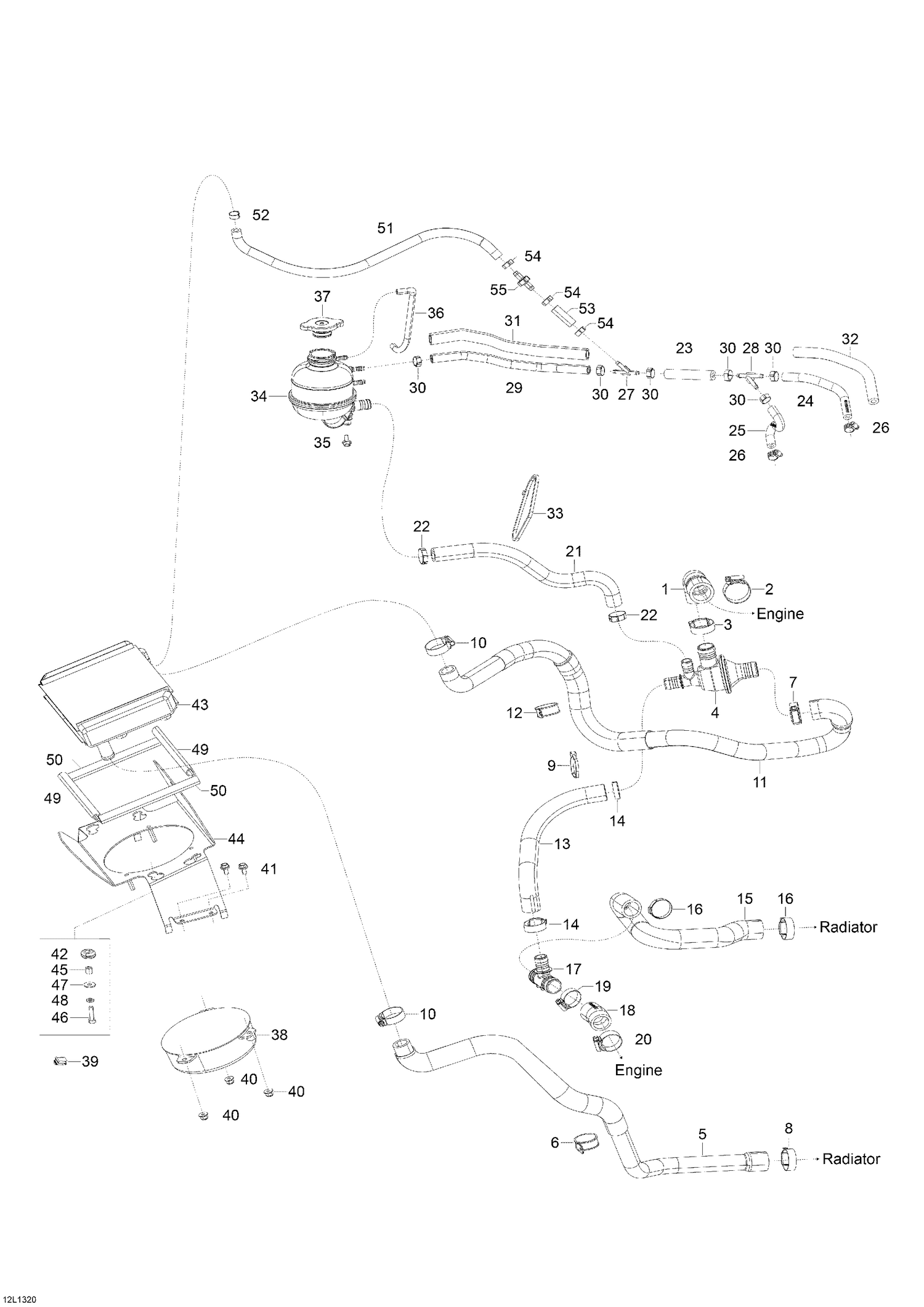

01- Cooling System
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000678 | Hose, Engine Outlet |
| 2 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 3 | 509000529 | Crimp Clamp |
| 4 | 509000499 | Thermostat Housing |
| 5 | 509000760 | Hose, Radiator |
| 6 | 27011 | Clamp |
| 7 | 509000181 | Crimp Clamp |
| 8 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 9 | 414115200 | Tie-Rap 180 mm |
| 10 | 293650099 | Crimp Clamp |
| 11 | 509000761 | Hose, Thermostat |
| 12 | 27011 | Clamp |
| 13 | 509000672 | Bypass Hose |
| 14 | 293650099 | Crimp Clamp |
| 15 | 509000589 | Hose, Radiator |
| 16 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 17 | 509000372 | T-Fitting |
| 18 | 509001067 | Engine Inlet Hose This part replaces 509000675. |
| 19 | 509000529 | Crimp Clamp |
| 20 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 21 | 509000676 | Filling Hose |
| 22 | 509000442 | Crimp Clamp |
| 23 | 415129508 | Hose |
| 24 | 509000769 | Hose |
| 25 | 509000768 | Hose |
| 26 | 293650170 | Gear Clamp |
| 27 | 293710059 | Y-Connector |
| 28 | 293710059 | Y-Connector |
| 29 | 415129508 | Hose |
| 30 | 293650046 | Oetiker Clamp |
| 31 | 415080000 | Protector Tube |
| 32 | 513033231 | Protector Tube |
| 33 | 293750008 | Tie-Rap 368 mm |
| 34 | 509000368 | Coolant Tank |
| 35 | 241151640 | Hex. Flange Screw K50 x 16 |
| 36 | 415110000 | Hose |
| 37 | 509000180 | Radiator Pressure Cap |
| 38 | 509000837 | Cooling Fan |
| 39 | 710000992 | Clip |
| 40 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 41 | 207661244 | Hex. Flange Screw M6 X 12 |
| 42 | 709000582 | Grommet This part replaces 293720053. |
| 43 | 509000756 | Radiator |
| 44 | 509000746 | Radiator Support |
| 45 | 605453745 | Bushing |
| 46 | 207162044 | Hex. Cap Screw M6 x 20 |
| 47 | 234062410 | Flat Washer 6 mm |
| 48 | 20052 | Lock Washer M6 |
| 49 | 509000823 | D-Seal 12 x 15 |
| 50 | 509000824 | D-Seal 12 x 15 |
| 51 | 509000407 | Hose |
| 52 | 293650140 | Crimp Clamp |
| 53 | 509000407 | Hose |
| 54 | 293650140 | Crimp Clamp |
