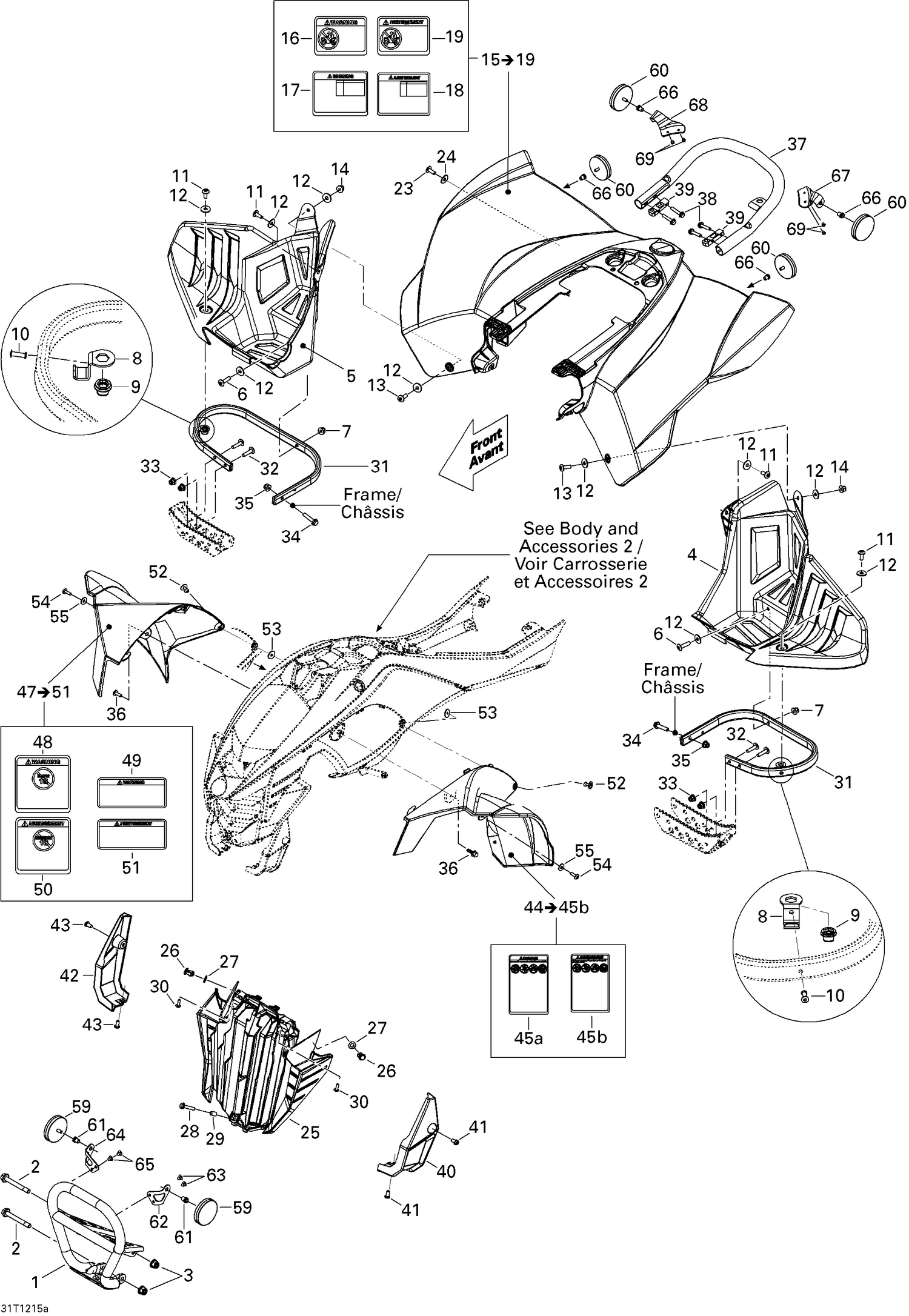

| Ref | Part Number | Description |
|---|
| 1 |
705002768 |
FRONT BUMPER - Call your local BRP dealership |
| 2 |
250000302 |
Hex Flange Screw M8 X 65, SCOTCH GRIP - Call your local BRP dealership |
| 3 |
233181434 |
Hex. Flange Nut M8 |
| 4 |
705001745 |
LH FOOT PROTECTOR - Call your local BRP dealership |
| 5 |
705001746 |
RH FOOT PROTECTOR - Call your local BRP dealership |
| 6 |
250000284 |
Torx Screw M6 x 25 |
| 7 |
232561434 |
Elastic Stop Nut M6 |
| 8 |
705002373 |
FOOT PROTECTOR BRACKET - Call your local BRP dealership |
| 9 |
250100242 |
Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 10 |
293150023 |
RIVET_POP 1/8 X ,625 - Call your local BRP dealership |
| 11 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 12 |
234062670 |
Stainless Steel Flat Washer |
| 13 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 14 |
232561434 |
Elastic Stop Nut M6 |
| 16 |
704900005 |
WARNING DECAL, PASSENGER - Call your local BRP dealership |
| 17 |
704901365 |
WARNING DECAL, TIRE PRESSURE - Call your local BRP dealership |
| 18 |
704901395 |
Warning Decal Tire Pressure, French |
| 19 |
704900006 |
Warning Decal, Passenger, French |
| 23 |
250000223 |
Torx Screw M6 X 16 |
| 24 |
234062670 |
Stainless Steel Flat Washer |
| 25 |
705004009 |
RADIATOR PROTECTOR ASS'Y - Call your local BRP dealership |
| 26 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 27 |
506151252 |
Washer |
| 28 |
207662534 |
Hex. Flange Screw M6 X 25 |
| 29 |
707000058 |
Spacer |
| 30 |
243141630 |
Hex. Plastic Screw M4.8 X 16 |
| 31 |
705002091 |
FOOT PROTECTOR SUPPORT - Call your local BRP dealership |
| 32 |
250000770 |
Hex. Socket Screw M6 X 20 This part replaces 250000335. |
| 33 |
232561434 |
Elastic Stop Nut M6 |
| 34 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663034. |
| 35 |
233261434 |
Flange Elastic Nut M6 |
| 36 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 37 |
705002769 |
REAR BUMPER - Call your local BRP dealership |
| 38 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip |
| 39 |
705002913 |
CLAMP - Call your local BRP dealership |
| 40 |
705002514 |
LH RADIATOR MOULDING - Call your local BRP dealership |
| 41 |
250000339 |
SOCKET SCREW M6 X 12 - Call your local BRP dealership |
| 42 |
705002515 |
RH RADIATOR MOULDING - Call your local BRP dealership |
| 43 |
250000339 |
SOCKET SCREW M6 X 12 - Call your local BRP dealership |
| 45a |
704901878 |
WARNING DECAL, DEATH AND INJURIES - Call your local BRP dealership |
| 45b |
704900002 |
Warning Decal, Death And Injuries |
| 48 |
704900011 |
Warning Decal, Under 16 Years Old |
| 49 |
704901133 |
WARNING DECAL, PERFORMANCE - Call your local BRP dealership |
| 50 |
704900012 |
Warning Decal, Under 16 Years Old |
| 51 |
704901135 |
Warning Decal, Performance, French |
| 52 |
293150123 |
Pop Rivet 3/16" |
| 53 |
503191273 |
Washer |
| 54 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 55 |
234062670 |
Stainless Steel Flat Washer |
| 59 |
705011222 |
Amber Reflector This part replaces 705002409. |
| 60 |
705011221 |
Red Reflector This part replaces 705002408. |
| 61 |
293450268 |
Insert M5 X 0.8 |
| 62 |
705002859 |
LH Reflector Support |
| 63 |
293150144 |
Stavex Rivet |
| 64 |
705002860 |
RH Reflector Support |
| 65 |
293150144 |
Stavex Rivet |
| 66 |
293450268 |
Insert M5 X 0.8 |
| 67 |
705002911 |
LH SUPPORT - Call your local BRP dealership |
| 68 |
705002912 |
RH SUPPORT - Call your local BRP dealership |
