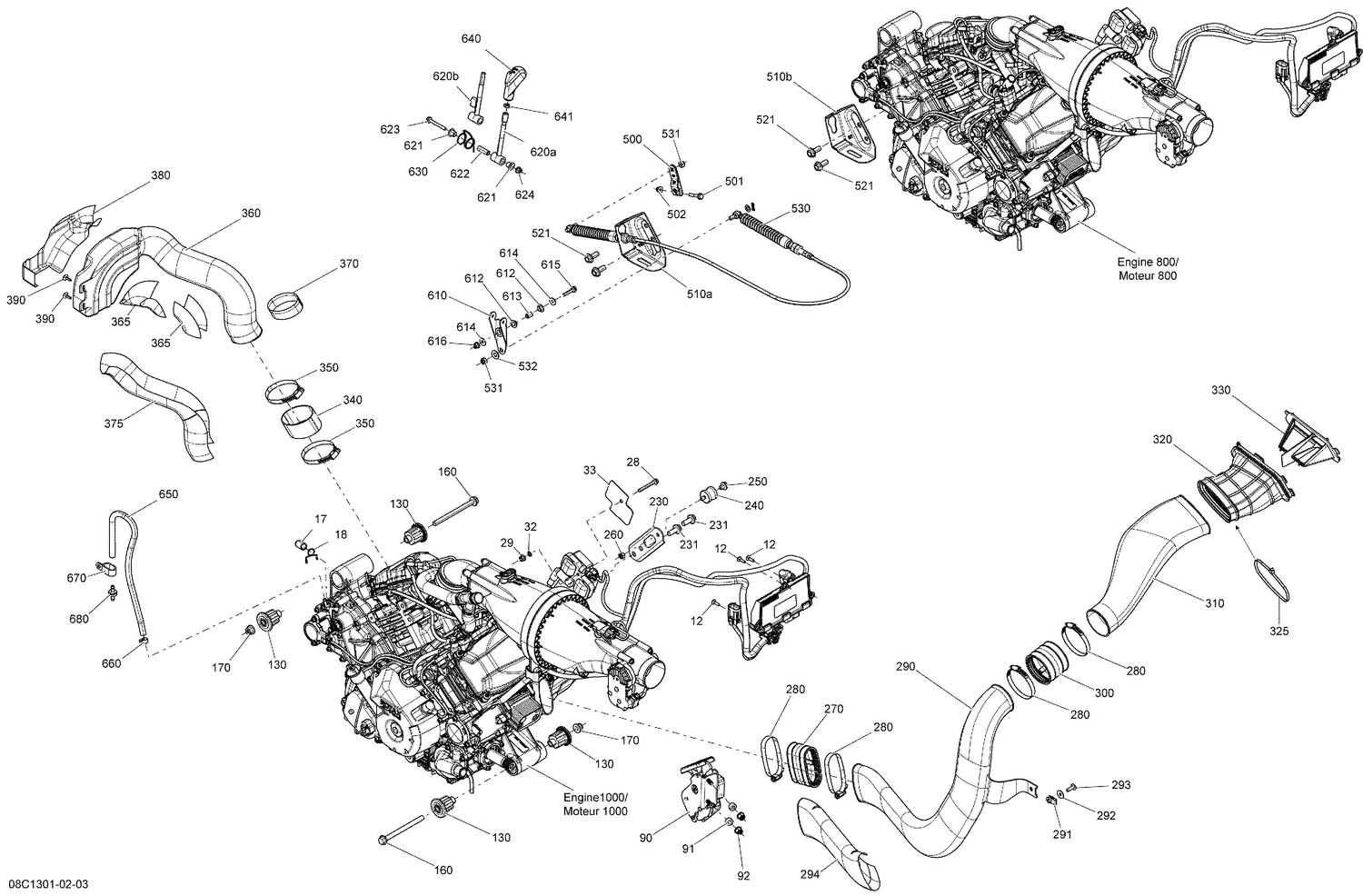

01- Engine
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 12 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 17 | 707001185 | Plug |
| 18 | 707800506 | Retainer Clip |
| 28 | 207665044 | Hex. Flange Screw M6 X 50 |
| 29 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 32 | 234461608 | External Serrated Lock Washer 6 mm |
| 33 | 710000073 | Insulator Pad |
| 90 | 707001166 | Accelerator Pedal |
| 91 | 707000848 | Bushing |
| 92 | 233281414 | Hex. Flange Elastic Nut M8 |
| 130 | 707001169 | Vibration Damper This part replaces 707000426. |
| 160 | 230602546 | Hex. Flange Screw M10 X 125 |
| 170 | 233201436 | Hex. Flange Elastic Nut M10 |
| 230 | 707000707 | Upper Engine Bracket |
| 231 | 207602544 | Hex. Flange Screw M10 X 25 |
| 240 | 707000949 | Rubber Isolator |
| 250 | 207581046 | Flange Screw M8 x 10, Scotch Grip |
| 260 | 232581414 | Hex. Elastic Stop Nut M8 |
| 270 | 707002585 | Flexibale Adaptor This part replaces 707001043. |
| 280 | 293650091 | Norma Clamp |
| 290 | 707000639 | Air Inlet |
| 291 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 292 | 250200082 | Flat Washer |
| 293 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 294 | 707000924 | Reflective Sheet |
| 300 | 707002585 | Flexibale Adaptor This part replaces 707001043. |
| 310 | 707000909 | Primary Air Intake |
| 320 | 707000908 | Adaptor |
| 325 | 293750008 | Tie Wrap 368 mm |
| 330 | 707001344 | CVT Filter |
| 340 | 707000789 | Adaptor |
| 350 | 293650118 | Norma Gear Clamp |
| 360 | 707000640 | CVT Air Outlet |
| 365 | 707000991 | Reflective Sheet |
| 370 | 707000988 | Reflector |
| 375 | 707000989 | Reflective Sheet |
| 380 | 707000990 | Reflective Sheet |
| 390 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 500 | 707000911 | Lever |
| 501 | 207663544 | Hex. Flange Screw M6 X 35 |
| 502 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 510a | XXX | Not Available As Spare Parts |
| 510b | 707000921 | Cable Support |
| 521 | 207602544 | Hex. Flange Screw M10 X 25 |
| 530 | 707000775 | Shifting Cable |
| 531 | 232581414 | Hex. Elastic Stop Nut M8 |
| 532 | 234001410 | Flat Washer 10 mm |
| 610 | 707000828 | Lower Lever Arm |
| 612 | 707000847 | Flanged Bushing |
| 613 | 707000801 | Bushing |
| 614 | 234062410 | Flat Washer 6 mm |
| 615 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 616 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 621 | 707000869 | Flanged Bushing |
| 622 | 707001376 | Bushing This part replaces 707000868. |
| 623 | 207665044 | Hex. Flange Screw M6 X 50 |
| 624 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 630 | 707000750 | Lever Arm Spring |
| 640 | 707000284 | Lever Handle |
| 641 | 232180491 | Hex. Jam Nut M8 |
| 650 | 219704549 | Hose This part replaces 219704439. |
| 660 | 414415200 | Spring Clamp |
| 670 | 709000057 | Open Clamp |
