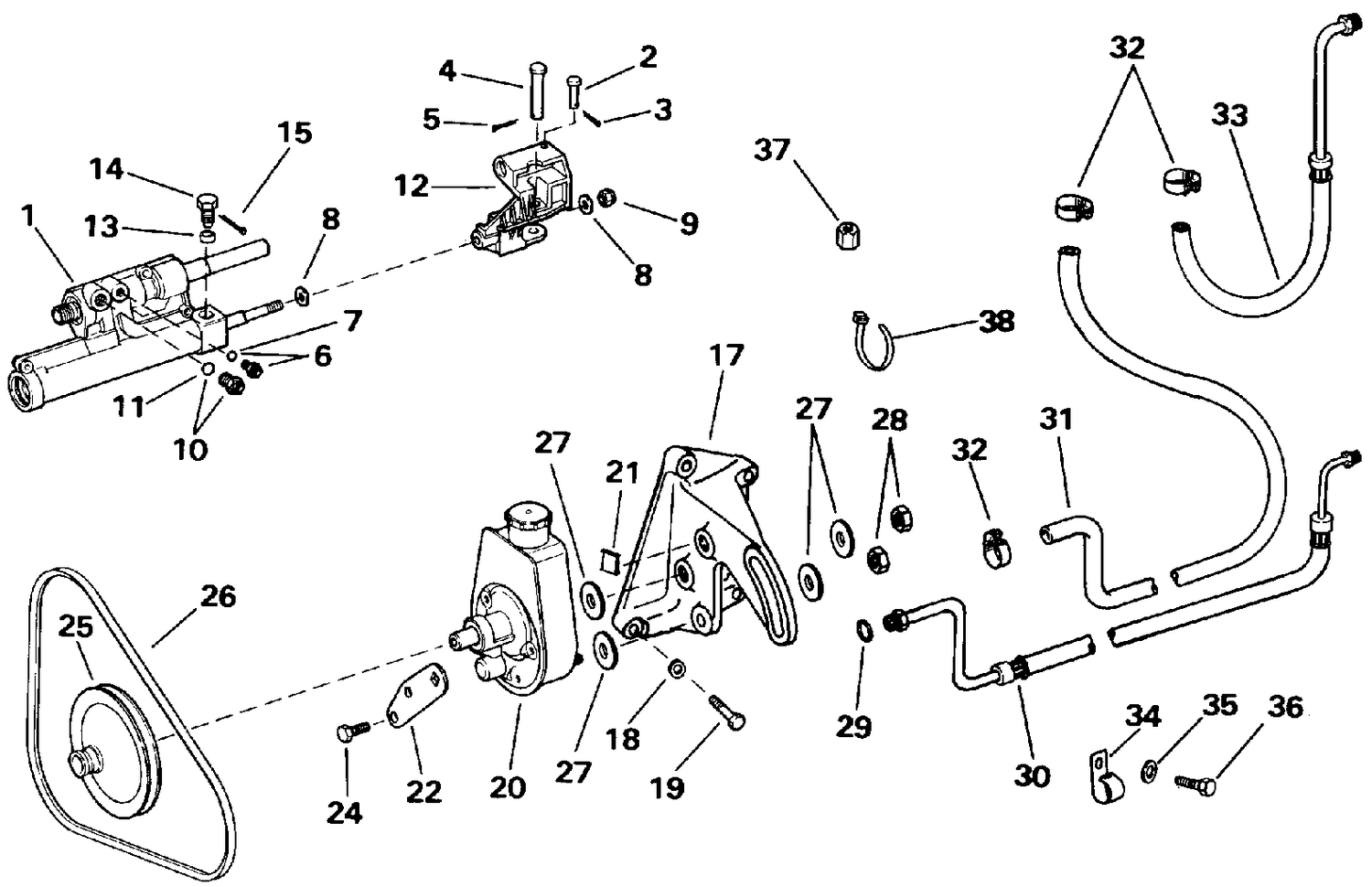

| Ref | Part Number | Description |
|---|
| 1 |
3850244 |
CYLINDER & VALVE This part replaces 0986750. |
| 2 |
3853307 |
PIN, Steering cable to clevis This part replaces 0914666. |
| 4 |
3853308 |
PIN, Steering arm to clevis This part replaces 0914667. |
| 6 |
3853993 |
FITTING & O-RING This part replaces 0986583. |
| 7 |
3852587 |
O-RING This part replaces 0912222. |
| 8 |
3853305 |
WASHER This part replaces 0914664. |
| 9 |
3853306 |
NUT This part replaces 0914665. |
| 10 |
3853994 |
FITTING & O-RING This part replaces 0986584. |
| 12 |
3850251 |
CLEVIS This part replaces 0914663. |
| 13 |
3852582 |
BUSHING This part replaces 0912013. |
| 14 |
3850931 |
BOLT, Steering anchor This part replaces 0911879. |
| 15 |
3853376 |
COTTER PIN, Steering anchor This part replaces 0914943. |
| 17 |
0915632 |
BRACKET, Steering pump mtg. |
| 18 |
0915501 |
WASHER, Block |
| 19 |
0915393 |
BOLT, Bracket, steer. pump mtg. |
| 20 |
0987688 |
POWER STEERING PUMP |
| 21 |
0915919 |
PLATE, Anti-friction |
| 22 |
3853327 |
BRACE, Belt adjustment This part replaces 0914768. |
| 24 |
3853405 |
SCREW, Adjustment bracket This part replaces 0915014. |
| 25 |
3853804 |
PULLEY, Steering pump This part replaces 0983839. |
| 26 |
3853536 |
BELT, Alternator This part replaces 0915699. |
| 27 |
0915635 |
WASHER, Pump to bracket |
| 28 |
0915636 |
NUT, Pump to bracket |
| 29 |
3852497 |
O-RING, Pressure hose This part replaces 0910321. |
| 30 |
3853967 |
HOSE, Pump to valve, pressure This part replaces 0986350. |
| 31 |
0915296 |
HOSE, Cooler to pump, return |
| 32 |
0916044 |
CLAMP, Power steering hoses |
| 33 |
3854056 |
HOSE, Cyl. to oil cooler, return This part replaces 0987044. |
| 34 |
0910210 |
CLAMP |
| 35 |
0915506 |
WASHER, Clamp |
| 36 |
0915601 |
BOLT, Clamp |
| 37 |
3853315 |
FITTING, Steering hose plug This part replaces 0914728. |
