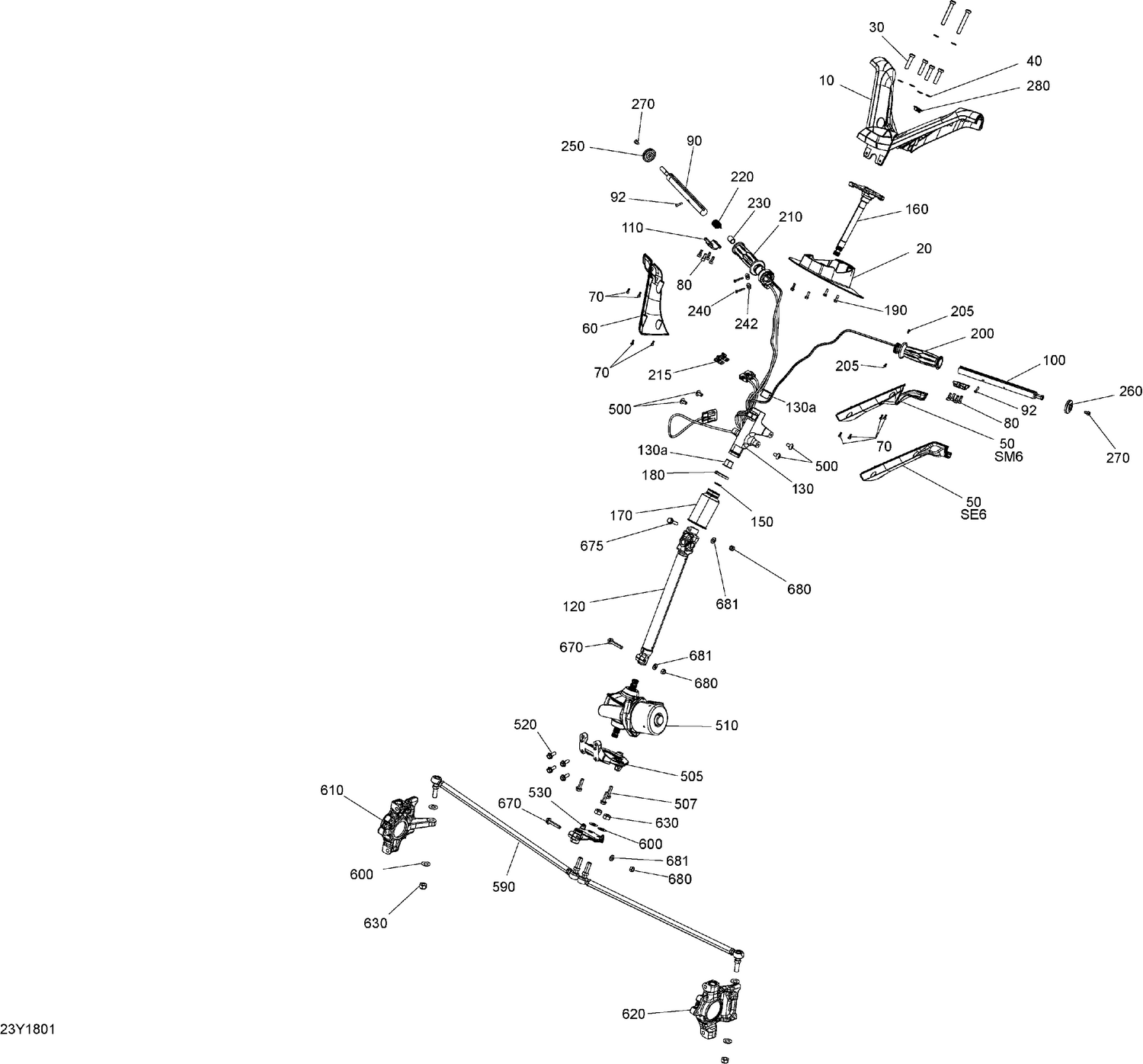

| Ref | Part Number | Description |
|---|
| 10 |
709401919 |
Carbon Black, Handlebar, Texture This part replaces 709401194. |
| 20 |
709400579 |
Handlebar Central Cover |
| 30 |
250000997 |
Thin Socket Screw, Scotch Grip, M10 |
| 40 |
250200105 |
Stainless Flat Washer, 10 mm |
| 60 |
709400578 |
RH Steering Cover |
| 70 |
205041054 |
Screw-Socket Hd.DIN.912 |
| 80 |
205561644 |
Socket Screw M6 X 16, Scotch Grip |
| 90 |
709401938 |
Handlebars |
| 92 |
250000494 |
Socket Screw, M4 X 16 Scotch Grip |
| 100 |
709401951 |
LH Handlebars |
| 110 |
709400631 |
Handlebar Clamp |
| 120 |
709401777 |
Lower Steering Column |
| 130a |
709402725 |
Steering Bushing This part replaces 415108000. |
| 150 |
709000089 |
O-Ring |
| 160 |
709401682 |
Steering Colum, Black |
| 170 |
709400790 |
Bellows |
| 180 |
414115200 |
Tie-Rap 180 mm |
| 190 |
210251650 |
Hex. Forming Screw M5 X 16 |
| 200 |
709400625 |
Heating Handle Grip |
| 205 |
250000453 |
Torx Cutting Screw, M4 X 10 |
| 210 |
709402720 |
Heated Throttle Grip This part replaces 709400929. |
| 215 |
515175283 |
Housing Support |
| 220 |
709401937 |
Spring |
| 230 |
709401801 |
Bushing |
| 240 |
205042594 |
Socket Screw, M4 X 25 |
| 242 |
234040600 |
Flat Washer 4 mm |
| 250 |
709401800 |
Handlebar End-Piece RH |
| 260 |
709400793 |
Handlebar End Piece LH |
| 270 |
205061054 |
Screw-Socket Hd.Din.912 |
| 280 |
709400923 |
Deep Black Cap |
| 500 |
250000751 |
Torx Screw M8 X 16 |
| 507 |
207583044 |
Hex. Flange Screw M8 X 30, Scotch Grip |
| 510 |
709402304 |
Power Steering Asssembly This part replaces 709402258. |
| 520 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 530 |
709401760 |
Pitman Arm |
| 590 |
709401821 |
Tie Rod Ass'y |
| 600 |
706200281 |
Hardened Washer This part replaces 250200086. |
| 610 |
709401864 |
RH Knuckle |
| 620 |
709401865 |
LH Knuckle |
| 630 |
250100089 |
Hex. Elastic Hex. Nut M12 |
| 670 |
250001021 |
Hex. Flange Screw M8 X 35 This part replaces 207583587. |
| 680 |
232081417 |
Hex. Nut M8 |
