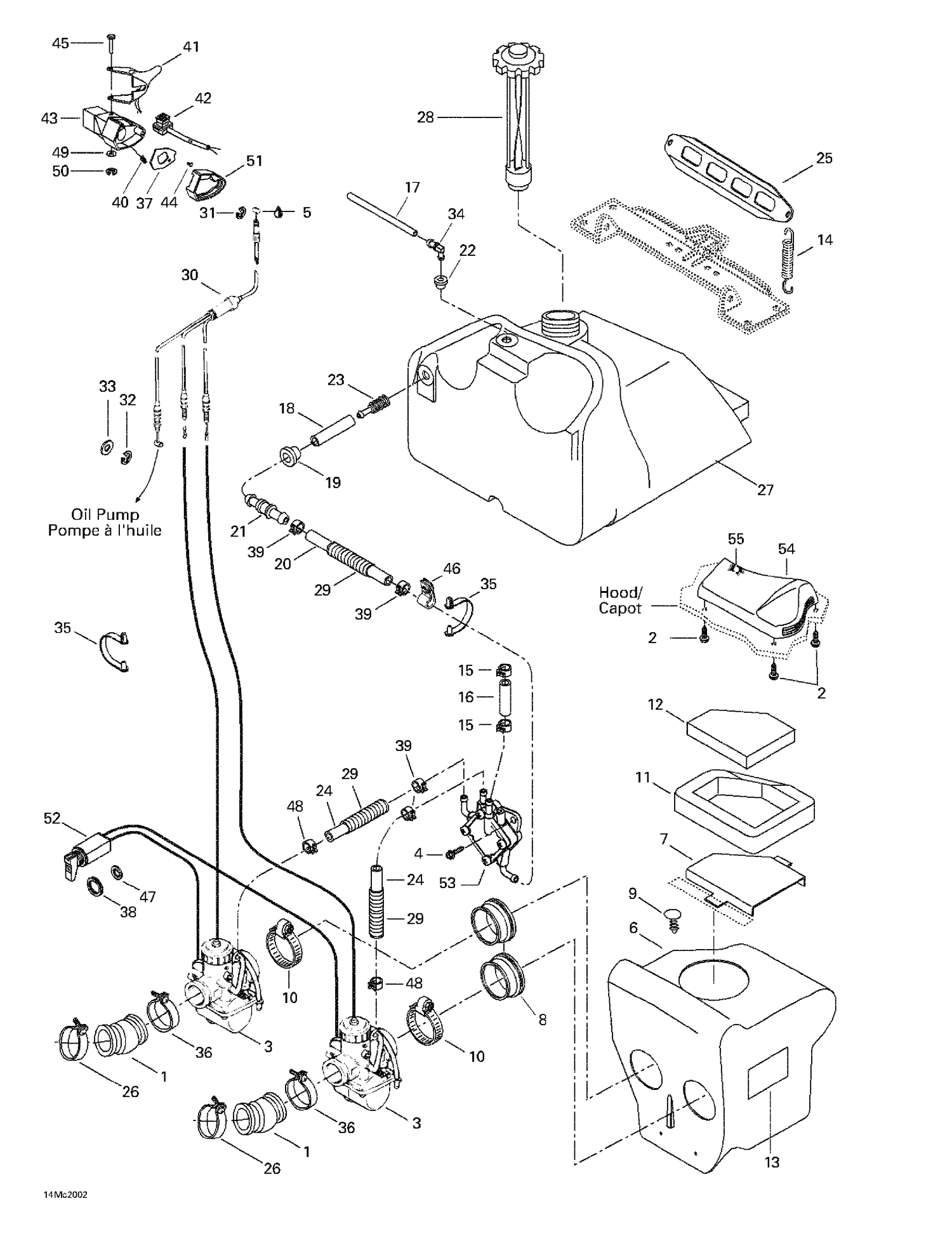

02- Fuel System
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 570066800 | CARBURATOR ADAPTOR - Call your local BRP dealership |
| 2 | 243141630 | Hex. Plastic Screw M4.8 X 16 This part replaces 243141640. |
| 3 | 403138601 | Carburetor VM 34 547 (PTO) |
| 4 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 5 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 7 | 517285900 | Intake Grill |
| 8 | 570043600 | Adaptor 34 mm |
| 9 | 414644300 | Black, Dart |
| 10 | 408801600 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 11 | 415106000 | Lower Foam |
| 12 | 415037600 | Air Filter |
| 13 | 516002715 | CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516000130. |
| 14 | 517182100 | SPRING - Call your local BRP dealership |
| 15 | 414415200 | Spring Clamp |
| 16 | 219704549 | Hose This part replaces 219704439. |
| 17 | 219704709 | NEEDS DESCRIPTION This part replaces 219704409. |
| 18 | Not | Available As Spare Part - Fuel Line |
| 19 | 570045500 | Grommet |
| 20 | 219704410 | Polyurethane Hose 10000Mm Long |
| 21 | 414518500 | Male Connector |
| 22 | 709200285 | Grommet This part replaces 570135100. |
| 23 | 414865700 | Fuel Filter |
| 24 | 219704410 | Polyurethane Hose 10000Mm Long |
| 25 | 517249200 | Fuel Tank Bracket |
| 26 | 414532700 | COLLAR - Call your local BRP dealership |
| 27 | 572093100 | Fuel Tank |
| 28 | 415074400 | Fuel Tank Cap |
| 29 | 219704407 | Tubing 10 MM 1000MM Long |
| 30 | 414883100 | THROTTLE CABLE AND HOUSING - Call your local BRP dealership |
| 31 | 414274500 | Circlip |
| 32 | 414753500 | Circlip |
| 33 | 234081100 | Flat Washer 8 mm, Nylon This part replaces 414753300. |
| 34 | 414814100 | Male Connector |
| 35 | 414379300 | CABLE CLIP - Call your local BRP dealership |
| 36 | 408803800 | Gear Clamp (47 mm) |
| 37 | 512060390 | Plate This part replaces 572099400. |
| 38 | 512059364 | NUT-PLASTIC - Call your local BRP dealership This part replaces 414977200. |
| 39 | 414554800 | Spring Clamp |
| 40 | 414440800 | Socket Set Screw M8 X 10 |
| 41 | 512060214 | Handle Ass'y This part replaces 512059144. |
| 42 | 515177362 | Emergency Stop Switch This part replaces 512059146. |
| 43 | 512060603 | Throttle Housing This part replaces 572086700. |
| 44 | 414473200 | Screw |
| 45 | 414438700 | Lever Pin |
| 46 | 415018200 | CLIP - Call your local BRP dealership |
| 47 | 394103300 | Lock Washer, Interior Teeth |
| 48 | 414420700 | Spring Clamp |
| 49 | 234051600 | Flat Washer M5, Stainless This part replaces 414438900. |
| 50 | 414439000 | Circlip |
| 51 | 572044600 | THROTTLE COVER - Call your local BRP dealership |
| 52 | 414967000 | CHOKE CABLE - Call your local BRP dealership |
| 53 | 403801000 | Fuel Pump |
| 54 | 572077900 | INTAKE COVER - Call your local BRP dealership |
| 403138602 | Carburetor | VM 34 548 (MAG) 403138602 |
