| Ref | Part Number | Description |
|---|
| 1 |
5004929 |
CYLINDER & CRANKCASE Assy |
| 13 |
3010674 |
ENGINE TEMPERATURE SENSOR |
| 16 |
0344789 |
HOSE, ECU to 30ø fitting |
| 17 |
0338632 |
Thermostat Cover |
| 18 |
0585038 |
TEMPERATURE SWITCH, Starboard |
| 23 |
HOSE, |
Tee to block, 2 in. (50mm) (Connect to #10 - Secure with #57) |
| 25 |
0330935 |
BAGUE, retenue de la tige du levier de sens de marche |
| 28 |
0433817 |
ENSEMBLE LEVIER, tige de commande de sens de marche |
| 29 |
5004323 |
ENSEMBLE SUPPORT CAOUTCHOUC, supérieur |
| 31 |
5001560 |
CYLINDER HEAD, Sbbd. |
| 34 |
0330933 |
SCREW, reverse lock link |
| 35 |
0343118 |
LIAISON, levier vers bras de commande de sens de marche |
| 37 |
0306012 |
BOW WASHER |
| 38 |
0336136 |
CLAMP |
| 41 |
0202026 |
LOCK WASHER, Stud |
| 42 |
0436902 |
LEVIER DE SENS DE MARCHE |
| 44 |
0349060 |
CACHE, tourillon |
| 45 |
0340734 |
BUSHING, Shift arm |
| 47 |
5000470 |
SHIFT SHAFT & ARM Assy |
| 48 |
0349061 |
TOURILLON |
| 49 |
0435491 |
THERMOSTAT |
| 50 |
0338174 |
RESSORT, thermostat |
| 51 |
0328733 |
RONDELLE ÉLASTIQUE, levier de sens de marche |
| 53 |
0439953 |
BAGUE & INSERT, détente d'échappement |
| 55 |
0335316 |
JOINT, tige de commande de sens de marche |
| 56 |
0436857 |
BOUCHON & GICLEUR, indicateur d'éjection |
| 57 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 58 |
0335521 |
BAGUE, levier de sens de marche vers bloc |
| 59 |
0343881 |
NIPPLE, Lower drain |
| 60 |
0324677 |
JOINT TORIQUE, mamelon, vidange inférieure |
| 61 |
0310947 |
CLAMP |
| 62 |
0329513 |
SCREW, Float bowl |
| 63 |
0301967 |
O RING |
| 64 |
5001559 |
CYLINDER HEAD, Port |
| 65 |
0339066 |
SCREW, Cylinder head |
| 66 |
0349557 |
MOUNT |
| 67 |
0349556 |
Washer |
| 68 |
0330263 |
SCREW, Mounting, 3/8 in. X 3.50 in. |
| 69 |
HOSE, |
Cylinder block vent to tee, 16 in. (406mm) (Secure with #57) |
| 70 |
0330474 |
T 30°, flexibles de retour d'eau |
| 72 |
0360761 |
RETAINER, Upper mount This part replaces 0340418. |
| 73 |
0787129 |
POWERHEAD GASKET SET |
| 76 |
HOSE, |
Upper bearing vent to check valve, 6 in. (152mm) |
| 77 |
0343398 |
FLEXIBLE, bague de silencieux vers bloc |
| 79 |
HOSE, |
Upper Stbd brg vent to Strb intake mfld, 9 in. (229mm) |
| 80 |
0434927 |
SOUPAPE DE RETENUE |
| 81 |
HOSE, |
Lower bearing vent to check valve, 4 1/2 in. (114mm) |
| 82 |
0345537 |
CLAMP, Fuel tube assy |
| 83 |
5001769 |
CHECK VALVE, Transfer drain - Port |
| 84 |
5001551 |
FITTING, Exhaust pressure |
| 85 |
0346527 |
GASKET, Exhaust fitting |

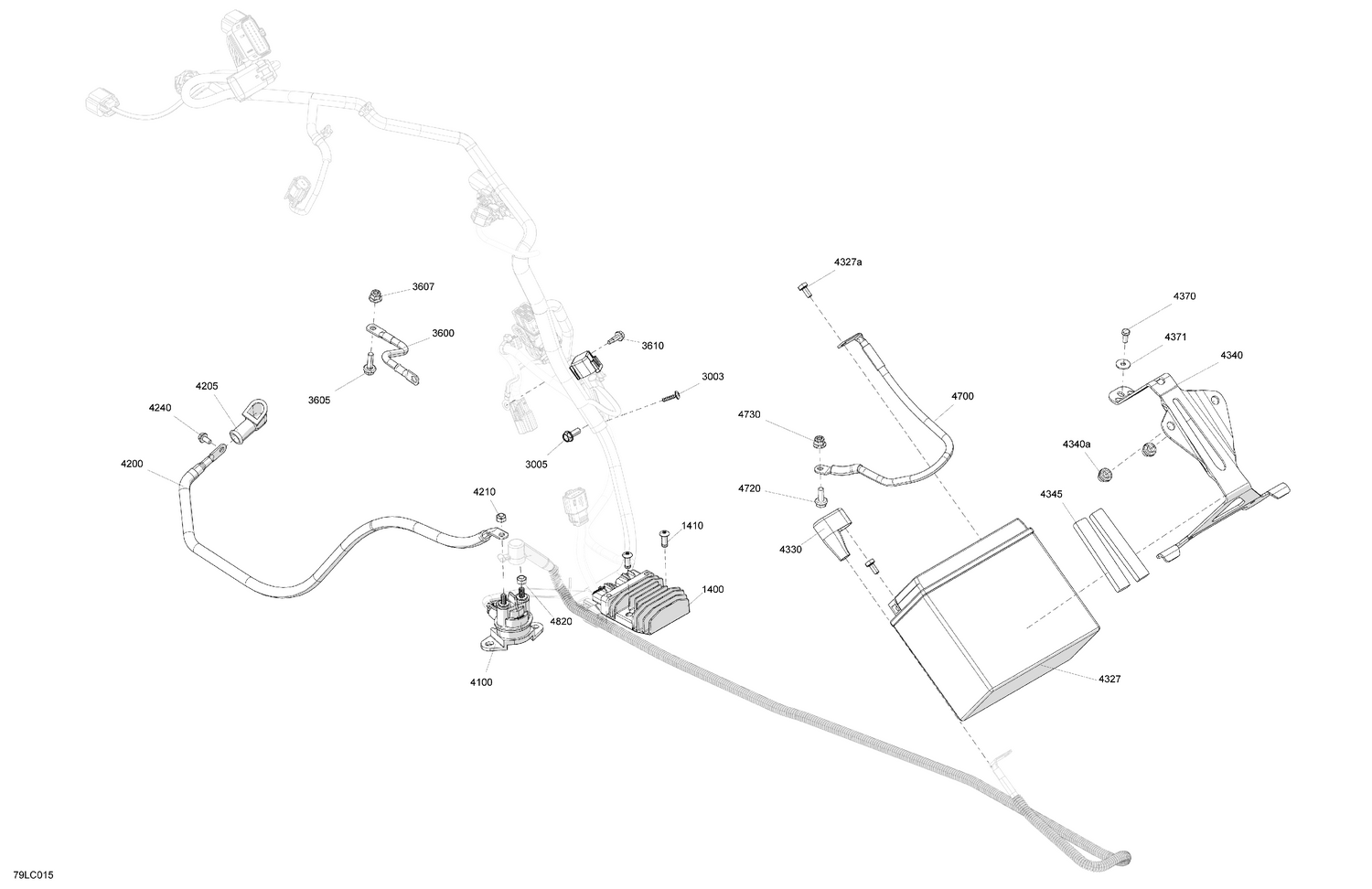

| 1400 |
710010539 |
Voltage Regulator This part replaces 710005569. |
| 1410 |
293150182 |
Monobolt Rivet 6.4 |
| 3003 |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 3005 |
250001062 |
Hex. Flanged Screw M6 X 16 |
| 3600 |
515178248 |
Ground Wire |
| 3605 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 3607 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 3610 |
250000911 |
Hex. Flange Screw M5 X 16 |
| 4100 |
278003012 |
Starter Relay |
| 4200 |
515178919 |
Positive Cable |
| 4205 |
710000495 |
Protector Cap |
| 4210 |
232561434 |
Elastic Stop Nut M6 |
| 4240 |
207551044 |
Hex. Flange Screw M5 X 10 |
| 4327a |
250000282 |
Battery Bolt Kit |
| 4330 |
710001817 |
Protector Cap |
| 4340a |
293450275 |
Insert |
| 4345 |
517305157 |
Seal Joint |
| 4370 |
207151244 |
Hex. Screw M5 X 12 |
| 4371 |
391301600 |
Washer |
| 4700 |
515178155 |
Ground Wire |
| 4720 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 4730 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 4820 |
232561434 |
Elastic Stop Nut M6 |
