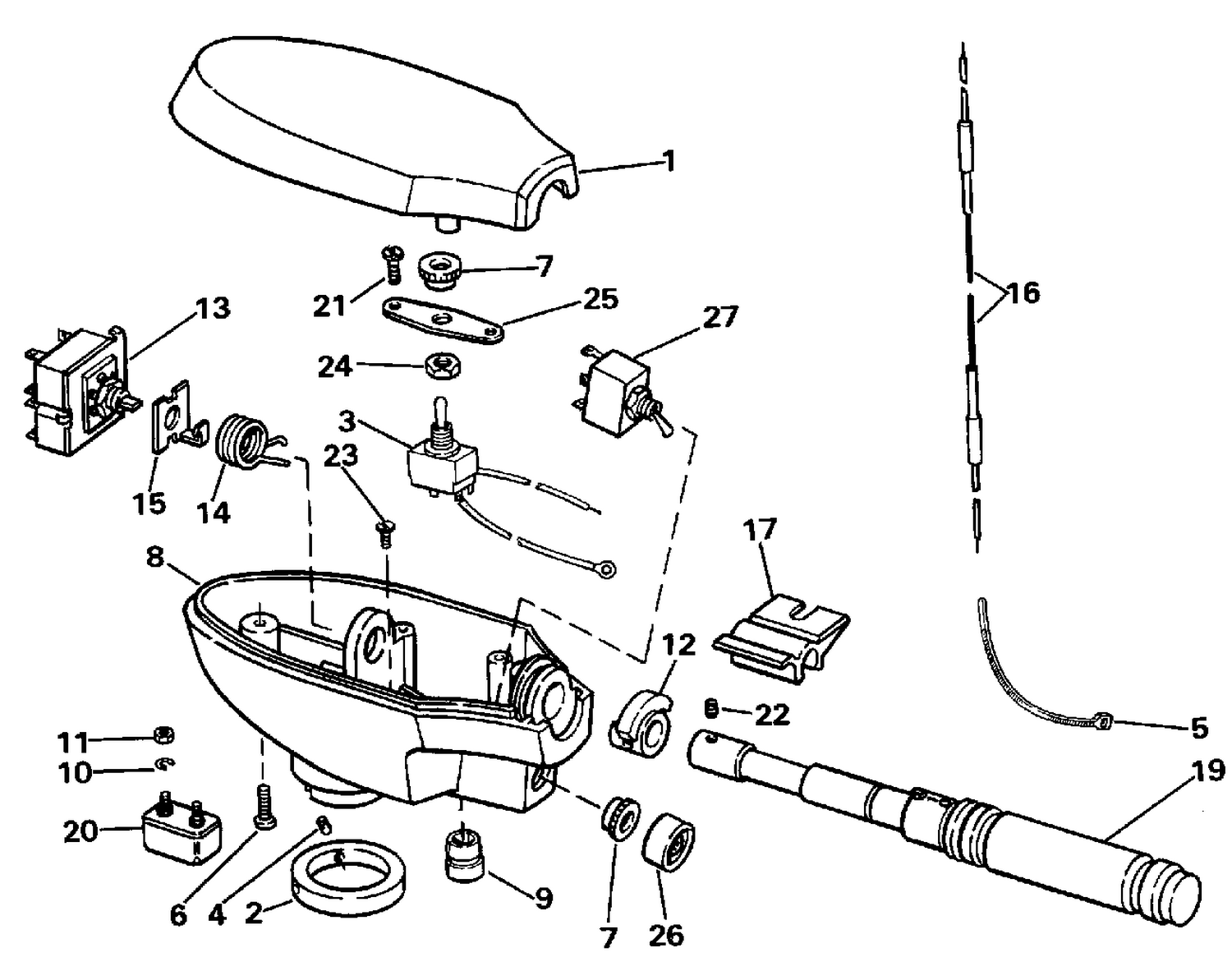

| Ref | Part Number | Description |
|---|
| 1 |
0328962 |
COVER ASSEMBLY |
| 2 |
0328961 |
RETAINING RING, Motor tube |
| 3 |
0582609 |
REVERSE SWITCH & LEAD ASSY |
| 4 |
0328971 |
SET SCREW, Retaining ring |
| 6 |
0327277 |
SCREW, Cover to steering housing |
| 8 |
0328963 |
STEERING HOUSING |
| 8 |
0328964 |
STEERING HOUSING |
| 9 |
0326874 |
BUSHING, Strain relief |
| 12 |
0333097 |
STOP, Speed control |
| 13 |
0396487 |
ROTARY SWITCH ASSY. |
| 14 |
0331708 |
SPRING, Rotary switch |
| 15 |
0331709 |
RETAINER, Return spring |
| 16 |
0582606 |
RESISTANCE WIRE |
| 17 |
0328965 |
LEVER, Handle to switch |
| 19 |
0396489 |
CONTROL SHAFT & GRIP |
| 19 |
0431757 |
CONTROL SHAFT & GRIP, 24v |
| 20 |
0512218 |
CIRCUIT BREAKER |
| 21 |
0327277 |
SCREW, Cover to steering housing |
| 22 |
0329214 |
SET SCREW, Handle to switch |
| 22 |
0333231 |
SET SCREW |
| 23 |
0329182 |
VIS, borne |
| 25 |
0512358 |
BRACKET SWITCH |
| 27 |
0392219 |
SPEED SELECTOR SWITCH |
| 0211381 |
0211381 |
OWNERS MANUAL Ev. |
| 0283538 |
0283538 |
DECAL SET, Evinrude |
| 0432284 |
0432284 |
DECAL SET, Johnson |
| 0432991 |
0432991 |
OWNERS MANUAL |
| 0432994 |
0432994 |
OWNERS MANUAL, Jo. |
