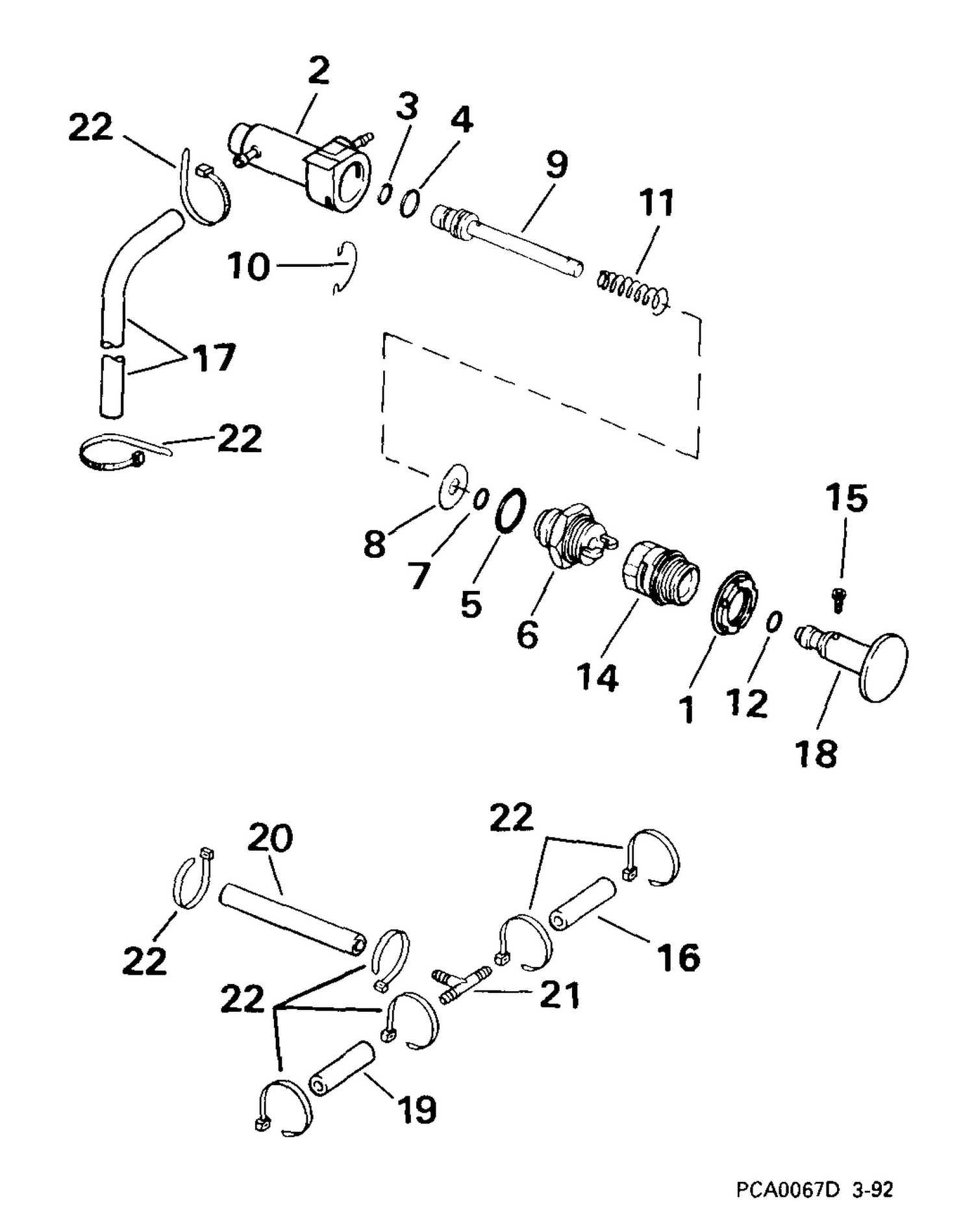

PRIMER SYSTEM -- MANUAL START
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0329670 | NUT |
| 2 | 5007336 | Kit Ay This part replaces 0432142. |
| 12 | 0330992 | JOINT TORIQUE, bouton |
| 14 | 0334364 | SCREW, Power knob |
| 15 | 0329054 | SCREW |
| 16 | HOSE, | Tee to lower carb., 3 in. (76mm) |
| 17 | HOSE, | Primer inlet to lower carb., 5 1/2 in. (140mm) |
| 18 | 0334365 | KNOB |
| 19 | HOSE, | Tee to upper carb., 3 in. (76mm) |
| 20 | HOSE, | Primer pump to tee, 7 in. (178mm) |
| 21 | 0325569 | T, amorçage |
