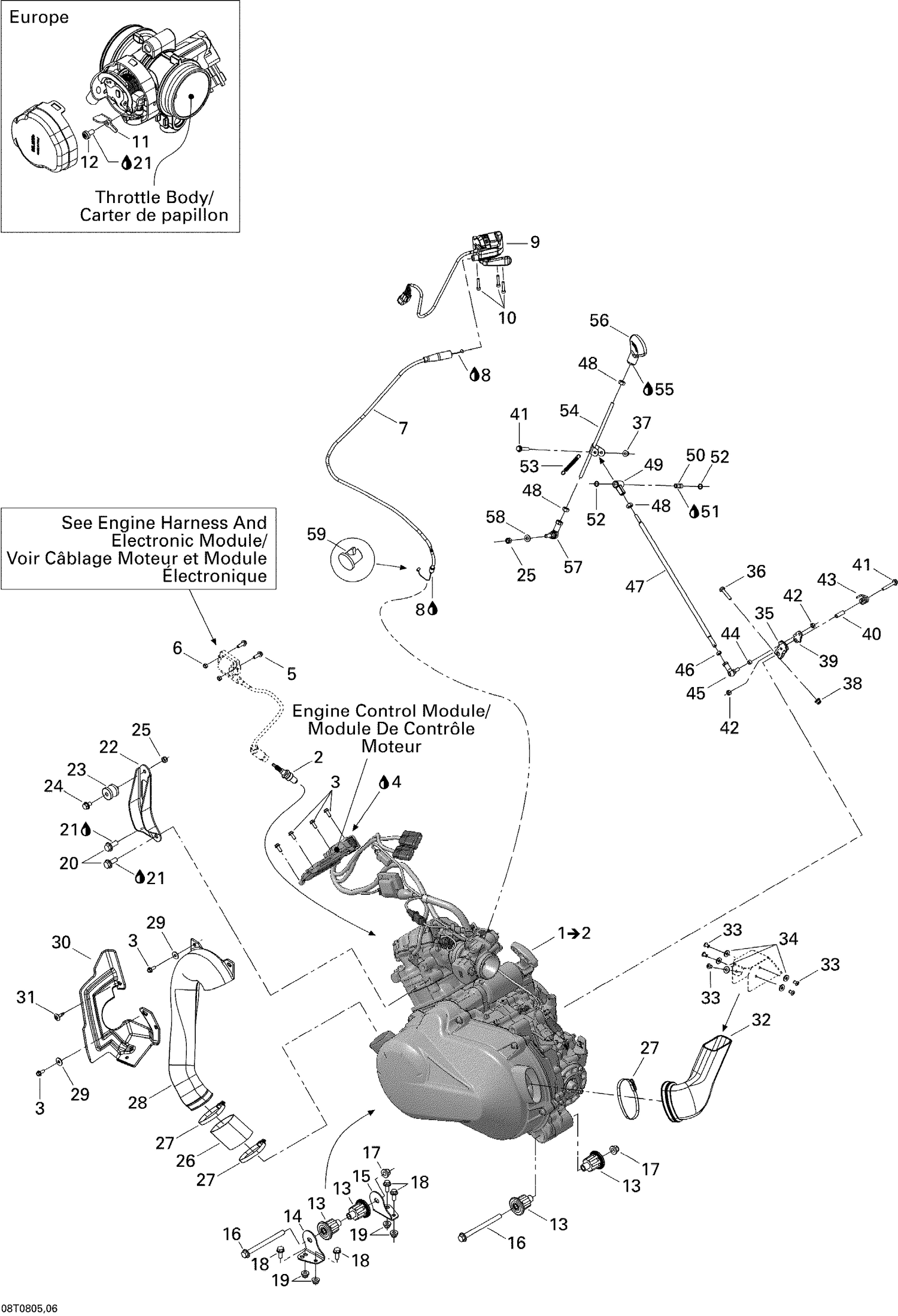

| Ref | Part Number | Description |
|---|
| 2 |
715900637 |
Spark Plug NGK DCPR8E This part replaces 707000246. |
| 3 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 4 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 5 |
207142544 |
Hex. Screw M4 X 25 |
| 6 |
232541414 |
Elastic Stop Nut M4 |
| 7 |
707000539 |
THROTTLE CABLE - Call your local BRP dealership |
| 8 |
293600041 |
CABLE LUBRICANT, 400 G - Call your local BRP dealership |
| 9 |
707000595 |
Throttle Handle |
| 10 |
205052588 |
Socket Head Screw M5 X 25 |
| 13 |
707001170 |
Anti Vibration Buffer This part replaces 707000655. |
| 14 |
707000802 |
ENGINE BRACKET - Call your local BRP dealership This part replaces 707000364. |
| 15 |
707000803 |
ENGINE BRACKET - Call your local BRP dealership This part replaces 707000396. |
| 16 |
230602546 |
Hex. Flange Screw M10 X 125 |
| 17 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 18 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 19 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 20 |
207602544 |
Hex. Flange Screw M10 X 25 |
| 21 |
293800060 |
Loctite 243, 10 ml |
| 22 |
707000224 |
UPPER ENGINE BRACKET - Call your local BRP dealership |
| 23 |
707000949 |
Rubber Isolator This part replaces 274000839. |
| 24 |
207581046 |
Flange Screw M8 x 10, Scotch Grip |
| 25 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 26 |
707000154 |
FLEXIBLE ADAPTOR - Call your local BRP dealership |
| 27 |
293650091 |
Norma Clamp |
| 28 |
707000540 |
AIR INTAKE - Call your local BRP dealership |
| 29 |
250200082 |
Flat Washer |
| 30 |
707000697 |
CVT WATER DEFLECTOR - Call your local BRP dealership |
| 31 |
414745900 |
Tuflock Phillips Plastic Screw |
| 32 |
707000718 |
AIR OUTLET - Call your local BRP dealership This part replaces 707000541. |
| 33 |
390402200 |
Pop Rivet 3/16" |
| 34 |
234051410 |
Flat Washer M5 |
| 35 |
707000503 |
Lever |
| 36 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 37 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 38 |
233061414 |
Hex. Flange Nut M6 |
| 39 |
707000507 |
Pivot Plate |
| 40 |
293900079 |
Bushing |
| 41 |
207664044 |
Hex. Flange Screw M6 X 40 |
| 42 |
232561414 |
Elastic Stop Nut M6 |
| 43 |
707000310 |
Spring |
| 44 |
293900104 |
Bushing This part replaces 293900029. |
| 45 |
707000545 |
LH BALL JOINT - Call your local BRP dealership |
| 46 |
232066414 |
LH HEX. NUT M6 - Call your local BRP dealership |
| 47 |
707000567 |
Threaded Rod |
| 48 |
232081414 |
Hex. Nut M8 |
| 49 |
707000568 |
PIVOT - Call your local BRP dealership |
| 50 |
293900075 |
Bushing |
| 51 |
293550010 |
Synthetic Grease, 400 G |
| 52 |
414583300 |
O-RING - Call your local BRP dealership |
| 53 |
707000569 |
Spring |
| 54 |
707000786 |
Lever Arm This part replaces 707000570. |
| 55 |
293800060 |
Loctite 243, 10 ml |
| 56 |
707000284 |
Lever Handle |
| 57 |
707001959 |
RH Ball Joint This part replaces 707000546. |
| 58 |
234081410 |
Flat Washer 8 mm |
| 59 |
409014200 |
CLIP - Call your local BRP dealership |
| 60 |
270000141 |
Clip |
