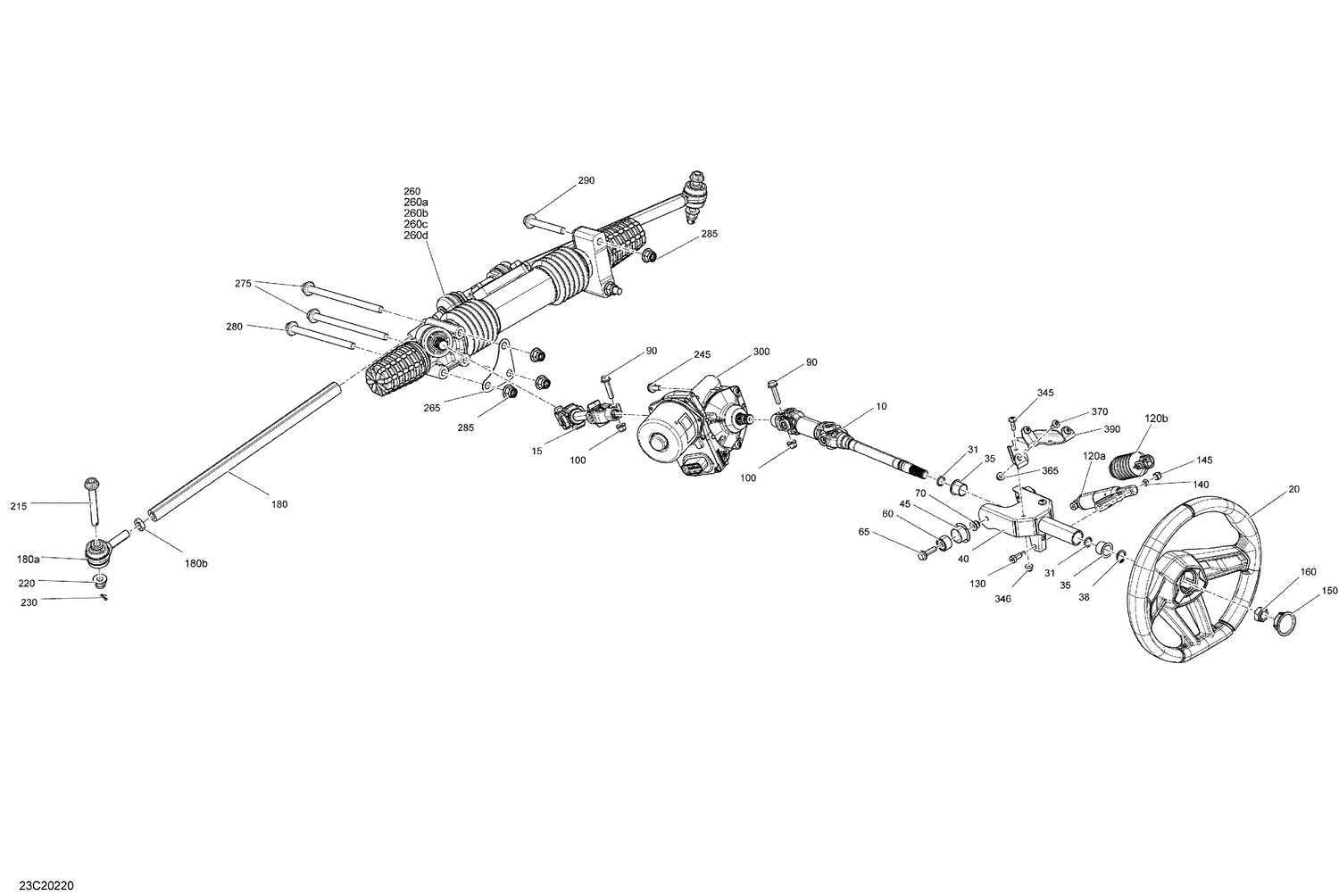

07- Steering
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 709402618 | Steering Column Ass'y This part replaces 709402127. |
| 15 | 709402752 | Lower Steering Axle Ass'y This part replaces 709401721. |
| 20 | 709401706 | Steering Wheel |
| 31 | 293300144 | O-Ring |
| 35 | 709402725 | Steering Bushing This part replaces 709401733. |
| 38 | 293370110 | Circlip |
| 40 | 709401602 | Steering Support |
| 45 | 709401603 | Bushing |
| 60 | 709401604 | Bushing |
| 65 | 207683044 | Hex. Flange Screw M8 X 30 |
| 70 | 233281416 | Hex. Elastic Flange Nut M8 |
| 90 | 250001021 | Hex. Flange Screw M8 X 35 |
| 100 | 233281416 | Hex. Elastic Flange Nut M8 |
| 120a | 709402506 | Adjustment Cylinder This part replaces 709402419. |
| 120b | 709401232 | Boot Tube Side |
| 130 | 250000669 | Socket Head Screw M8 X 16 |
| 140 | 232561414 | Elastic Stop Nut M6 |
| 145 | 269500806 | Cap |
| 150 | 709401514 | Steering Cap |
| 160 | 232511414 | Elastic Lock Nut M16 |
| 180a | 709401703 | Ball Joint |
| 180b | 232170411 | Hex. Jam Nut M14 |
| 215 | 250000864 | Hex Cap Screw M12 X 95 |
| 220 | 233221416 | Elastic Flange Nut M12 |
| 230 | 211400017 | Cotter Pin |
| 245 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 260a | 703500958 | Kit Rack And Pinion End |
| 260b | 703500959 | Mounting Bracket Kit |
| 260c | 715900238 | Steering Rod Nut |
| 260d | 715900488 | Tie Rod end |
| 265 | 709402975 | Plate This part replaces 709401842. |
| 275 | 250000863 | Screw Hex Cap M12 X 190 |
| 280 | 250000875 | Screw Hex Cap M12 X 160 |
| 285 | 233221466 | Elastic Flange Nut M12 |
| 290 | 250000859 | Flange Screw M12 X 85 |
| 300 | 709403211 | Power Steering Ass'y This part replaces 709402428. |
| 345 | 250000712 | Torx Screw M6 X 20 |
| 346 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 365 | 233161464 | Hex. Elastic Flange Nut M6 |
| 370 | 250000721 | Torx Truss Screw M6 X 16 |
