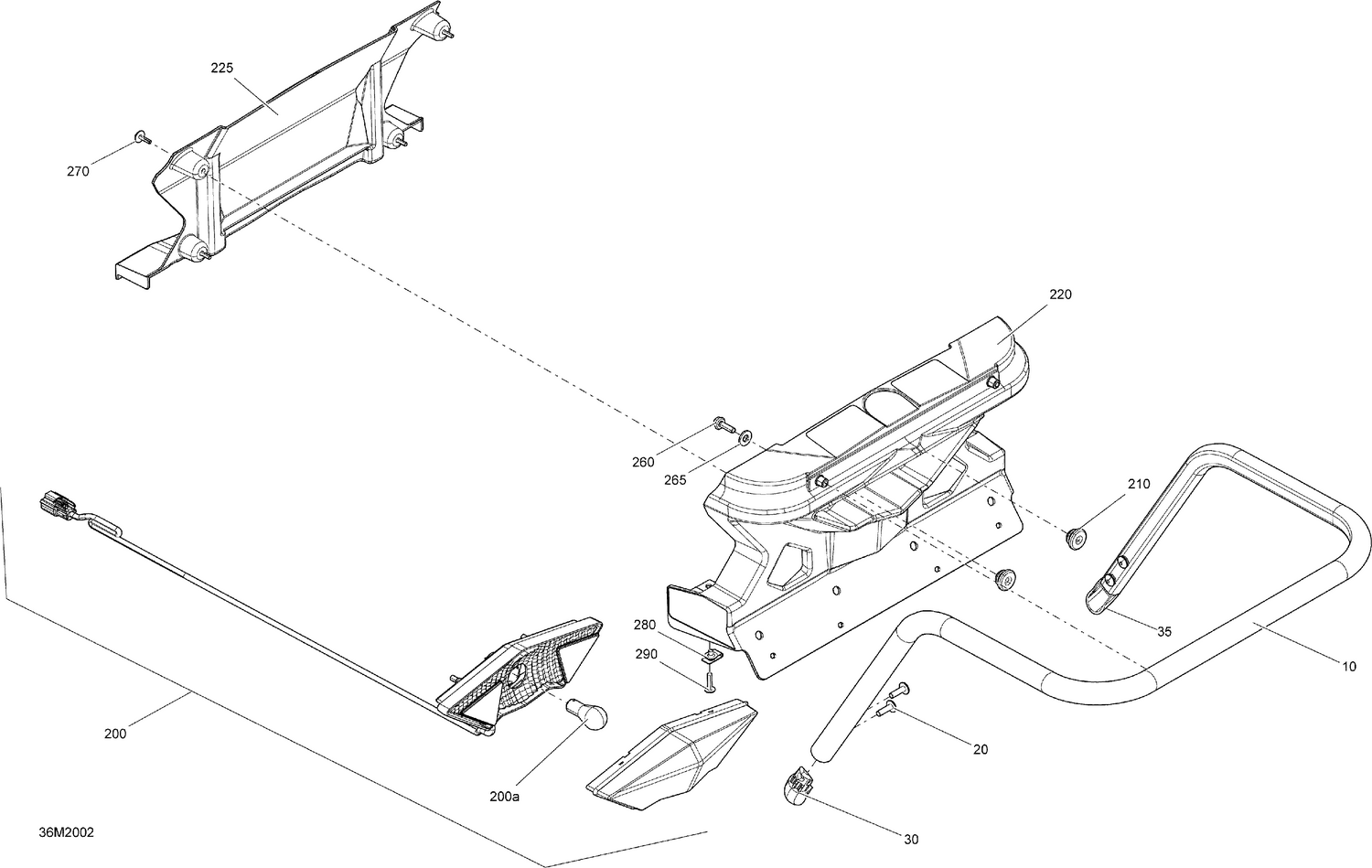

09- Body - Cargo
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 511000705 | Luggage Rack |
| 20 | 250000786 | Torx Screw M6 X 20, Scotch Grip |
| 30 | 520000985 | RH Cap |
| 35 | 520000986 | LH Cap |
| 200a | 520000758 | Bulb |
| 210 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 220 | 511000625 | Rear Light Support |
| 250 | 293150103 | Pop Rivet 3/16" |
| 260 | 207662044 | Hex. Flange Screw M6 X 20 |
| 265 | 234062410 | Flat Washer 6 mm |
| 270 | 250000725 | Screw M4 X 16 |
| 280 | 250000958 | Panel Nut M5 X 0.8 |
