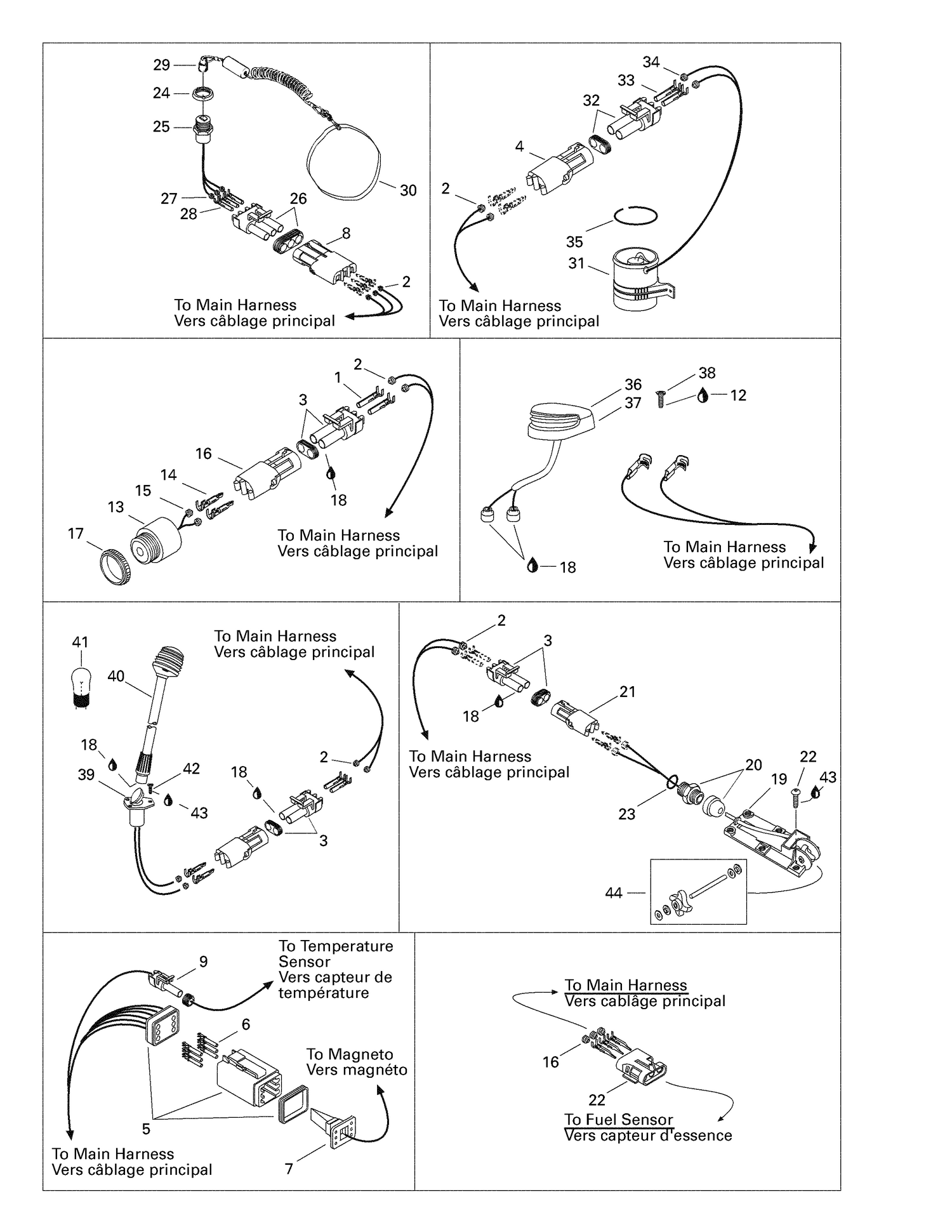

| Ref | Part Number | Description |
|---|
| 1 |
409007300 |
Female Terminal |
| 2 |
278000218 |
Wire Seal |
| 3 |
278000220 |
Male Connector, 2 Circuits |
| 4 |
278000217 |
Female Housing, 2 Circuits |
| 5 |
710001540 |
CONNECTOR_MALE 6 CAVITIES - Call your local BRP dealership This part replaces 278000736. |
| 6 |
278000632 |
Female Terminal |
| 7 |
278000737 |
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership |
| 8 |
278000281 |
Female Terminal Housing, 3 Circuits |
| 9 |
278001012 |
Male Housing, 1 Circuit |
| 10 |
278001013 |
Wire Seal |
| 11 |
278001014 |
Female Terminal |
| 12 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 14 |
278000222 |
Male Terminal |
| 15 |
278000218 |
Wire Seal |
| 16 |
278000217 |
Female Housing, 2 Circuits |
| 17 |
278000707 |
Buzzer Nut |
| 18 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 20 |
293710031 |
ELECTRIC CONNECTION - Call your local BRP dealership |
| 21 |
278000217 |
Female Housing, 2 Circuits |
| 22 |
216351060 |
SCREW-CTSK.OV.HD.PH.DIN.966A-A2 - Call your local BRP dealership |
| 23 |
278000416 |
SEAL WASHER - Call your local BRP dealership |
| 24 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 26 |
278000273 |
Male Housing, 3 Circuits |
| 27 |
278000218 |
Wire Seal |
| 28 |
278000223 |
Female Terminal |
| 29 |
278002199 |
Safety Lanyard, Antitheft This part replaces 295500342. |
| 30 |
204470025 |
Safety Strap |
| 32 |
278000220 |
Male Connector, 2 Circuits |
| 33 |
278000223 |
Female Terminal |
| 34 |
278000218 |
Wire Seal |
| 35 |
204000133 |
BROACH - Call your local BRP dealership |
| 36 |
204470062 |
Front Lamp Ass'y |
| 37 |
204470070 |
Front Lamp Base |
| 38 |
208641660 |
Phillips Screw M4 X 16 This part replaces 211000011. |
| 39 |
278000674 |
Rear Light Base Ass'y |
| 41 |
204470053 |
Bulb |
| 42 |
211000136 |
Screw M4 x 30 |
| 43 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
