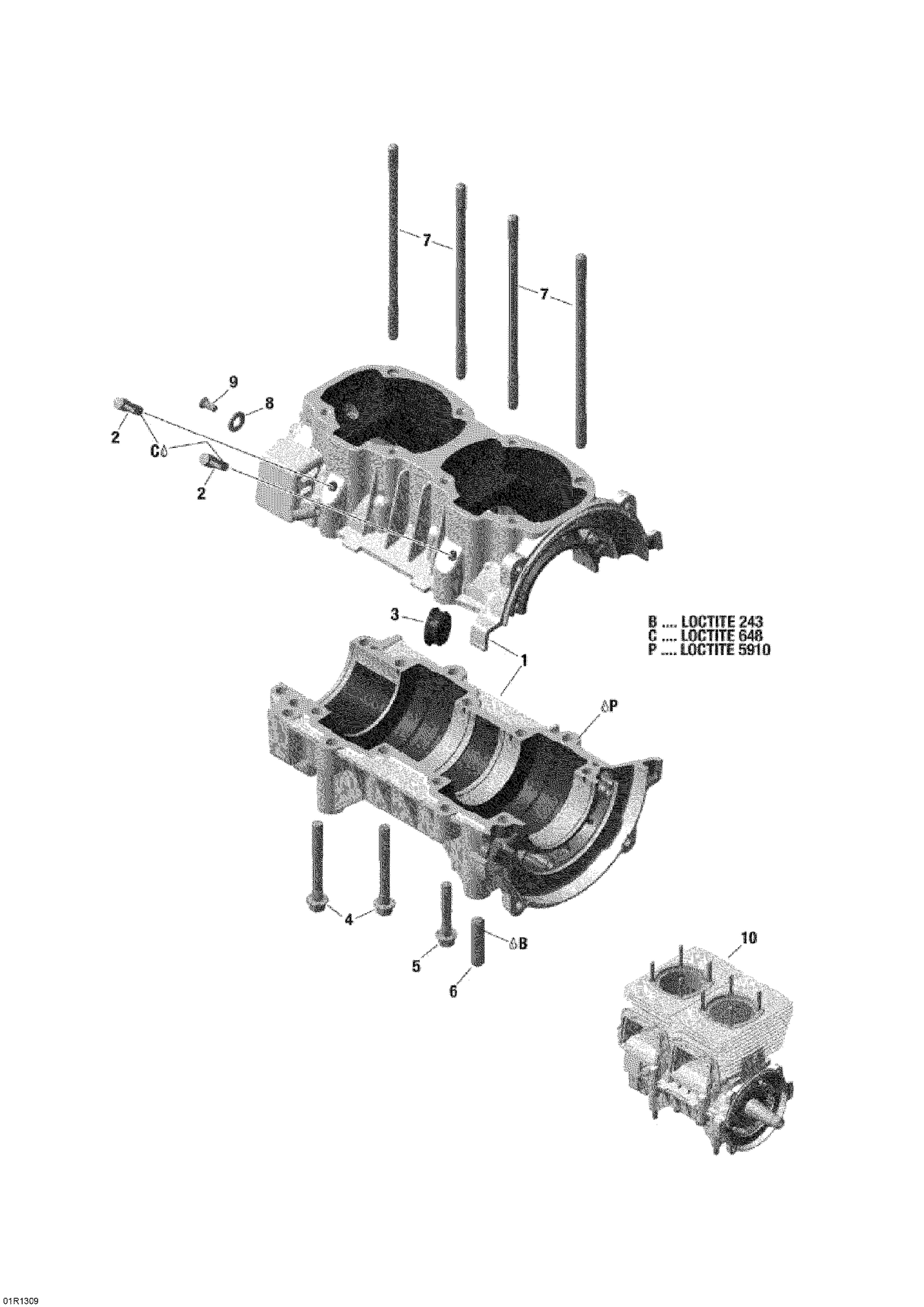

01- Crankcase
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10ml |
| C | 619600012 | Loctite 609, 50ml |
| 2 | 420956511 | Check Valve This part replaces 420956510. |
| 3 | 420860962 | Cable Grommet |
| 8 | 420250315 | Flat Washer 8.4 Mm This part replaces 420250311. |
| 9 | 420640897 | Flat Head Screw This part replaces 420640896. |
| 10 | 300055208 | Short Block Engine |
