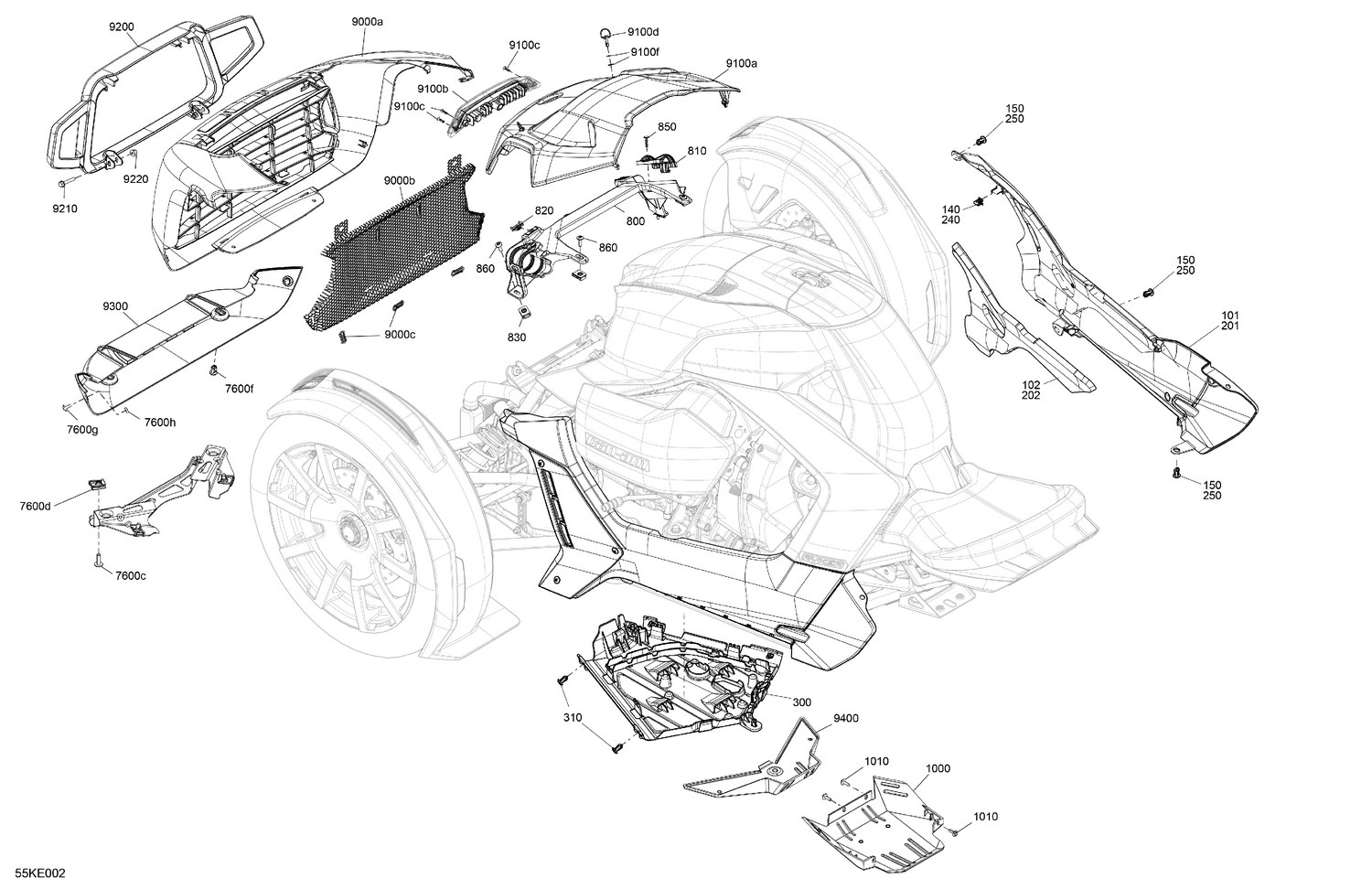

07- Body - Lower Section
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 101 | 219800524 | LH Rocker Panel Kit |
| 102 | 705013940 | LH Rocker Acoustic Foam |
| 140 | 517302785 | Edge Clip |
| 150 | 293150230 | Tuflok Plastic Rivet |
| 201 | 219800525 | RH Rocker Panel Kit |
| 202 | 705013941 | Acoustic Foam |
| 240 | 517302785 | Edge Clip |
| 250 | 293150230 | Tuflok Plastic Rivet |
| 300 | 705012364 | Skid Plate |
| 310 | 293150230 | Tuflok Plastic Rivet |
| 800 | 705016204 | Front Tank Support Shock Absorber |
| 810 | 706004531 | Ext Tank Support Shock Absorber |
| 820 | 705016560 | Specialized Nut |
| 830 | 250100208 | Panel Nut M6 X 1.0 |
| 850 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 860 | 250000722 | Torx Screw M6 X 20 |
| 1000 | 705212406 | Rear Molded Skid Plate |
| 1010 | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 7600c | 250000722 | Torx Screw M6 X 20 |
| 7600d | 250100208 | Panel Nut M6 X 1.0 |
| 7600f | 293150230 | Tuflok Plastic Rivet |
| 7600g | 250001059 | Torx Truss Head Screw W Nylon M5X14 |
| 7600h | 232852411 | Square Nut M5 X 0.8 |
| 9000a | 705013345 | Deep Black, Front Fascia |
| 9000b | 705018411 | Protective Grille |
| 9000c | 705004838 | Flat Clip |
| 9100a | 705016171 | Hood |
| 9100b | 219400991 | Front Lower LED Light Ass'y |
| 9100c | 250001123 | Hex. Flange Screw K40 X 16 |
| 9100d | 705016561 | Quarter Turn Fastener |
| 9100f | 705016562 | Washer |
| 9200 | 705016169 | Central Bumper Trim |
| 9210 | 207663554 | Hex. Flange Screw M6 X 35 |
| 9220 | 233261466 | Hex. Flange Elastic Nut M6 |
| 9300 | 705016170 | Lower Bumper Trim |
