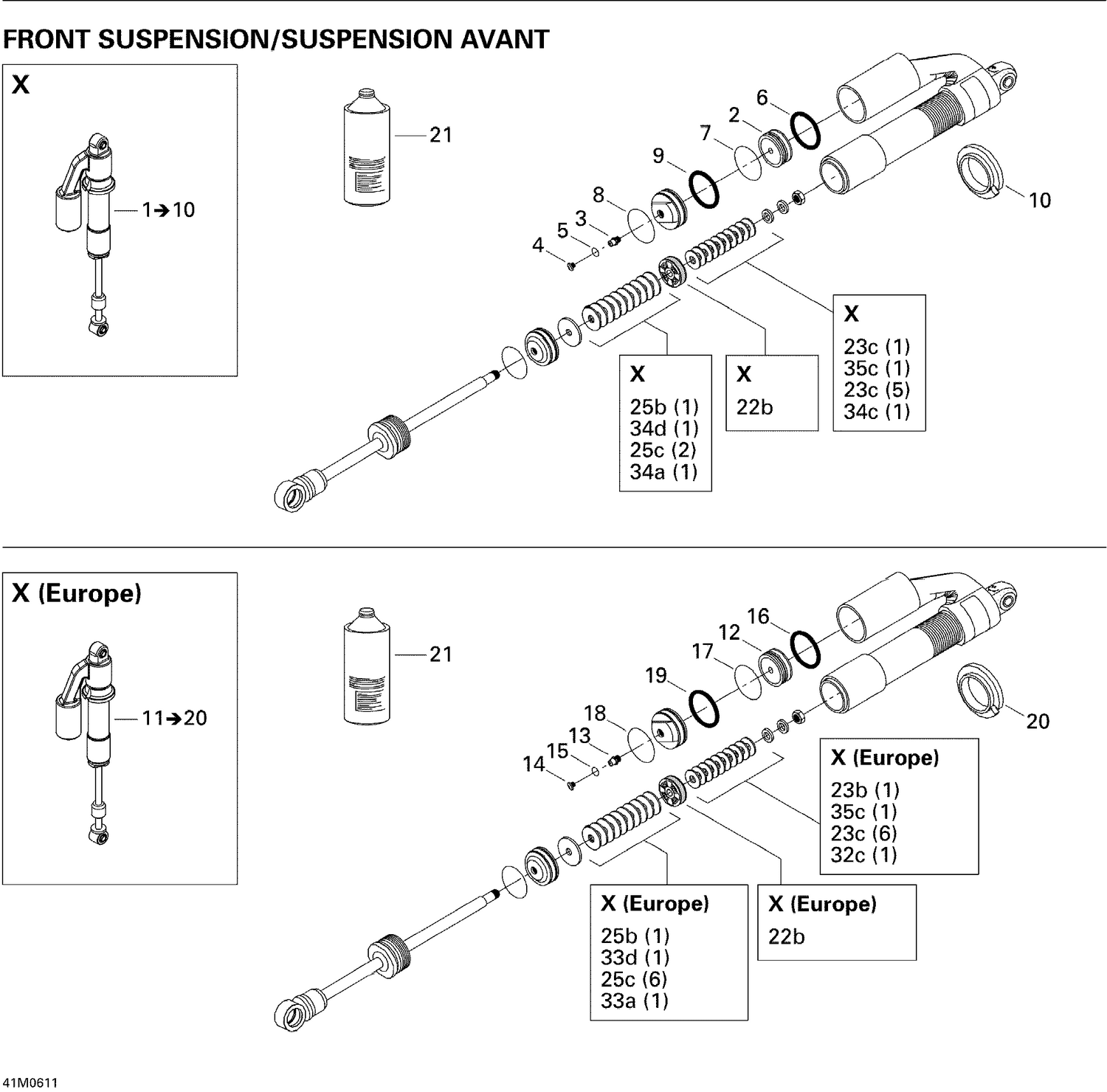

07- Take Apart Shock, Front

07- Take Apart Shock, Front

Parts (67)

RefPart NumberDescription
21 293600035 Shock Oil, 1 Liter
22a 414888304 Piston (C36)
22b Not Available As Spare Part - Piston (2 X 0.3-1) (C36)
22c 414888305 Piston (2 X 0.3-2) (C36)
22d Not Available As Spare Part - Piston (2 x 0.3-3) (C36)
22e 414888306 Piston (2 X 0.3-4) (C36)
22f Not Available As Spare Part - Piston (2 x 0.3-5) (C36)
22g 414888307 Piston (2 X 0.3-6) (C36)
23a 415039100 Leaf Valve Ø30 X 0.254 (C36)
23b 414888318 Leaf Valve Ø30 X 0.203 (C36)
23c 414888319 Leaf Valve Ø30 X 0.152 (C36)
23d Not Available As Spare Part - Leaf Valve Ø30 x 0.114 (C36)
24a Not Available As Spare Part - Leaf Valve Ø28 x 0.254 (C36)
24b 414888320 Leaf Valve Ø28 X 0.203 (C36)
24c 414888321 Leaf Valve Ø28 X 0.152 (C36)
24d Not Available As Spare Part - Leaf Valve Ø28 x 0.114 (C36)
25a 415039000 Leaf Valve Ø26 X 0.254 (C36)
25b 414888322 Leaf Valve Ø26 X 0.203 (C36)
25c 414888323 Leaf Valve Ø26 X 0.152 (C36)
25d Not Available As Spare Part - Leaf Valve Ø26 x 0.114 (C36)
26a Not Available As Spare Part - Leaf Valve Ø24 x 0.254 (C36)
26b Not Available As Spare Part - Leaf Valve Ø24 x 0.203 (C36)
26c Not Available As Spare Part - Leaf Valve Ø24 x 0.152 (C36)
26d Not Available As Spare Part - Leaf Valve Ø24 x 0.114 (C36)
27a Not Available As Spare Part - Leaf Valve Ø22 x 0.254 (C36)
27b 414888324 Leaf Valve Ø22 X 0.203 (C36)
27c 414888325 Leaf Valve Ø22 X 0.152 (C36)
27d Not Available As Spare Part - Leaf Valve Ø22 x 0.114 (C36)
28a Not Available As Spare Part - Leaf Valve Ø21 x 0.254 (C36)
28b Not Available As Spare Part - Leaf Valve Ø21 x 0.203 (C36)
28c Not Available As Spare Part - Leaf Valve Ø21 x 0.152 (C36)
28d 414888340 Leaf Valve Ø21 X 0.114 (C36)
29a Not Available As Spare Part - Leaf Valve Ø20 x 0.254 (C36)
29b 414888326 Leaf Valve Ø20 X 0.203 (C36)
29c 414888327 Leaf Valve Ø20 X 0.152 (C36)
29d 414888328 Leaf Valve Ø20 X 0.114 (C36)
30a Not Available As Spare Part - Leaf Valve Ø19 x 0.254 (C36)
30b Not Available As Spare Part - Leaf Valve Ø19 x 0.203 (C36)
30c Not Available As Spare Part - Leaf Valve Ø19 x 0.152 (C36)
30d Not Available As Spare Part - Leaf Valve Ø19 x 0.114 (C36)
31a Not Available As Spare Part - Leaf Valve Ø18 x 0.254 (C36)
31b 414888329 Leaf Valve Ø18 X 0.203 (C36)
31c 414888330 Leaf Valve Ø18 X 0.152 (C36)
31d Not Available As Spare Part - Leaf Valve Ø18 x 0.114 (C36)
32a Not Available As Spare Part - Leaf Valve Ø17 x 0.254 (C36)
32b Not Available As Spare Part - Leaf Valve Ø17 x 0.203 (C36)
32c Not Available As Spare Part - Leaf Valve Ø17 x 0.152 (C36)
32d Not Available As Spare Part - Leaf Valve Ø17 x 0.114 (C36)
33a 414888331 Leaf Valve Ø16 X 0.254 (C36)
33b 414888332 Leaf Valve Ø16 X 0.203 (C36)
33c 414888333 Leaf Valve Ø16 X 0.152 (C36)
33d 415038900 Leaf Valve Ø16 X 0.114 (C36)
34a 414888334 Leaf Valve Ø15 X 0.254 (C36)
34b 414888335 Leaf Valve Ø15 X 0.203 (C36)
34c 414888336 Leaf Valve Ø15 X 0.152 (C36)
34d 414888337 Leaf Valve Ø15 X 0.114 (C36)
35a Not Available As Spare Part - Leaf Valve Ø14 x 0.254 (C36)
35b Not Available As Spare Part - Leaf Valve Ø14 x 0.203 (C36)
35c Not Available As Spare Part - Leaf Valve Ø14 x 0.152 (C36)
35d Not Available As Spare Part - Leaf Valve Ø14 x 0.114 (C36)
36a Not Available As Spare Part - Leaf Valve Ø13 x 0.254 (C36)
36b Not Available As Spare Part - Leaf Valve Ø13 x 0.203 (C36)
36c Not Available As Spare Part - Leaf Valve Ø13 x 0.152 (C36)
36d Not Available As Spare Part - Leaf Valve Ø13 x 0.114 (C36)
37a 503189538 Leaf Valve Ø12 X 0.254 (C36)
37b 414888338 Leaf Valve Ø12 X 0.203 (C36)
37c 414888339 Leaf Valve Ø12 X 0.152 (C36)
