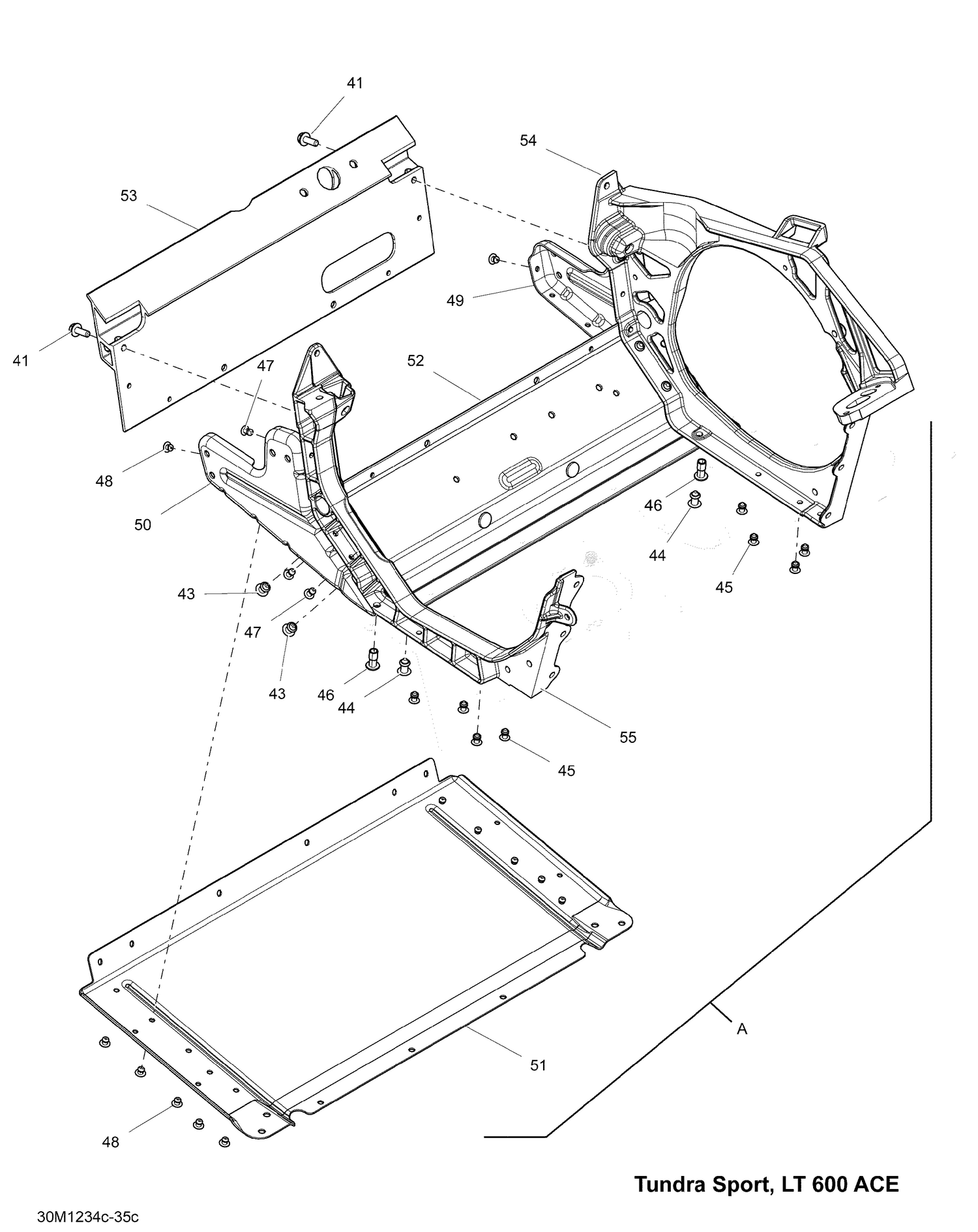

09- Frame E Module
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 41 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 43 | 293150119 | Hemlock Rivet, 6.5 mm |
| 44 | 293150120 | Hemlock Rivet 6.5 mm |
| 45 | 293150144 | Stavex Rivet |
| 46 | 293150182 | Monobolt Rivet 6.4 |
| 47 | 390909100 | Avex Rivet |
| 48 | 390909200 | Avex Rivet |
| 49 | 518325949 | RH Front Member |
| 50 | 518325950 | LH Front Member |
| 51 | 518325951 | Front Bottom Plate |
| 52 | 518326198 | Front Member |
| 53 | 518326140 | Engine Support |
| 54 | 518326328 | RH Side Member |
| 55 | 518326330 | LH Side Member |
