Parts Catalog

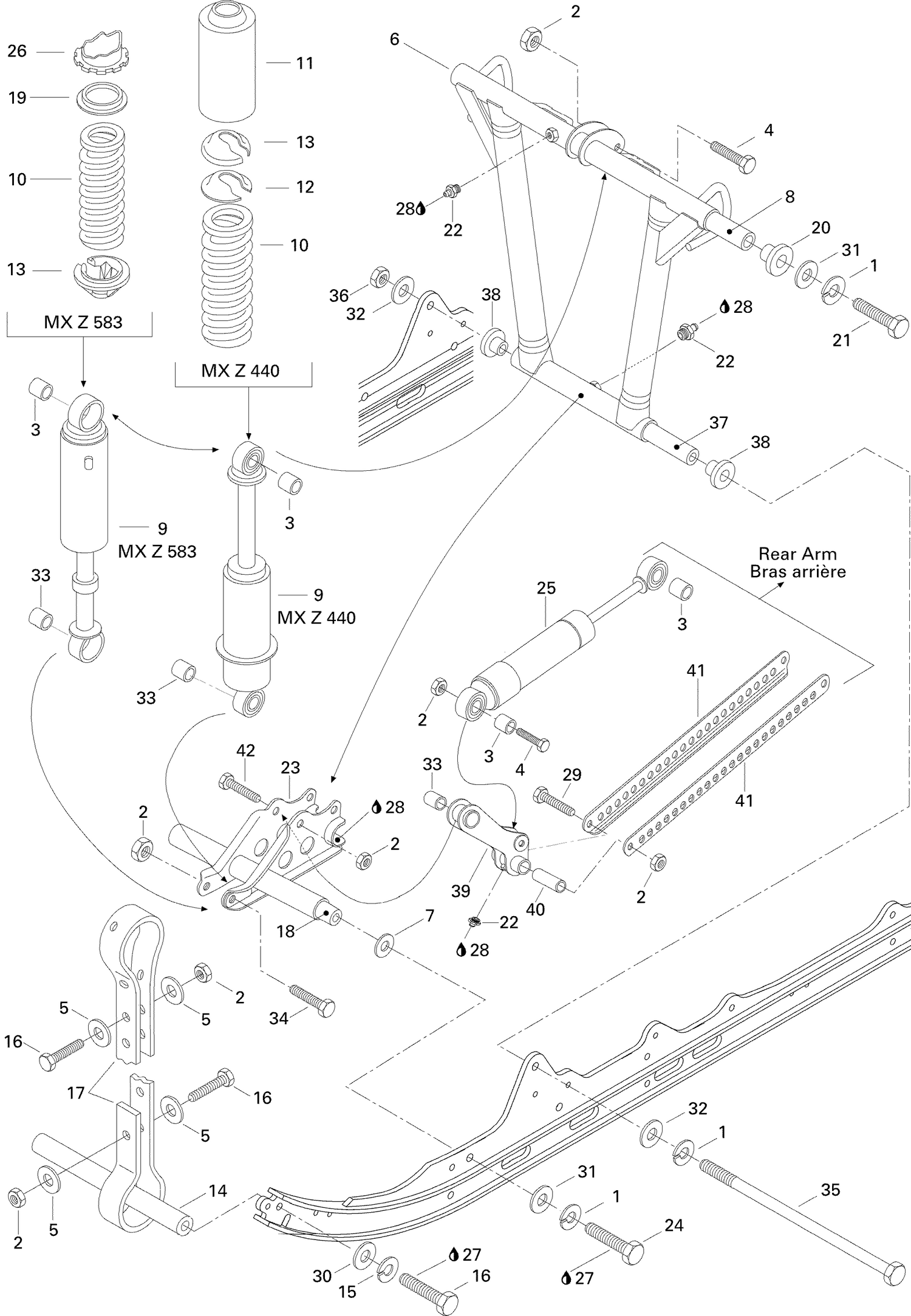

08- Front Arm 440

Parts (41)

Ref	Part Number	Description
1	234100602	WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
2	232581414	Hex. Elastic Stop Nut M8 This part replaces 228581045.
3	414936000	Bushing
4	207084044	Hex. Screw M8 X 40 This part replaces 222084065.
5	517078700	WASHER - Call your local BRP dealership
6	503158800	Welded Front Arm
7	503007900	Hard Washer
8	503190387	SHAFT - Call your local BRP dealership This part replaces 503159000.
9	414953900	Take Apart Shock
10	414895100	Center Spring
11	503193663	Protector This part replaces 517280900.
12	706200785	Cap This part replaces 503141600.
13	706200881	Spring Stopper This part replaces 503140600.
14	503151600	Axle
15	234181401	Lock Washer 8 mm This part replaces 224781140.
16	207183044	Hex. Screw M8 X 30 This part replaces 222083065.
17	570038800	Stopper Strap
18	503152800	Axle Wheel
19	XXX	Not Available As Spare Parts
20	503189324	Bushing This part replaces 415027900.
21	207006044	HEX. SCREW M10 X 60 - Call your local BRP dealership This part replaces 222006065.
22	408200700	Grease Fitting
23	503158300	Welded Shock Support
24	207103544	Hex. Screw M10 X 35 This part replaces 222003565.
25	414954000	Take Apart Shock
26	XXX	Not Available As Spare Parts
27	293800005	Loctite 271, 10 ml This part replaces 413707400.
28	413706100	LITHIUM GREASE, 400 GR - Call your local BRP dealership
29	207087544	HEX. SCREW M8 X 75 - Call your local BRP dealership This part replaces 222087565.
30	234081410	Flat Washer 8 mm This part replaces 224081171.
31	234001410	Flat Washer 10 mm This part replaces 224001211.
32	234021410	Flat Washer 12 mm This part replaces 224021251.
33	414917900	Cushion
34	207085544	Hex. Screw M8 X 55 This part replaces 222085565.
35	503140800	Bolt M12
36	232521414	NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045.
37	503158900	Lower Axle (Front Arm)
38	415026300	Cushion
39	503158500	Lever
40	503158600	Tie Rod Shaft
41	503158700	Tie Rod
