| Ref | Part Number | Description |
|---|
| A |
415129638 |

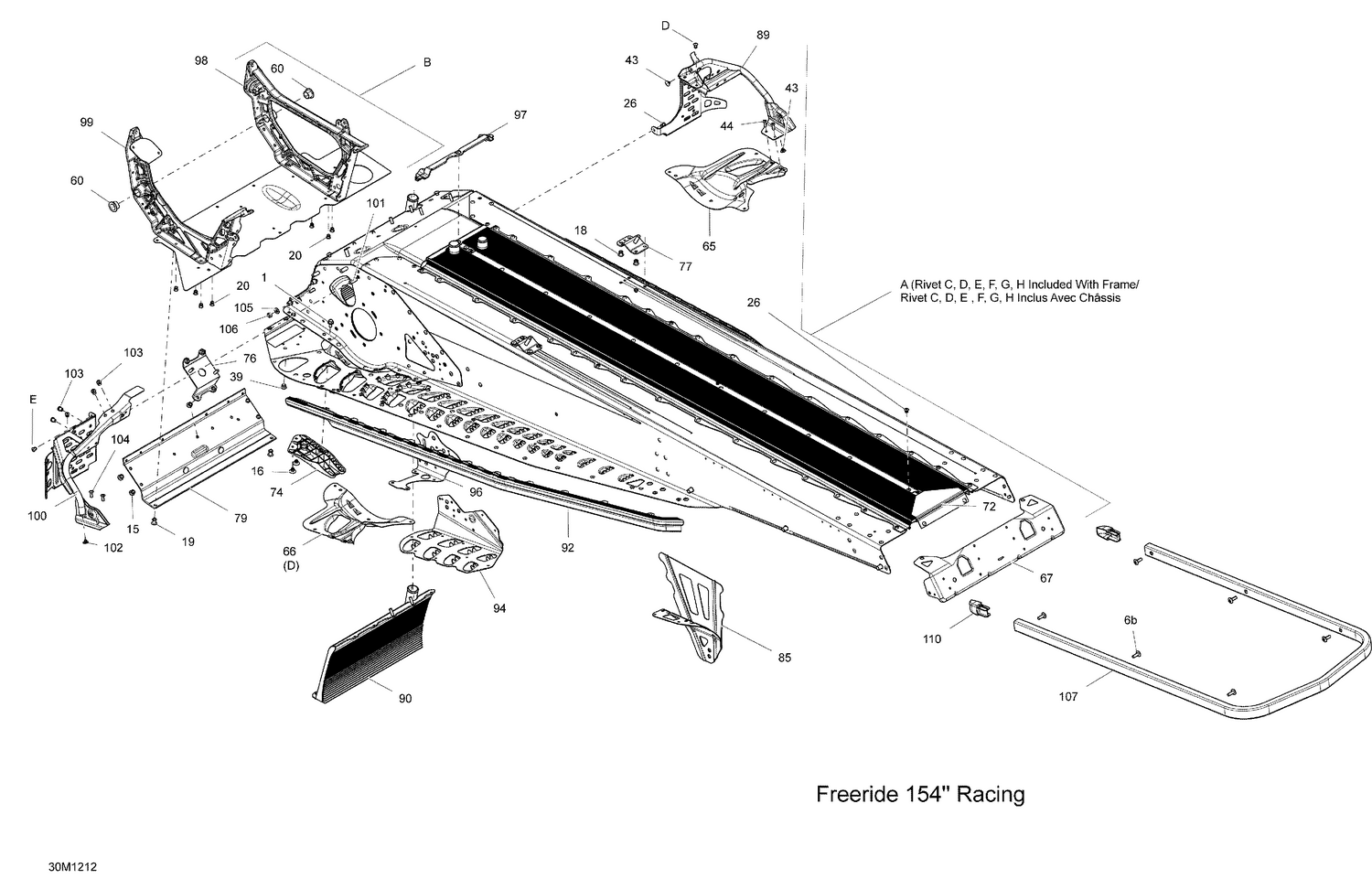

FRAME FREERIDE 154'' RACING - Call your local BRP dealership |
| B |
518327567 |
E Module This part replaces 518326843. |
| C |
390909200 |
Avex Rivet |
| D |
390909100 |
Avex Rivet |
| E |
293150144 |
Stavex Rivet |
| F |
293150146 |
Henrob Rivet |
| G |
293150096 |
Hemlock Rivet, 6.5 mm |
| 1 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 2 |
232561414 |
Elastic Stop Nut M6 |
| 6b |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402. |
| 15 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 16 |
293150104 |
Pop Rivet 3/16" |
| 18 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 19 |
293150120 |
Hemlock Rivet 6.5 mm |
| 20 |
293150144 |
Stavex Rivet |
| 26 |
293150144 |
Stavex Rivet |
| 39 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 43 |
293730042 |
Full Moon Dart 5 mm |
| 44 |
390407200 |
Pop Rivet 3/16” |
| 60 |
505072690 |
Leg Bushing |
| 65 |
518324874 |
RH Reinforcement |
| 66 |
518324875 |
LH Reinforcement |
| 67 |
518327105 |
Rear Cap This part replaces 518325421. |
| 72 |
518326692 |
Rear Radiator Ass'y, 154" |
| 74 |
518325782 |
RH Deflector, Black Polypropylene |
| 74 |
518325783 |
LH Deflector, Black Polypropylene |
| 76 |
518325943 |
MAG Engine Support |
| 77 |
518325973 |
RH Rear Base |
| 77 |
518325974 |
LH Rear Base |
| 79 |
518326198 |
Front Member |
| 85 |
518326621 |
RH REAR RETAINER - Call your local BRP dealership |
| 85 |
518326622 |
LH REAR RETAINER - Call your local BRP dealership |
| 89 |
518328938 |
RH Stirup This part replaces 518326216. |
| 90 |
518326485 |
Front Radiator |
| 92 |
518326601 |
RH ROLLER - Call your local BRP dealership |
| 92 |
518326602 |
LH Roller |
| 94 |
860200813 |
CHASSIS KIT - Call your local BRP dealership This part replaces 860200522. |
| 96 |
518326616 |
RH Front Suspension Retainer |
| 96 |
518326617 |
LH Front Suspension Retainer |
| 97 |
518326656 |
Seal |
| 98 |
518326795 |
RH Member |
| 99 |
518326796 |
LH Member |
| 100 |
518327935 |
LH STIRUP - Call your local BRP dealership This part replaces 518326239. |
| 101 |
250000752 |
Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248. |
| 102 |
293730042 |
Full Moon Dart 5 mm |
| 103 |
293450268 |
Insert M5 X 0.8 |
| 104 |
293150194 |
Interlock Rivet 3/16'' |
| 105 |
250200039 |
Flat Washer |
| 106 |
232561414 |
Elastic Stop Nut M6 |
| 107 |
518326049 |
Black Rear Bumper, 154" |
| 110 |
520000840 |
BLACK CAP - Call your local BRP dealership |
