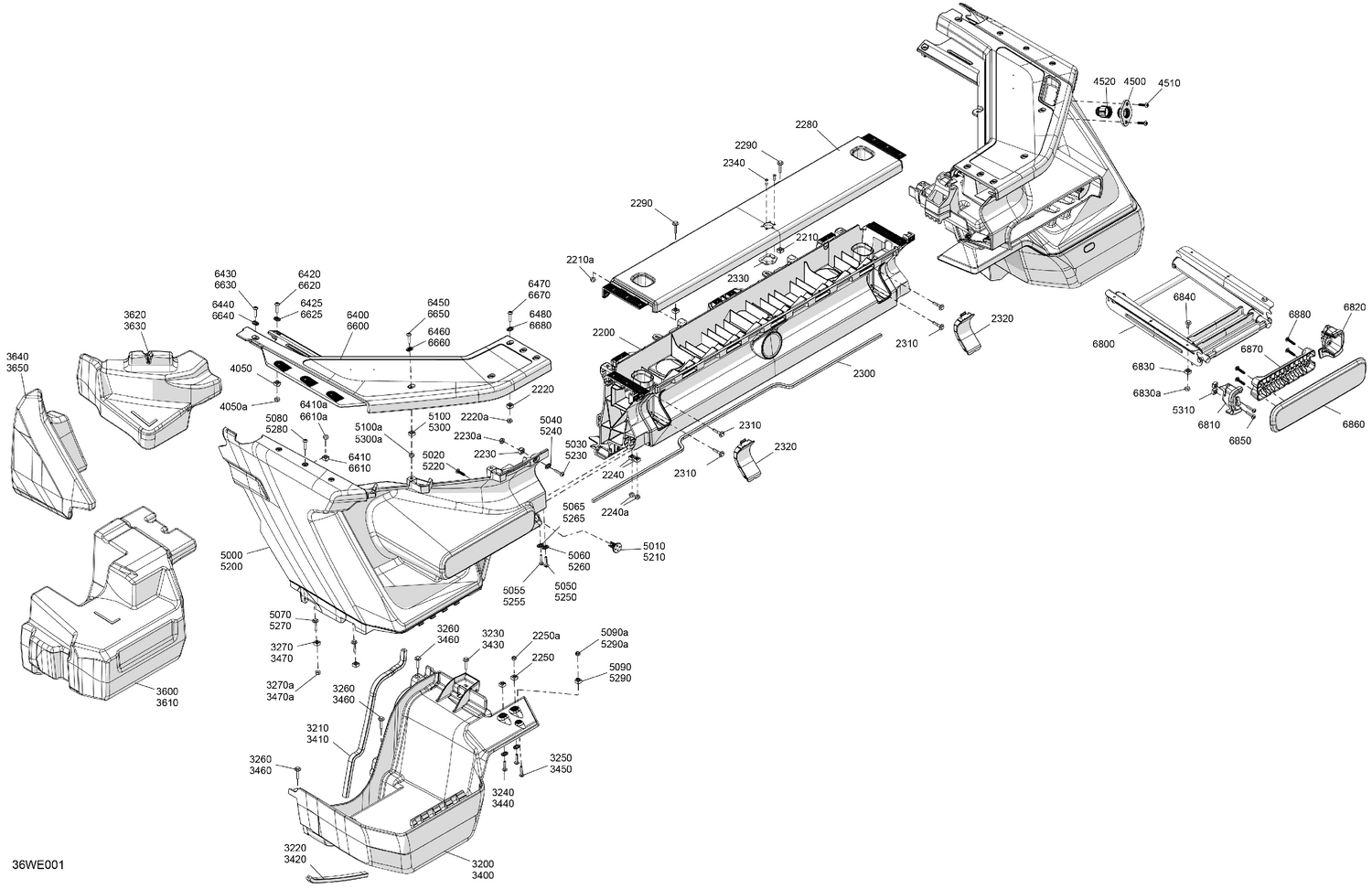

| Ref | Part Number | Description |
|---|
| 2200 |
295101095 |
Rear Bumper Service Kit |
| 2210a |
232561200 |
Brass Elastic Stop Nut M6 |
| 2220a |
232561200 |
Brass Elastic Stop Nut M6 |
| 2230a |
232561200 |
Brass Elastic Stop Nut M6 |
| 2240a |
232561200 |
Brass Elastic Stop Nut M6 |
| 2250a |
232561200 |
Brass Elastic Stop Nut M6 |
| 2280 |
291006560 |
Deep Black, Bumper Trim |
| 2290 |
250001116 |
Screw-Torx Truss Cone Head M6X25 |
| 2300 |
292002523 |
Gasket |
| 2310 |
250001164 |
Hex SEMS Screw M6X30 |
| 2320 |
291005459 |
Rear Bumper Cap |
| 2330 |
291005813 |
Retaining Plate |
| 2340 |
293150005 |
Pop Rivet 3/16" |
| 3200 |
291004847 |
LH Rear Float Deflector |
| 3210 |
292002677 |
Gasket |
| 3220 |
292002677 |
Gasket |
| 3230 |
250000969 |
Hex Screw SEMS M6X35, SS |
| 3240 |
250001116 |
Screw-Torx Truss Cone Head M6X25 |
| 3250 |
250001116 |
Screw-Torx Truss Cone Head M6X25 |
| 3260 |
250000969 |
Hex Screw SEMS M6X35, SS |
| 3270a |
232561200 |
Brass Elastic Stop Nut M6 |
| 3400 |
291006071 |
RH Rear Deflector Float |
| 3410 |
292002677 |
Gasket |
| 3420 |
292002677 |
Gasket |
| 3430 |
250000969 |
Hex Screw SEMS M6X35, SS |
| 3440 |
250001116 |
Screw-Torx Truss Cone Head M6X25 |
| 3450 |
250001116 |
Screw-Torx Truss Cone Head M6X25 |
| 3460 |
250000969 |
Hex Screw SEMS M6X35, SS |
| 3470a |
232561200 |
Brass Elastic Stop Nut M6 |
| 3600 |
292002847 |
LH Lower Rear Float |
| 3610 |
292002848 |
RH Lower Rear Float |
| 3620 |
291005815 |
LH Rear Upper Float |
| 3630 |
291005816 |
RH Rear Upper Float |
| 3640 |
291005843 |
LH Lat Rear Float |
| 3650 |
291005844 |
RH Rear Lateral Float |
| 4050a |
232561200 |
Brass Elastic Stop Nut M6 |
| 4500 |
292002765 |
Through Hull Fitting |
| 4510 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 4520 |
291005837 |
Adapter Hose |
| 5000 |
291006549 |
Deep Black, LH Rear Panel |
| 5010 |
291005634 |
Swim Plateform Cap |
| 5020 |
250000879 |
Plastite Torx Screw M6.81X30 |
| 5030 |
250001116 |
Screw-Torx Truss Cone Head M6X25 |
| 5040 |
291003880 |
Oval Washer |
| 5050 |
250001116 |
Screw-Torx Truss Cone Head M6X25 |
| 5055 |
250001116 |
Screw-Torx Truss Cone Head M6X25 |
| 5060 |
291003880 |
Oval Washer |
| 5065 |
291003880 |
Oval Washer |
| 5070 |
250000969 |
Hex Screw SEMS M6X35, SS |
| 5080 |
250001116 |
Screw-Torx Truss Cone Head M6X25 |
| 5090a |
232561200 |
Brass Elastic Stop Nut M6 |
| 5100a |
232561200 |
Brass Elastic Stop Nut M6 |
| 5200 |
291006550 |
Deep Black, RH Rear Panel |
| 5210 |
291005634 |
Swim Plateform Cap |
| 5220 |
250000879 |
Plastite Torx Screw M6.81X30 |
| 5230 |
250001116 |
Screw-Torx Truss Cone Head M6X25 |
| 5240 |
291003880 |
Oval Washer |
| 5250 |
250001116 |
Screw-Torx Truss Cone Head M6X25 |
| 5255 |
250001116 |
Screw-Torx Truss Cone Head M6X25 |
| 5260 |
291003880 |
Oval Washer |
| 5265 |
291003880 |
Oval Washer |
| 5270 |
250000969 |
Hex Screw SEMS M6X35, SS |
| 5280 |
250001116 |
Screw-Torx Truss Cone Head M6X25 |
| 5290a |
232561200 |
Brass Elastic Stop Nut M6 |
| 5300a |
232561200 |
Brass Elastic Stop Nut M6 |
| 5310 |
291005889 |
Platite Insert 6.81 |
| 6400 |
291006551 |
Deep Black, LH Rear Panel Trim |
| 6410a |
232561200 |
Brass Elastic Stop Nut M6 |
| 6420 |
250001116 |
Screw-Torx Truss Cone Head M6X25 |
| 6425 |
291003880 |
Oval Washer |
| 6430 |
250001116 |
Screw-Torx Truss Cone Head M6X25 |
| 6440 |
291003880 |
Oval Washer |
| 6450 |
250001116 |
Screw-Torx Truss Cone Head M6X25 |
| 6460 |
291003880 |
Oval Washer |
| 6470 |
250001116 |
Screw-Torx Truss Cone Head M6X25 |
| 6480 |
291003880 |
Oval Washer |
| 6600 |
291006552 |
Deep Black, RH Rear Panel Trim |
| 6610a |
232561200 |
Brass Elastic Stop Nut M6 |
| 6620 |
250001116 |
Screw-Torx Truss Cone Head M6X25 |
| 6625 |
291003880 |
Oval Washer |
| 6630 |
250001116 |
Screw-Torx Truss Cone Head M6X25 |
| 6640 |
291003880 |
Oval Washer |
| 6650 |
250001116 |
Screw-Torx Truss Cone Head M6X25 |
| 6660 |
291003880 |
Oval Washer |
| 6670 |
250001116 |
Screw-Torx Truss Cone Head M6X25 |
| 6680 |
291003880 |
Oval Washer |
| 6800 |
291006275 |
Ladder Ass'y |
| 6810 |
291005316 |
LH Ladder Support |
| 6820 |
291005699 |
RH Ladder Support |
| 6830a |
232561200 |
Brass Elastic Stop Nut M6 |
| 6840 |
250000965 |
Hex Screw M6 X 20 |
| 6850 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 6860 |
295101099 |
Ladder Trim Service Kit |
| 6870 |
291005595 |
Ladder Trim Fastener |
