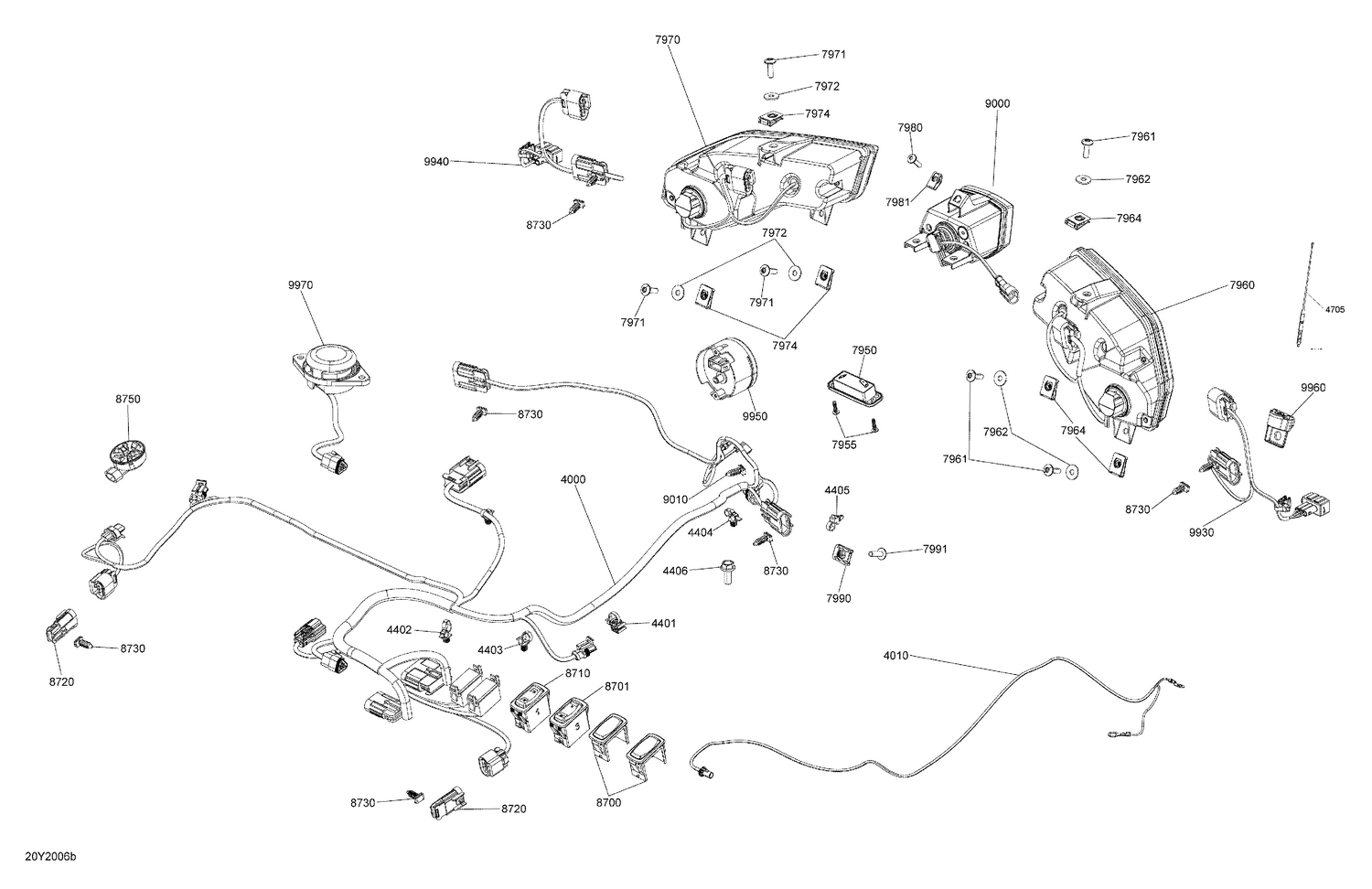

10- Electrical System Rear Sides Storage Box
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 4000 | 710006508 | Side Cargo Harness |
| 4010 | 710006811 | Antenna Cable |
| 4401 | 293750058 | Tie Rap 2 Pièces pour Bordure |
| 4402 | 710003168 | Dart Tie Rap 200MM |
| 4403 | 710003168 | Dart Tie Rap 200MM |
| 4404 | 710003168 | Dart Tie Rap 200MM |
| 4405 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 4406 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 4705 | 710005434 | Antenna |
| 7950 | 710005501 | License Light |
| 7955 | 250001123 | Hex. Flange Screw K40 X 16 |
| 7960 | 710007002 | LH Tail Light |
| 7961 | 250000722 | Torx Screw M6 X 20 |
| 7962 | 250200164 | Flat washer M6 |
| 7964 | 250100208 | Panel Nut M6 X 1.0 |
| 7970 | 710007004 | RH Tail Light |
| 7971 | 250000722 | Torx Screw M6 X 20 |
| 7972 | 250200164 | Flat washer M6 |
| 7974 | 250100208 | Panel Nut M6 X 1.0 |
| 7980 | 250000958 | Panel Nut M5 X 0.8 |
| 7981 | 250000715 | Torx Truss Screw M5 X 20 |
| 7990 | 250100208 | Panel Nut M6 X 1.0 |
| 7991 | 250000722 | Torx Screw M6 X 20 |
| 8730 | 710002033 | Connector Holder |
| 8750 | 710006797 | RH Passenger Radio Keypad |
| 9000 | 710007005 | Back-Up Light |
| 9010 | 710002033 | Connector Holder |
| 9960 | 708301797 | Antenna Support |
