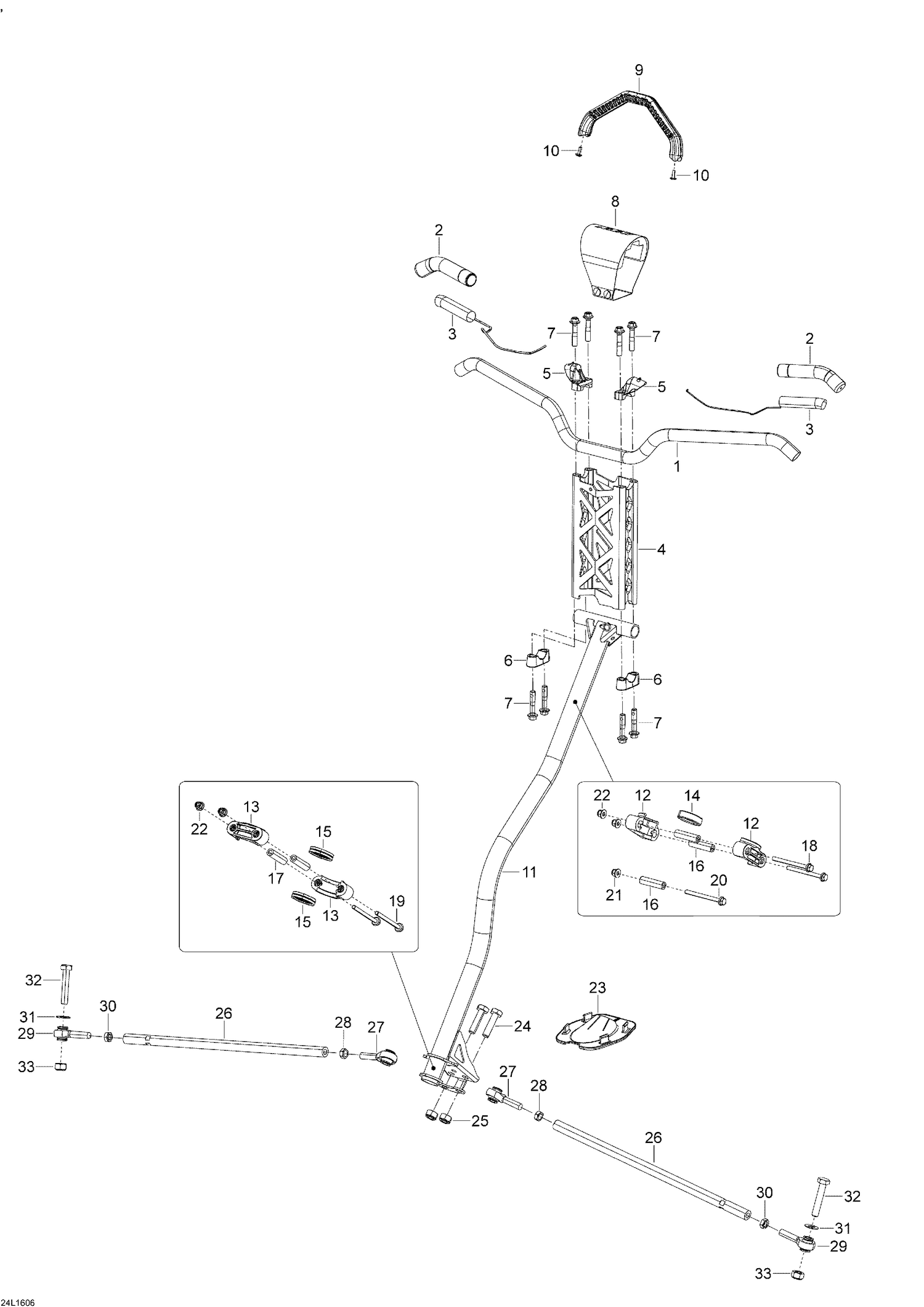

07- Steering System
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506152762 | Handle Bar |
| 2 | 506152483 | Grip |
| 3 | 506152428 | Heated Film (25W) |
| 5 | 506152772 | LEFT SUPPORT - Call your local BRP dealership |
| 5 | 506152943 | RH Support This part replaces 506152773. |
| 6 | 506152751 | Steering Support |
| 7 | 250000352 | Hex. Flange Screw M8 x 40 |
| 8 | 506152649 | Steering Pad |
| 9 | 506152460 | Strap Ass´y |
| 10 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 11 | 506152962 | Steering Column This part replaces 506152839. |
| 12 | 506152508 | Upper Half Housing |
| 13 | 506152217 | Lower Half Housing |
| 14 | 506152509 | Upper Vibrat. Gasket |
| 15 | 506152518 | Lower Vibration Ring |
| 16 | 506152297 | Housing Bushing |
| 17 | 506152297 | Housing Bushing |
| 18 | 207667056 | Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 19 | 207667056 | Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 20 | 207667056 | Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 21 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 22 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 23 | 506152163 | Plate |
| 24 | 207004044 | Hex. Screw M10 x 40 |
| 25 | 232500416 | Elastic Stop Nut M10 |
| 27 | 506152081 | Ball Joint |
| 28 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 29 | 506152019 | Ball Joint |
| 30 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 31 | 506152582 | Washer |
| 32 | 207005554 | Hex. Screw M10 x 55 |
