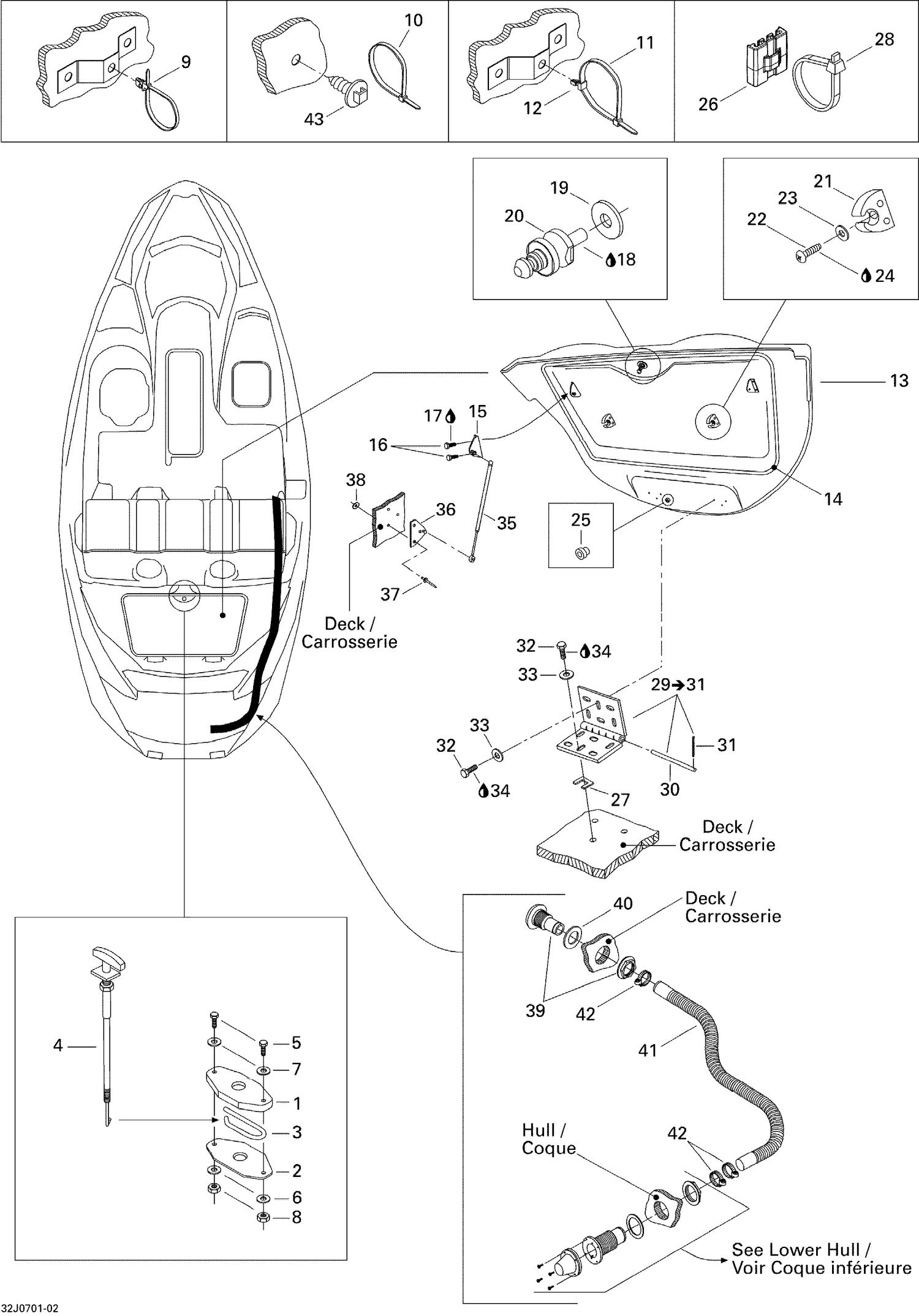

| Ref | Part Number | Description |
|---|
| 1 |
204070037 |
LATCH BASE - Call your local BRP dealership |
| 2 |
204070036 |
LATCH COVER - Call your local BRP dealership |
| 3 |
204070038 |
SPRING - Call your local BRP dealership |
| 4 |
204070081 |
LATCH COVER CABLE - Call your local BRP dealership |
| 5 |
207163560 |
Hex. Screw M6 X 35 |
| 6 |
234062600 |
Flat Washer M6, Stainless |
| 7 |
234061600 |
Stainless Flat Washer M6 |
| 8 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 9 |
204130098 |
TIE RAP WITH DART - Call your local BRP dealership |
| 10 |
414115200 |
Tie-Rap 180 mm |
| 11 |
414115200 |
Tie-Rap 180 mm |
| 12 |
204130099 |
DART, BLACK - Call your local BRP dealership |
| 13 |
204072641 |
Engine Cover, Red |
| 13 |
204072889 |
Engine Cover, Yellow |
| 14 |
219704365 |
Was 293200017 Neoprene Seal |
| 15 |
204073074 |
Shock Bracket This part replaces 204071700. |
| 16 |
207141660 |
Hex. Screw M4 X 16 |
| 17 |
293800060 |
Loctite 243, 10 ml |
| 18 |
293800060 |
Loctite 243, 10 ml |
| 19 |
291000628 |
RUBBER WASHER - Call your local BRP dealership |
| 20 |
204130146 |
Latch Stud |
| 21 |
291000642 |
Pole Support |
| 22 |
208642560 |
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership |
| 23 |
234040600 |
Flat Washer 4 mm |
| 24 |
293800060 |
Loctite 243, 10 ml |
| 25 |
293720017 |
GROMMET - Call your local BRP dealership |
| 26 |
293750109 |
Anchorage Tie Wrap This part replaces 293750025. |
| 27 |
204070047 |
SPACER 3.2 MM - Call your local BRP dealership |
| 28 |
293750002 |
Tie Wrap 142 mm |
| 30 |
204070204 |
HINGE ROD - Call your local BRP dealership |
| 31 |
204070205 |
Cotter Pin M2.5 X 12 |
| 32 |
207162560 |
Hex. Screw M6 X 25 |
| 33 |
234061600 |
Stainless Flat Washer M6 |
| 34 |
293800060 |
Loctite 243, 10 ml |
| 35 |
204071920 |
GAS SHOCK - Call your local BRP dealership |
| 36 |
204071673 |
Shock Bracket |
| 37 |
293150201 |
RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014. |
| 38 |
234051600 |
Flat Washer M5, Stainless |
| 39 |
293710060 |
FITTING - Call your local BRP dealership |
| 40 |
292800106 |
GASKET - Call your local BRP dealership This part replaces 293250039. |
| 41 |
204070560 |
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership |
| 42 |
293650074 |
Norma Clamp |
