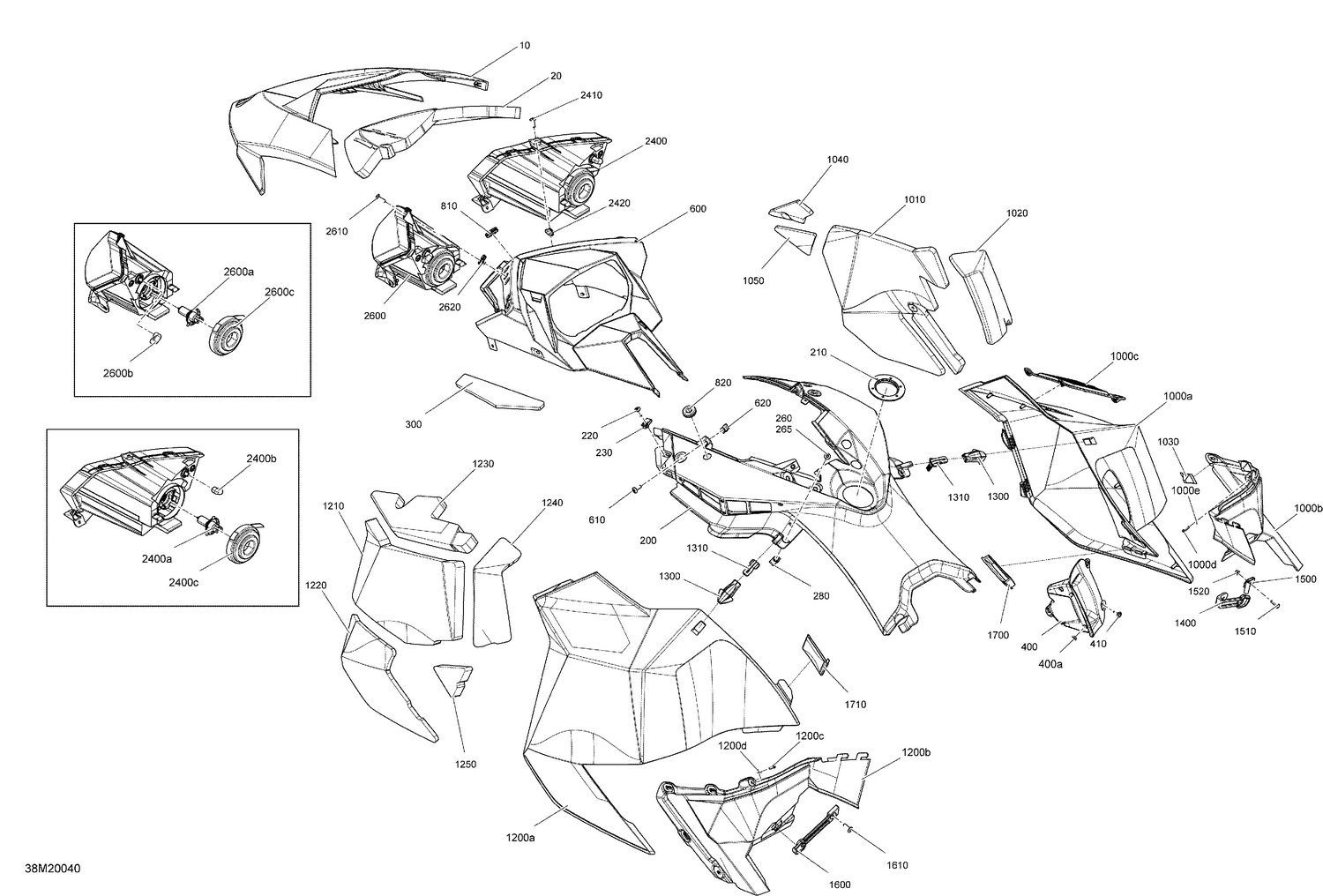

| Ref | Part Number | Description |
|---|
| 10 |
517304492 |
White Hood |
| 20 |
517304913 |
Hood Foam |
| 200 |
517303923 |
Deep Black Console |
| 210 |
517306602 |
Console Nut |
| 220 |
250000705 |
Torx Truss Screw M6 X 20 |
| 230 |
250100198 |
Panel Nut M6 X 1.0 |
| 260 |
250000721 |
Torx Truss Screw M6 X 16 |
| 265 |
250000705 |
Torx Truss Screw M6 X 20 |
| 280 |
250100198 |
Panel Nut M6 X 1.0 |
| 300 |
517304882 |
Foam |
| 400a |
275500241 |
Black, Cap |
| 410 |
250000725 |
Screw M4 X 16 |
| 600 |
517304578 |
Gauge Support |
| 610 |
250000705 |
Torx Truss Screw M6 X 20 |
| 620 |
250100198 |
Panel Nut M6 X 1.0 |
| 810 |
517303756 |
Grommet |
| 820 |
517303756 |
Grommet |
| 1000a |
517304029 |
Deep Black, RH Panel |
| 1000b |
517303671 |
Deep Black RH Moulding Panel |
| 1000c |
517303622 |
Grille |
| 1000d |
241141660 |
Hex. Flange Screw K40 X 16 |
| 1000e |
234042600 |
Flat Washer 4 mm, Stainless |
| 1010 |
517304883 |
RH Center Foam |
| 1020 |
517304884 |
RH Panel Rear Foam |
| 1030 |
517305451 |
Heat Shield |
| 1040 |
517304885 |
Foam |
| 1050 |
517304886 |
Foam |
| 1200a |
517304030 |
Deep Black, LH Panel |
| 1200b |
517303673 |
Deep Black, LH Moulding Panel |
| 1200c |
241141660 |
Hex. Flange Screw K40 X 16 |
| 1200d |
234042600 |
Flat Washer 4 mm, Stainless |
| 1210 |
517304887 |
LH Panel Center Foam |
| 1220 |
517304888 |
LH Panel Lower Foam |
| 1230 |
517304889 |
LH Panel Upper Foam |
| 1240 |
517304890 |
LH Panel Rear Foam |
| 1250 |
517304891 |
Foam |
| 1300 |
517304075 |
End Piece Latch |
| 1310 |
517303981 |
Panel Latch |
| 1400 |
517303612 |
RH Panel Latch |
| 1500 |
517304221 |
Latch Support |
| 1510 |
250000792 |
Torx Screw M5 X 20 |
| 1520 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 1600 |
517303808 |
LH Panel Latch |
| 1610 |
250000705 |
Torx Truss Screw M6 X 20 |
| 1700 |
513033471 |
RH Panel Clip |
| 1710 |
513033472 |
LH Panel Clip |
| 2400a |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 2400b |
515176498 |
Cap |
| 2400c |
219800280 |
Rubber Cap Protector This part replaces 515176499. |
| 2410 |
250000705 |
Torx Truss Screw M6 X 20 |
| 2420 |
250100198 |
Panel Nut M6 X 1.0 |
| 2600a |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 2600b |
515176498 |
Cap |
| 2600c |
219800280 |
Rubber Cap Protector This part replaces 515176499. |
| 2610 |
250000705 |
Torx Truss Screw M6 X 20 |
