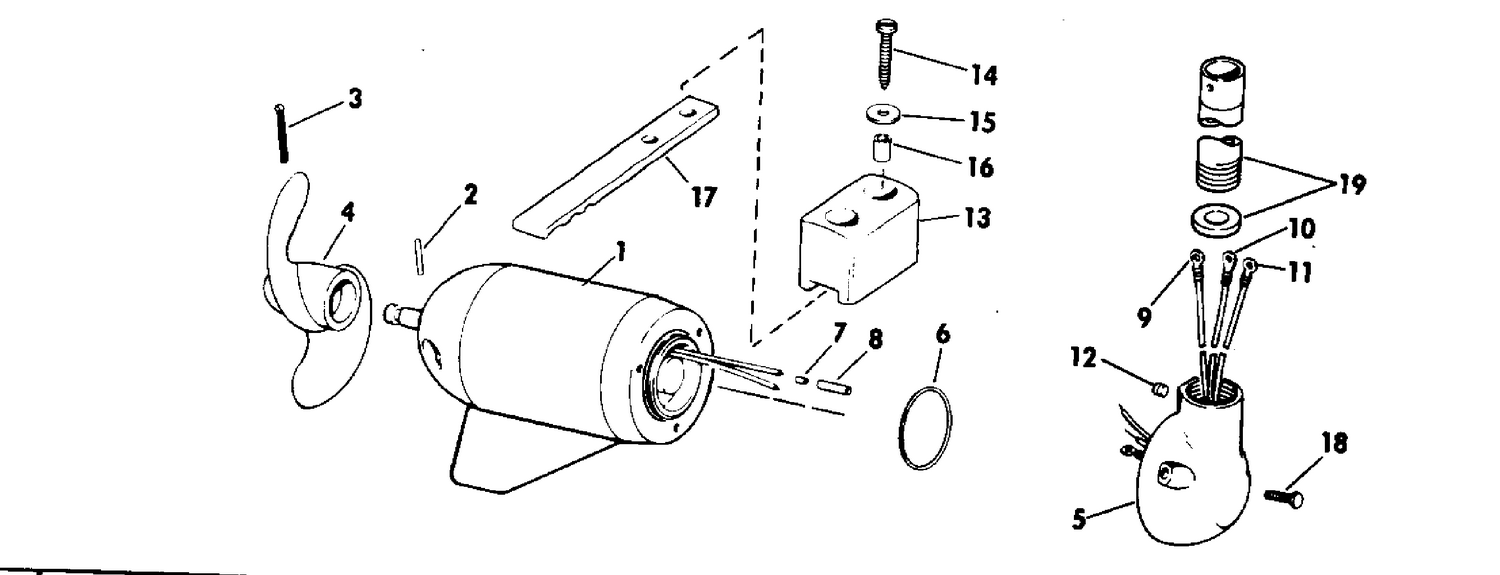

MOTOR AND ADAPTER GROUP 12 VOLT BOW MOUNT
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0433610 | ELECTRIC MOTOR ASSY., 12v (includes 21, 22 & 24) This part replaces 0387036. |
| 2 | 0320408 | SHEAR PIN, Prop |
| 3 | 0319658 | COTTER PIN, Prop |
| 4 | 0325185 | PROPELLER This part replaces 0320867. |
| 5 | 0387357 | ADAPTOR & O-RING PKG |
| 7 | 0320373 | BUTT SPLICE |
| 12 | 0321223 | SET SCREW |
| 13 | 0319660 | REST PAD, Motor |
| 14 | 0121202 | SCREW |
| 15 | 0305940 | WASHER |
| 16 | 0302406 | SLEEVE |
| 17 | 0319778 | STRAP, Motor to rest pad |
| 18 | 0319617 | SCREW, Adaptor to motor |
