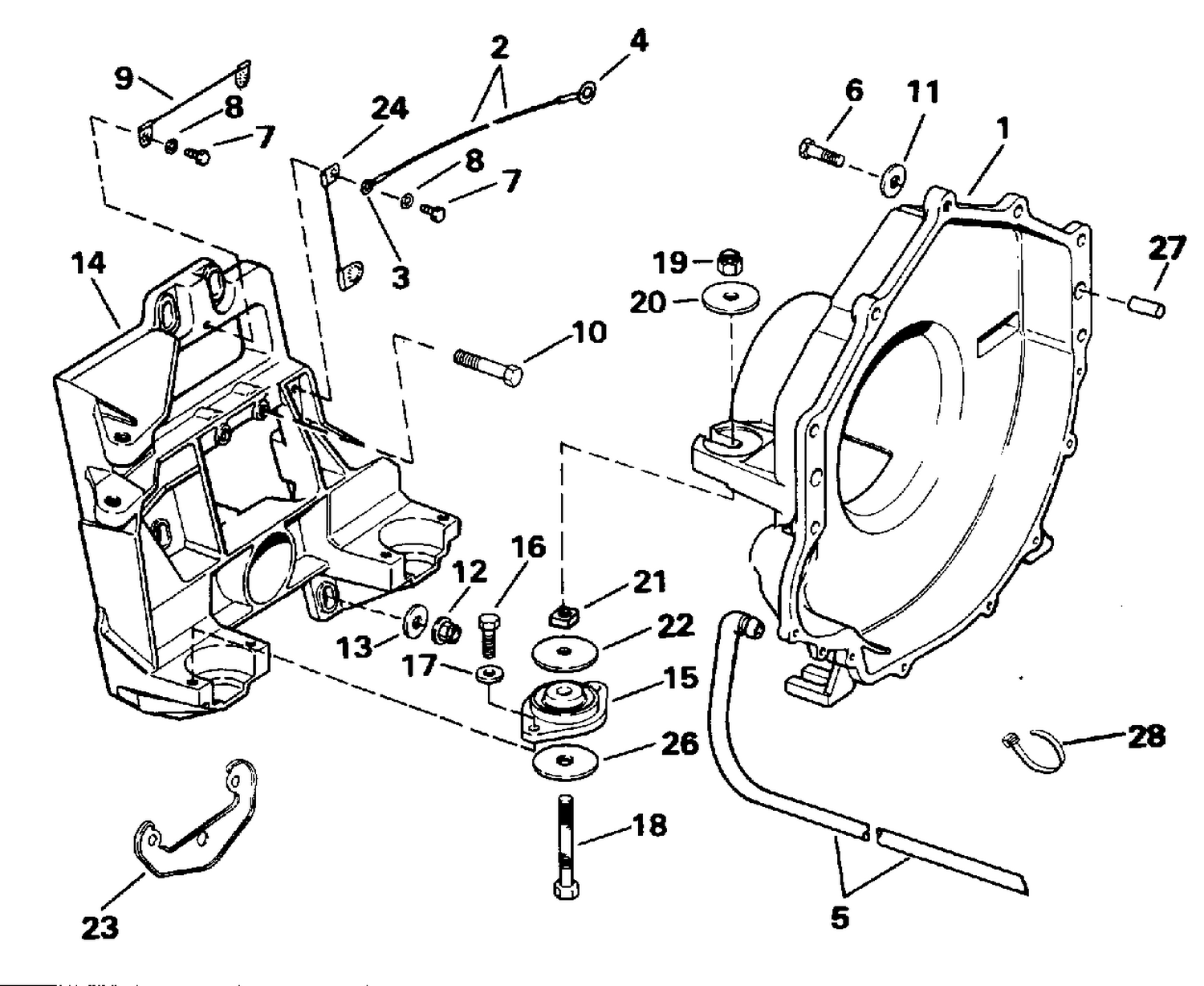

| Ref | Part Number | Description |
|---|
| 1 |
0915157 |
HOUSING, Flywheel |
| 2 |
3853927 |
GROUND STRAP, Bracket to engine This part replaces 0986154. |
| 4 |
3852527 |
RING TERMINAL This part replaces 0911523. |
| 5 |
3852832 |
HOSE, Flywheel housing This part replaces 0913787. |
| 6 |
0915502 |
BOLT, Flywheel housing, small |
| 6 |
0915503 |
BOLT, Flywheel housing, large |
| 8 |
0329241 |
RONDELLE |
| 9 |
3853929 |
GROUND STRAP, Bracket to arm This part replaces 0986156. |
| 10 |
3853547 |
SCREW, Bracket This part replaces 0915726. |
| 11 |
0915498 |
WASHER, Filter base mounting |
| 11 |
0915501 |
WASHER, Block |
| 12 |
3853329 |
LOCKNUT, Transom plate This part replaces 0914772. |
| 13 |
3852573 |
WASHER, Pivot pin This part replaces 0911915. |
| 14 |
3854605 |
TRANSOM PLATE This part replaces 0913826. |
| 15 |
3853806 |
REAR MOUNT This part replaces 0983932. |
| 16 |
0309484 |
SCREW |
| 18 |
0318573 |
SCREW, Bracket mount, 3 1/2 in. (12.7 x 89mm) |
| 19 |
0363254 |
NUT, Stern bracket screw This part replaces 0313623. |
| 20 |
3852540 |
WASHER This part replaces 0911778. |
| 21 |
3852539 |
NUT This part replaces 0911776. |
| 22 |
3852622 |
WASHER, Lower This part replaces 0912889. |
| 23 |
3852605 |
BEARING PLATE This part replaces 0912715. |
| 24 |
3853928 |
GROUND STRAP, Bracket to stud This part replaces 0986155. |
| 26 |
3852542 |
WASHER This part replaces 0911780. |
| 27 |
0915500 |
PIN, Flywheel housing |
