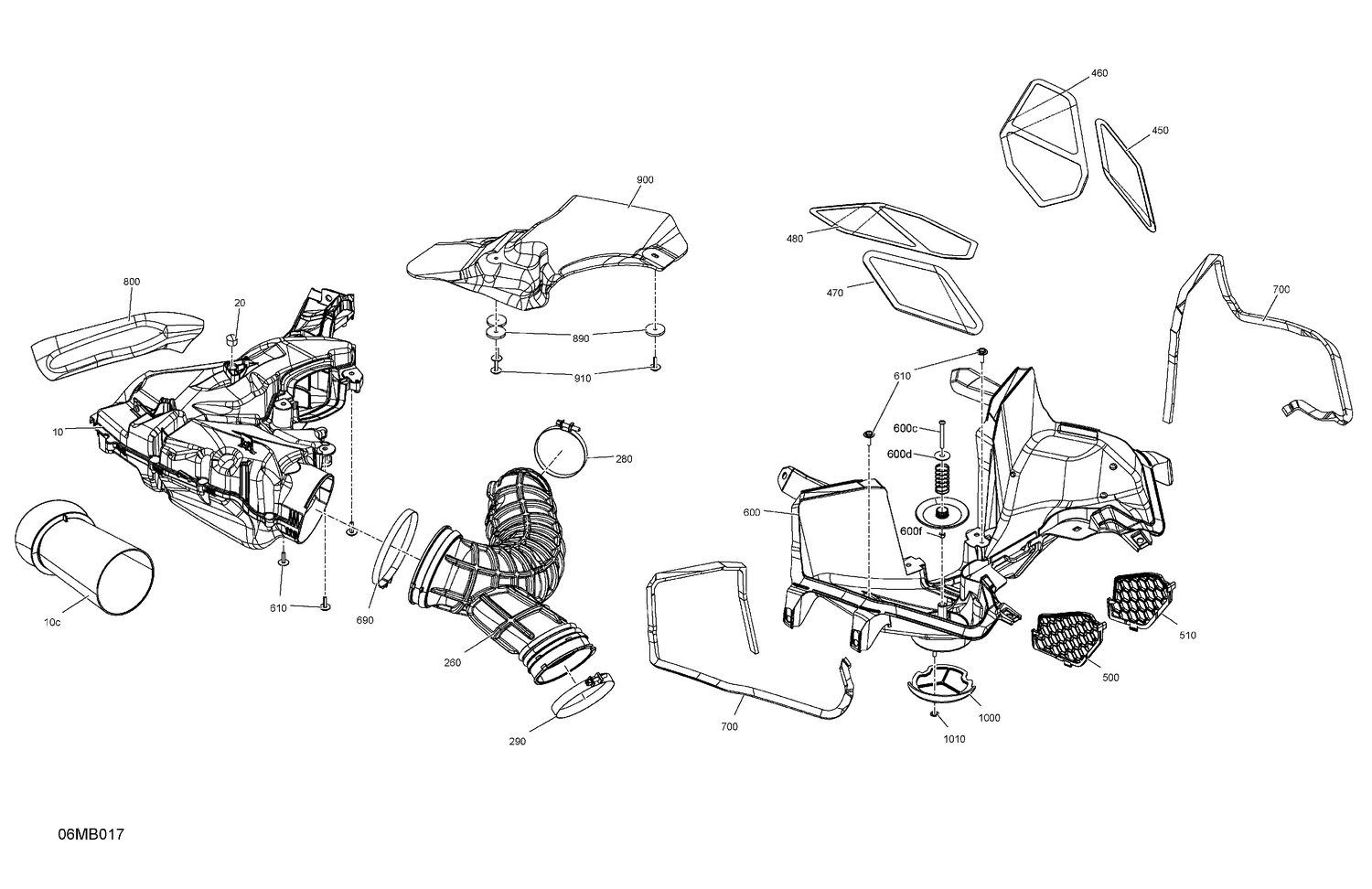

02- Engine - Air Intake
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 508000948 | Secondary Intake Silencer Ass'y |
| 10c | 508000949 | Admission Tube |
| 20 | 572051500 | Cap |
| 260 | 508001146 | Intake Manifold Hose |
| 280 | 508000369 | Gemi Clamp |
| 290 | 293650152 | Gemi Clamp |
| 450 | 508001035 | Air Filter |
| 460 | 508001040 | Air Filter |
| 470 | 508001034 | Air Filter |
| 480 | 508001038 | Air Filter |
| 500 | 508001049 | LH Protective Grille |
| 510 | 508001050 | RH Protective Grille |
| 600c | 205444056 | Socket Head Screw M4 X 40 |
| 600d | 224060201 | Flat Washer |
| 600f | 232541414 | Elastic Stop Nut M4 |
| 610 | 250000725 | Screw M4 X 16 |
| 690 | 293650247 | Gemi Clamp |
| 700 | 293830188 | Seal, 1PC = 3M |
| 800 | 508001047 | Heat Shield |
| 890 | 508001154 | Adhesive Patch |
| 900 | 508000956 | RH Heat Shield |
| 910 | 250000725 | Screw M4 X 16 |
| 1000 | 508000815 | Pop Off Filter |
