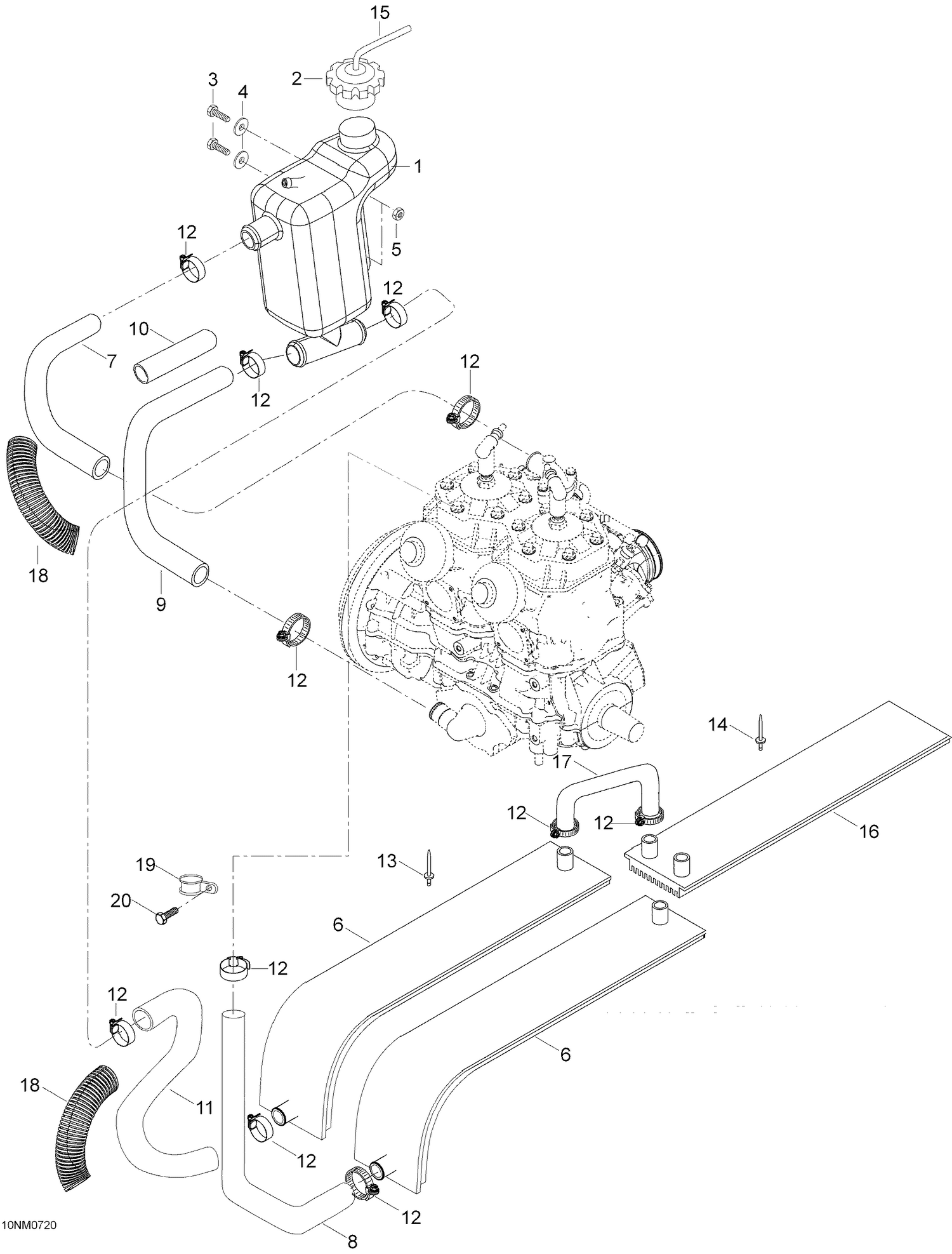

| Ref | Part Number | Description |
|---|
| 1 |
605152223 |
COOLANT TANK - Call your local BRP dealership |
| 2 |
21018 |
Cap |
| 3 |
40029 |
Hex. sacrew M6 x 16 |
| 4 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 5 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 6 |
605151689 |
LH RADIATOR - Call your local BRP dealership |
| 6 |
605151690 |
RH RADIATOR - Call your local BRP dealership |
| 7 |
605353969 |
HOSE (RESERVOIR - ENGINE) - Call your local BRP dealership |
| 8 |
605253629 |
LH HOSE - Call your local BRP dealership |
| 9 |
605253621 |
HOSE - Call your local BRP dealership |
| 10 |
39062 |
Isolating tubing |
| 11 |
605353968 |
RH HOSE - Call your local BRP dealership |
| 12 |
408800400 |
TRIDON GEAR CLAMP - Call your local BRP dealership |
| 13 |
36108 |
Rivet |
| 14 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 15 |
39038 |
Hose |
| 16 |
605351687 |
Radiator, rear |
| 17 |
605253904 |
FRONT RADIATOR HOSE - Call your local BRP dealership |
| 18 |
390003 |
Tubing |
| 19 |
27011 |
Clamp |
