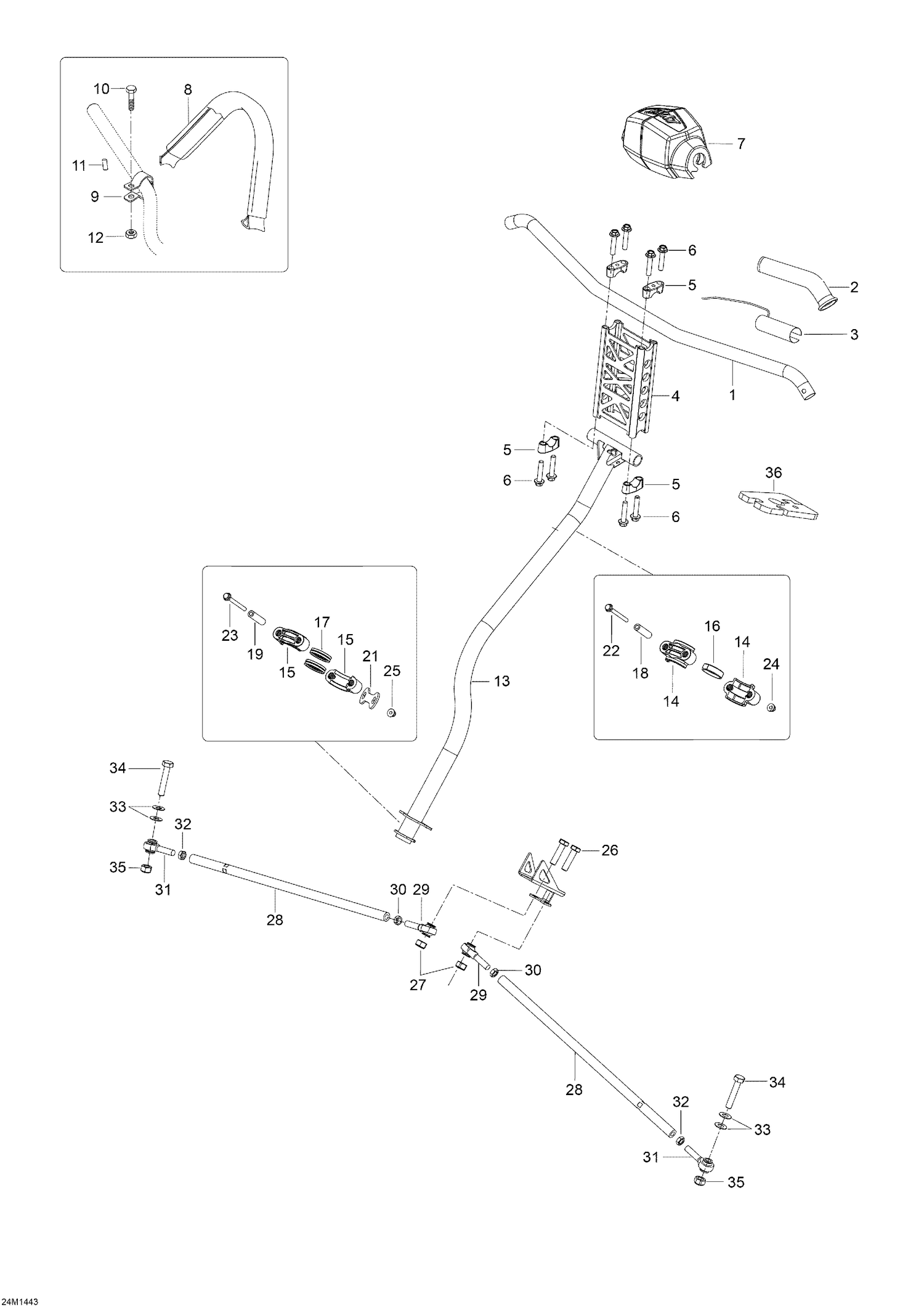

07- Steering
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506152722 | Handle Bar |
| 2 | 506152483 | Grip |
| 3 | 506152467 | Heating Element |
| 4 | 860200821 | Extension Kit ( 205mm ) |
| 5 | 506152751 | Steering Support This part replaces 506152395. |
| 6 | 250000285 | Hex. Flange Screw M8 x 40 |
| 7 | 506152192 | Steering Pad |
| 8 | 506152115 | Strap Ass'y |
| 9 | 506152536 | Black Support Plate |
| 10 | 207662054 | Hex. Flange Screw M6 X 20 |
| 11 | 506152156 | Bushing |
| 12 | 233261494 | Hex. Flange Elastic Nut M6 |
| 13 | 506152963 | Steering Column This part replaces 506152586. |
| 14 | 506152508 | Upper Half-Housing |
| 15 | 506152217 | Lower Half-Housing |
| 16 | 506152509 | Upper Anti-Vibration Gasket |
| 17 | 506152518 | Lower Vibration Ring |
| 18 | 506152297 | Housing Bushing |
| 19 | 506152388 | Lower Housing Bushing |
| 21 | 506152389 | Stopper Plate |
| 22 | 207667056 | Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 23 | 207686544 | Hex. Flange Screw, M8 X 65 |
| 24 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 25 | 233281414 | Hex. Flange Elastic Nut M8 |
| 26 | 207004044 | Hex. Screw M10 X 40 |
| 27 | 232500416 | Elastic Stop Nut M10 |
| 28 | 506152436 | Tie Rod |
| 29 | 506152081 | LH Thread Ball Joint |
| 30 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 31 | 506152019 | RH Threaded Ball Joint |
| 32 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 33 | 506152194 | Washer |
| 34 | 207004544 | Hex. Screw M10 X 45 |
| 35 | 232500416 | Elastic Stop Nut M10 |
