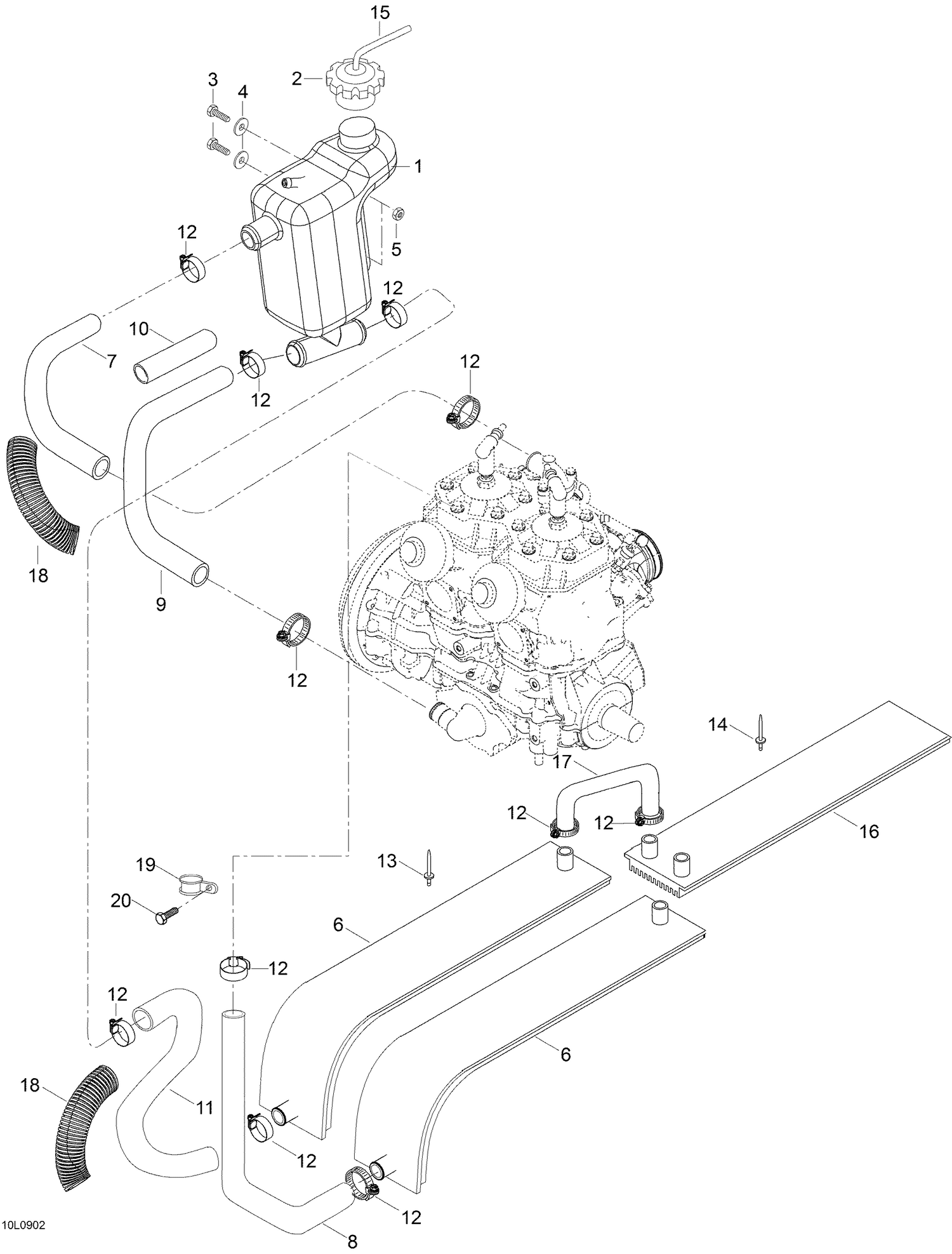

| Ref | Part Number | Description |
|---|
| 1 |
605152223 |
COOLANT TANK - Call your local BRP dealership |
| 2 |
M21018 |
Cap |
| 3 |
207161644 |
Hex. Screw M6 X 16 |
| 4 |
234062410 |
Flat Washer 6 mm This part replaces M20009. |
| 5 |
232561414 |
Elastic Stop Nut M6 |
| 6 |
605151689 |
LH RADIATOR - Call your local BRP dealership |
| 6 |
605151690 |
RH RADIATOR - Call your local BRP dealership |
| 7 |
605351619 |
Hose |
| 8 |
605253629 |
LH HOSE - Call your local BRP dealership |
| 9 |
605253621 |
HOSE - Call your local BRP dealership |
| 10 |
M39062 |
TUBING - Call your local BRP dealership |
| 11 |
605353968 |
RH HOSE - Call your local BRP dealership |
| 12 |
408800400 |
TRIDON GEAR CLAMP - Call your local BRP dealership |
| 13 |
36108 |
Rivet This part replaces M36108. |
| 14 |
M36489 |
Rivet |
| 15 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 16 |
605351687 |
Radiator, Rear |
| 17 |
605253904 |
FRONT RADIATOR HOSE - Call your local BRP dealership |
| 18 |
M28036 |
Tubing |
| 19 |
M27011 |
CLIP - Call your local BRP dealership |
