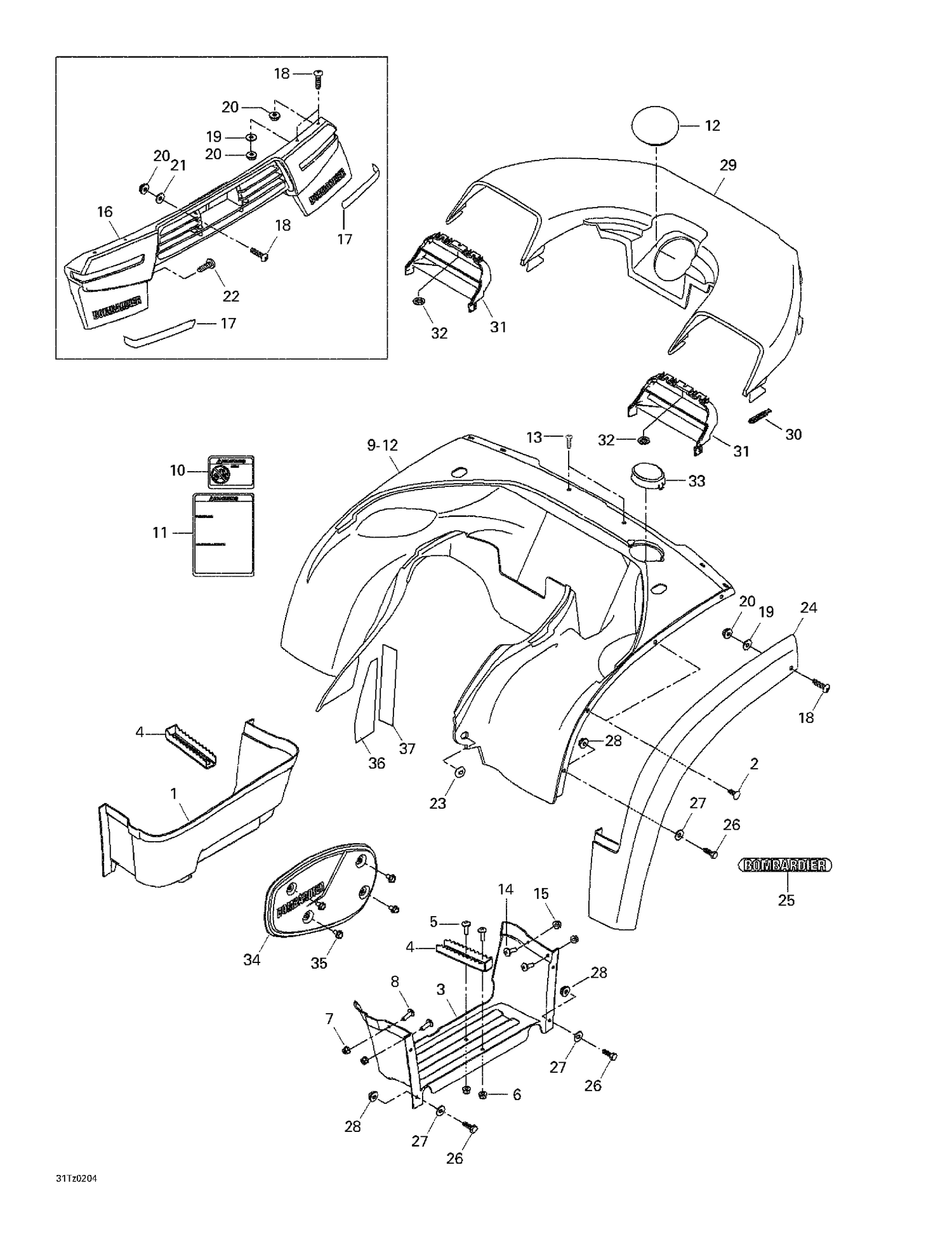

| Ref | Part Number | Description |
|---|
| 2 |
293730011 |
Black, Dart |
| 4 |
705000279 |
Foot Pegs |
| 5 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 6 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 7 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 8 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 12 |
705000207 |
CAP - Call your local BRP dealership |
| 13 |
732600009 |
PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership |
| 14 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 15 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 18 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 19 |
224060201 |
Flat Washer |
| 20 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 21 |
224060201 |
Flat Washer |
| 22 |
732600009 |
PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership |
| 23 |
705005156 |
Oval Washer |
| 25 |
704900026 |
Bombardier label |
| 26 |
207162044 |
Hex. Screw M6 X 20 |
| 27 |
224060201 |
Flat Washer |
| 28 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 30 |
570023800 |
Windshield Latch |
| 31 |
705000180 |
LH Grill, Black |
| 32 |
250100000 |
PUSH NUT - Call your local BRP dealership |
| 33 |
705000132 |
COVER, BLACK - Call your local BRP dealership |
| 35 |
210261050 |
Hex. Forming Screw M6 X 10 This part replaces 210261080. |
| 36 |
705000491 |
Reflective Sheet |
| 703500151 |
Garde-Boue |
Arrière DR 703500151 |
| 705000181 |
Louvre |
DR, Noir 705000181 |
| 705000181 |
RH |
Grill, Black 705000181 |
