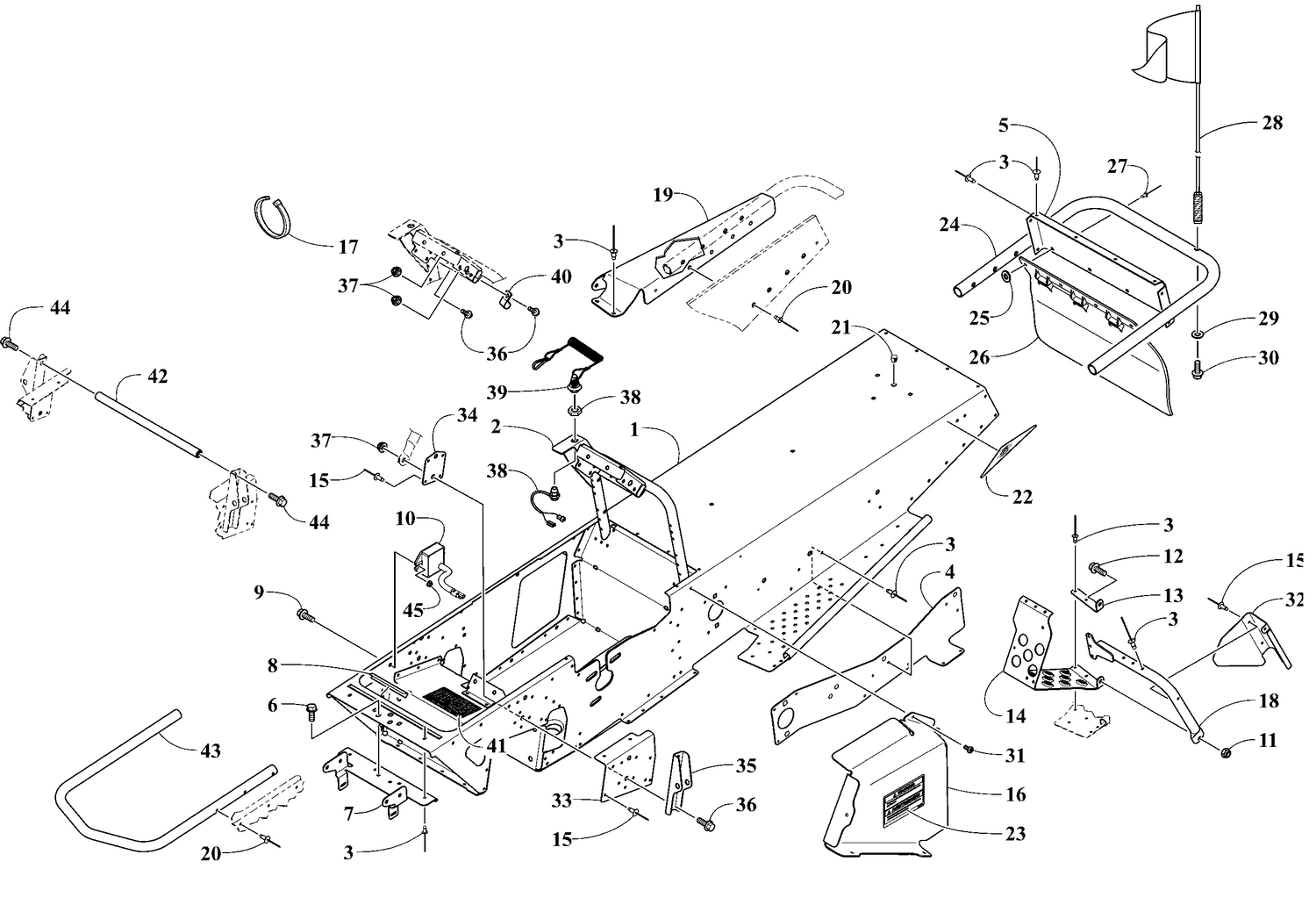

| Ref | Part Number | Description |
|---|
| 1 |
4707-392 |
Black, Tunnel Ass'y |
| 2 |
6716-497 |
Black, Front End Ass'y |
| 3 |
8060-484 |
Zinc Rivet |
| 4 |
2706-156 |
RH Reinforced Tunnel Plate |
| 4 |
2706-157 |
LH Reinforced Tunnel Plate |
| 5 |
2706-158 |
Black, Tunnel Cover Plate |
| 6 |
0623-892 |
Self Tapping Screw 1/4-20X1/2 |
| 7 |
6706-367 |
Black, Front Belly Pan Bracket |
| 8 |
0706-371 |
Rack Trim 36 |
| 9 |
8477-620 |
Machine Screw |
| 10 |
0630-409 |
Voltage Regulator |
| 11 |
8047-366 |
Elastic Stop Nut 1/4-20 |
| 12 |
8020-040 |
Cap Screw 1/4-20 |
| 13 |
2706-180 |
RH Footrest Support Bracket |
| 13 |
2706-181 |
LH Footrest Support Bracket |
| 14 |
6716-354 |
Black, RH Footrest |
| 14 |
6716-355 |
Black, LH Footrest |
| 15 |
8060-486 |
Zinc Rivet |
| 16 |
2706-217 |
Cover |
| 17 |
414115200 |
Tie-Rap 180 mm |
| 18 |
3706-773 |
LH Footrest Support |
| 18 |
4706-824 |
RH Footrest Support |
| 19 |
4706-262 |
Black, RH Rear Bumper End Cap |
| 19 |
4706-263 |
Black, LH Rear Bumper End Cap |
| 20 |
8060-706 |
Black, Rivet |
| 21 |
0623-562 |
Black, Hole Plug 3/8 Dia |
| 22 |
8621-870 |
Decal This part replaces 0621-990. |
| 23 |
3611-754 |
Warning Decal |
| 24 |
3706-006 |
Black, Rear Bumper |
| 25 |
0123-802 |
Flat Washer |
| 26 |
1616-354 |
Snow Guard |
| 27 |
8060-708 |
Black, Pop Rivet |
| 28 |
6706-408 |
Flag Safety Ass'y |
| 29 |
8050-247 |
Flat Washer |
| 30 |
8020-134 |
Cap Screw 5/16-18 |
| 31 |
0623-301 |
Self Tapping Screw 10X1/2 |
| 32 |
6706-552 |
Black, RH Belly Pan Support |
| 32 |
6706-553 |
Black, LH Belly Pan Support |
| 33 |
6706-548 |
RH Outer Reinforcement Plate |
| 33 |
6706-549 |
LH Outer Reinforcement Plate |
| 34 |
6706-440 |
Inner Reinforcement Plate |
| 35 |
6706-441 |
Black, Bracket |
| 36 |
8020-131 |
Cap Screw 5/16-18 |
| 37 |
8047-426 |
Elastic Stop Nut 1/4-20 |
| 38 |
0630-138 |
Tether Switch |
| 39 |
0630-139 |
Tether Switch Cord |
| 40 |
3008-040 |
Heat Sensor Clamp M12 |
| 41 |
6621-942 |
Decal Jet Chart 120 |
| 42 |
4604-452 |
X-Brace Axle |
| 43 |
6706-274 |
Black, Front Bumper |
| 44 |
1623-566 |
Cap Screw 5/16-18 |
