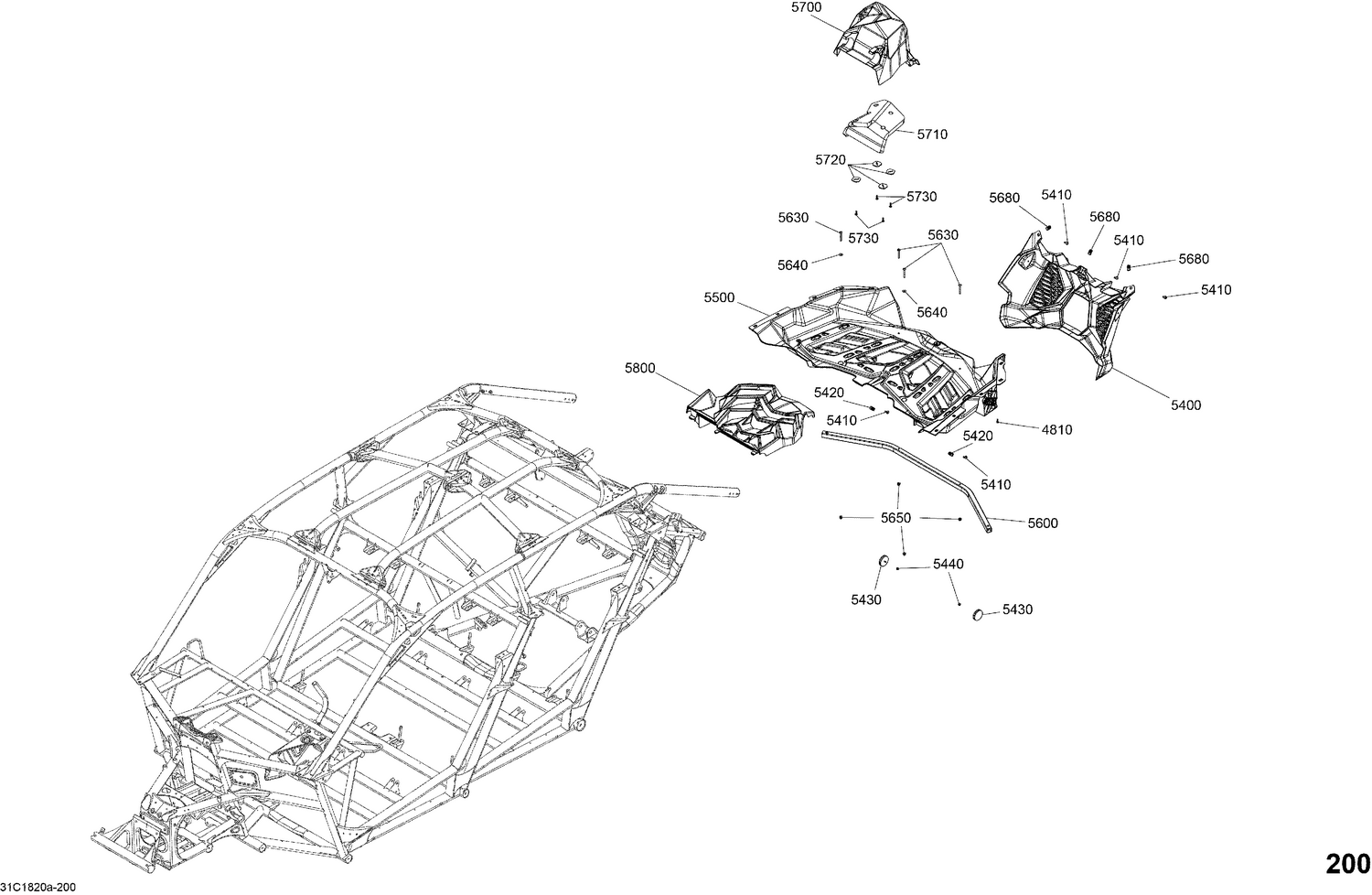

09- Body Parts - Bright White - Package STD - Rear Section
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 4810 | 250000720 | Torx Screw K50 X 16 |
| 5400 | 705017558 | Rear Fairing This part replaces 705010001. |
| 5410 | 250000722 | Torx Screw M6 X 20 |
| 5420 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 5430 | 705011221 | Red Reflector |
| 5440 | 233251494 | Elastic Flange Nut M5 |
| 5500 | 715006590 | Luggage Rack Kit This part replaces 715004063. |
| 5600 | 705012589 | Luggage rack Tube |
| 5630 | 250000868 | Torx Truss M6 X 50 |
| 5640 | 234062670 | Stainless Steel Flat Washer |
| 5650 | 233261494 | Hex. Flange Elastic Nut M6 |
| 5680 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 5700 | 705012700 | Air Inlet Cover |
| 5710 | 705011293 | Foam Air Intake Cover |
| 5720 | 705003841 | Support Plate |
| 5730 | 250000760 | Torx Screw Truss Head K50X20 T20 |
