Parts Catalog

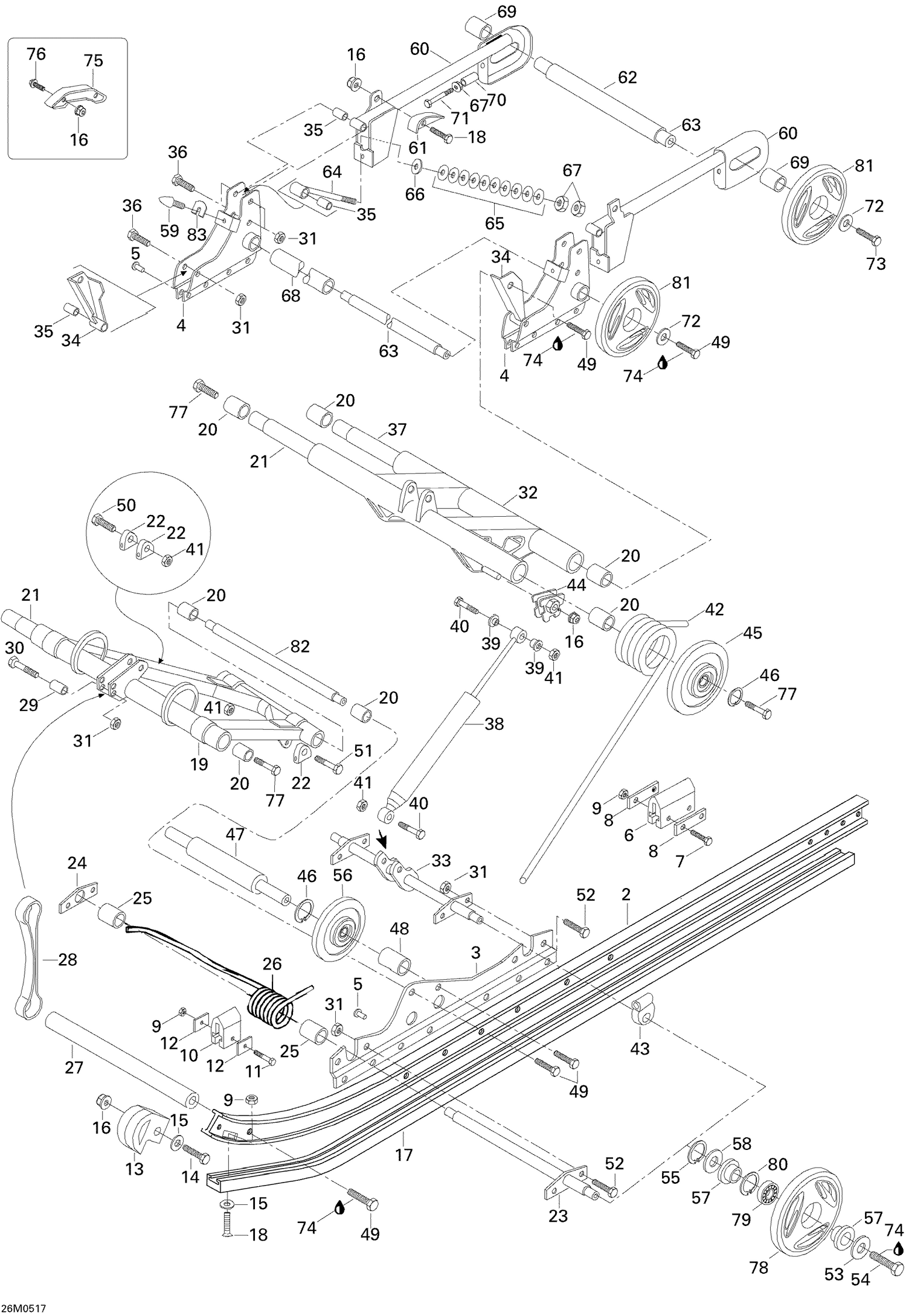

08- Rear Suspension

Parts (87)

Ref	Part Number	Description
2	5142864	RUNNER - Call your local BRP dealership This part replaces M5142864.
3	5344810	Support Plate Lh This part replaces M5344810.
3	5344811	Support Plate Rh This part replaces M5344811.
4	539672	Support For Rearaxle Lh This part replaces M539672.
4	539673	Support For Rearaxle Rh This part replaces M539673.
5	M544212	RIVET - Call your local BRP dealership
6	570023100	RUBBER STOPPER - Call your local BRP dealership
7	207064044	Hex. Screw M6 X 40
8	M548387	Washer
9	232561414	Elastic Stop Nut M6
10	5442328	STOPPER-RUBBER - Call your local BRP dealership This part replaces M5442328.
11	207063044	Hex. Screw M6 X 30
12	M548470	Plate
13	605348954	Runner Protector
14	207162544	Hex. Screw M6 X 25
15	234061410	Flat Washer 6 mm
16	233261414	Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200.
17	M549582	Runner Shoe
18	207162044	Hex. Screw M6 X 20
19	M538796	Welded Front Arm
20	31023	Bearing This part replaces M31046.
21	538945	Arm Shaft This part replaces M538945.
22	548799	Spring Roller This part replaces M548799.
23	M538802	Axle
24	M548469	Plate Support
25	M548841	Sleeve
26	5241177	Spring L.H. This part replaces M5241177.
26	5241178	Spring R.H. This part replaces M5241178.
27	M546599	Cross Shaft
28	M5445988	STOPPER STRAP - Call your local BRP dealership
29	M546065	Sleeve
30	M40122	Hex. Screw
31	232581414	Hex. Elastic Stop Nut M8
32	M538801	Welded Rear Arm
33	M538803	Shaft
34	5440349	Crank Arm Lh This part replaces M5440349.
34	5440350	Crank Arm R.H. This part replaces M5440350.
35	545758	Spacer This part replaces M545758.
36	207084544	Hex. Screw M8 X 45
37	548946	Swing Shaft This part replaces M548946.
38	23133	SHOCK - Call your local BRP dealership This part replaces M23016.
39	544417	Shock Spacer - Call your local BRP dealership This part replaces M544417.
40	207005044	Hex. Screw M10 X 1.5 X 50
41	233601416	Elastic Locking Nut M10 X 1.5
42	538805	Spring L.H. This part replaces M538805.
42	538806	Spring R.H. This part replaces M538806.
43	M548804	Spring Support
44	572030800	LH ADJUST CAM - Call your local BRP dealership
44	572030900	RH ADJUST CAM - Call your local BRP dealership
45	503194127	Wheel 165" This part replaces 503189568.
46	31001	Retaining Ring 25X2 Din471(1=10Pcs) This part replaces M31001.
47	M5445985	Support Shaft
48	M5444098	Sleeve L=29
49	40335	Hex Sc. M10X 30 Bn73 M8.8 Zne(1=10Pcs) This part replaces M40335.
50	207005544	Hex. Screw M10 X 55
51	207103544	Hex. Screw M10 X 35 This part replaces M40042.
52	207181644	Hex. Screw M8 x 16
53	503183100	Washer
54	M40337	Hex. Screw
55	293370056	Circlip 20X1.75 DIN471 This part replaces M31007.
56	503191029	Wheel 135
57	503189534	Cushion
58	M31091	SHIM - Call your local BRP dealership
59	535455	Rubber Stopper - Call your local BRP dealership This part replaces M535455.
60	605251783	EXTENSION TUBE LH - Call your local BRP dealership
60	605251784	EXTENSION TUBE RH - Call your local BRP dealership
61	M548262	Protector
62	M5346739	SLEEVE - Call your local BRP dealership
63	M5445986	Shaft
64	5440377	BOLT-EYE ADJUSTER - Call your local BRP dealership This part replaces M5440377.
65	25004	Cup Spring This part replaces M25004.
66	234002410	Flat Washer 10 mm This part replaces M20011.
67	232006414	Hex. Nut M10 X 1.5
68	M542105	SLEEVE L=176 - Call your local BRP dealership
69	M5444098	Sleeve L=29
70	605633002	Spacer This part replaces 605452332.
71	M40239	SCREW - Call your local BRP dealership
72	503183300	Washer
73	M40050	Hex. Screw With Nylon Patch
74	293800060	Loctite 243, 10 ml
75	503192731	SLIDING PAD - Call your local BRP dealership This part replaces M5343191.
76	207764044	BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces M40064.
77	40314	Hex Sc. M10x 30 BN73 m8.8 MUP(1=10pcs) - Call your local BRP dealership This part replaces M40314.
79	293350115	Ball Bearing This part replaces 405404500.
80	371901700	CIRCLIP - Call your local BRP dealership
81	503190817	Wheel 165 mm Yellow
