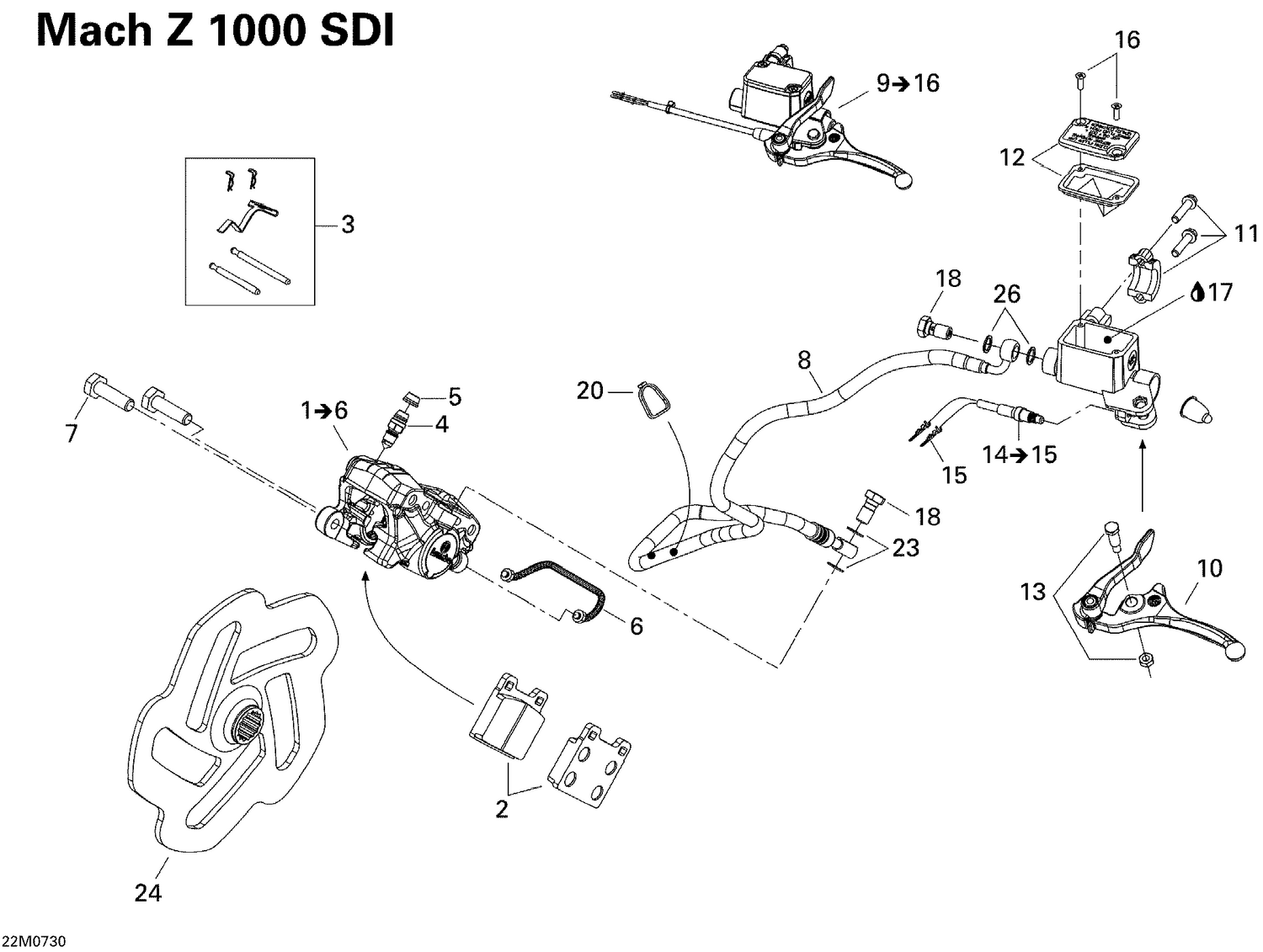

06- Hydraulic Brakes ADR
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 507032387 | Brake Caliper |
| 2 | 415084600 | Brake Pad Kit |
| 3 | 415128865 | KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership |
| 4 | 414989800 | BLEEDER SCREW - Call your local BRP dealership |
| 5 | 414989700 | BOOT-QTS 20 - Call your local BRP dealership |
| 6 | 414989900 | RIGID TUBING - Call your local BRP dealership |
| 7 | 205503544 | Socket Head Screw M10 X 35, Scotch Grip |
| 8 | 507032384 | HOSE - Call your local BRP dealership |
| 10 | 415129216 | LEVER - Call your local BRP dealership |
| 11 | 507032477 | Clamp And Screw Kit This part replaces 415029800. |
| 12 | 415029900 | Cap |
| 13 | 415030000 | Pin Ass'y |
| 14 | 507032366 | Microswitch |
| 15 | 515175232 | Male Terminal |
| 16 | 216141260 | SCREW M4 X 12 - Call your local BRP dealership |
| 17 | 293600063 | BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership |
| 18 | 414920500 | Banjo Bolt |
| 20 | 293750002 | Tie Wrap 142 mm |
| 23 | 414920600 | Washer |
