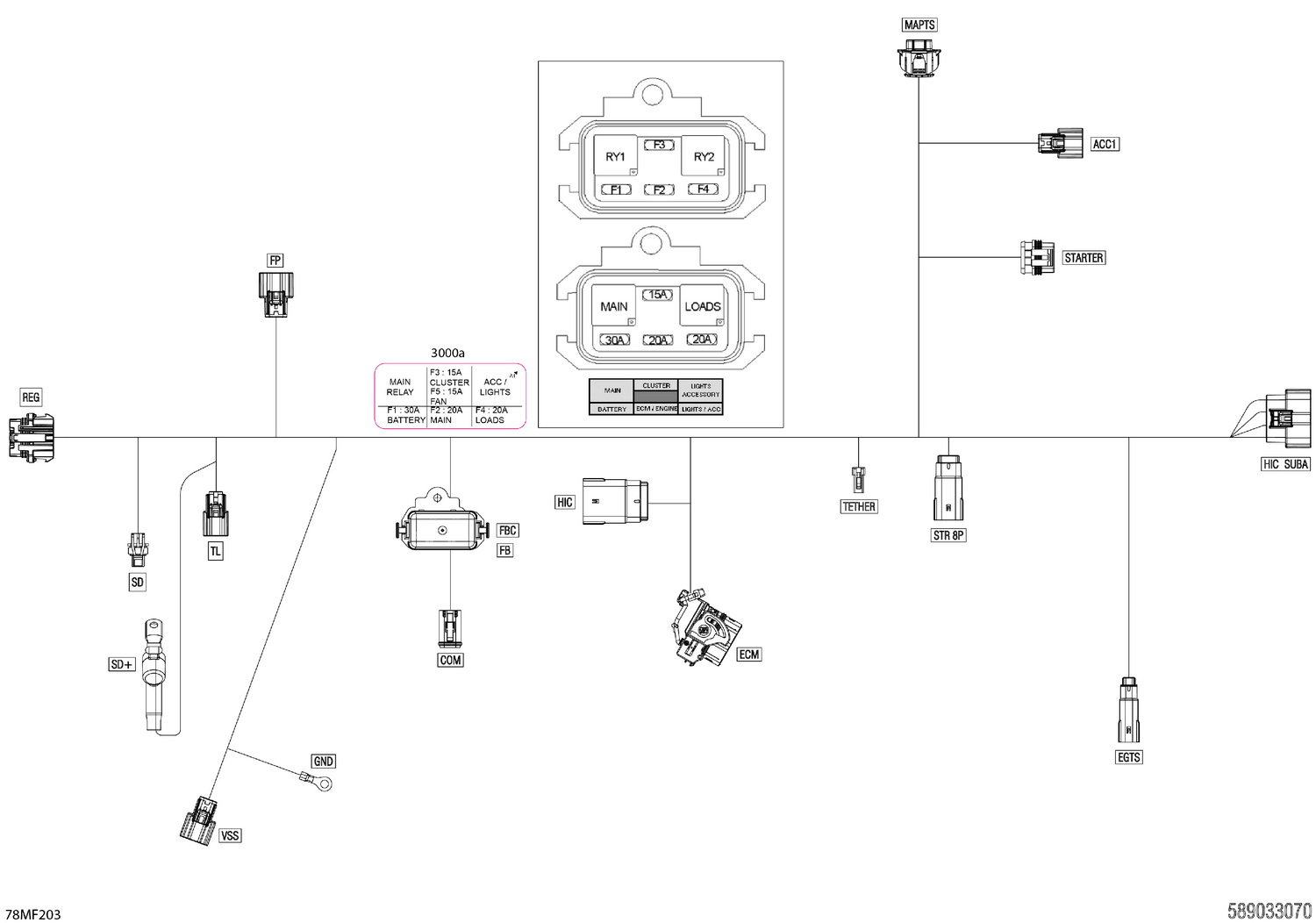

08- Electric - Main Harness - 515179394
Parts (59)
| Ref | Part Number | Description |
|---|---|---|
| ACC1 | 515178014 | Female Terminal |
| ACC1 | 515178018 | Female Terminal |
| ACC1 | 515178954 | Housing |
| COM | 278003855 | Terminal |
| COM | 710002705 | Lock |
| COM | 710002706 | Female Housing 6 Circuits |
| COM | 710005438 | Female Terminal |
| COM | 710005439 | Female Terminal |
| ECM | 710001589 | Female Terminal |
| ECM | 710001591 | Cover, 48 positions |
| ECM | 710001592 | Plug |
| ECM | 710001593 | Plug |
| ECM | 710001727 | Female Terminal |
| EGTS | 515178013 | Male Terminal |
| F1 | 710000747 | Little Fuse, 30 Amperes |
| F2 | 710000746 | Little Fuse, 20 Amperes |
| F3 | 710000745 | Little Fuse, 15 Ampere |
| F4 | 710000746 | Little Fuse, 20 Amperes |
| FB | 278000218 | Wire Seal |
| FB | 278001065 | Wire Seal |
| FB | 278002578 | Female Terminal |
| FB | 515177177 | Female Terminal |
| FB | 515178762 | Fuse Box Ass'y |
| FB | 710000048 | Wire Seal |
| FB | 710000918 | Female Terminal |
| FBC | 278002286 | Fuse Box Cover |
| FBC | 516012524 | Fuses Decal |
| FP | 515178018 | Female Terminal |
| FP | 515178474 | Female Housing |
| GND | 278001392 | Open Barrel Terminal |
| HIC | 515178013 | Male Terminal |
| HIC | 515178223 | Clip Connector |
| HIC | 710005976 | Connector Molex Mx150 16 Pos |
| MAPTS | 415128501 | Seal |
| MAPTS | 515176410 | Male Connector |
| MAPTS | 710001137 | Female Terminal |
| REG | 278003685 | Seal |
| REG | 710000877 | Female Terminal |
| REG | 710000879 | Female Housing, 3 Circuits This part replaces 278003517. |
| REG | 710000881 | Seal |
| RY1 | 715900824 | Relay This part replaces 710001778. |
| RY2 | 715900824 | Relay This part replaces 710001778. |
| SD | 515177192 | Female Housing, 2 Circuits |
| SD | 710000925 | Terminal |
| SD | 710001332 | Seal Wire |
| STARTER | 278001013 | Wire Seal |
| STARTER | 278001014 | Female Terminal |
| STARTER | 409013700 | Plug |
| STARTER | 409209700 | Female Housing, 4 Circuits |
| STR8P | 515178013 | Male Terminal |
| STR8P | 515178907 | Molex Male Connector 8 Cavities |
| TETHER | 515175231 | Female Terminal |
| TETHER | 515175658 | Female Housing, 2 Circuits |
| TL | 515178014 | Female Terminal |
| TL | 515178018 | Female Terminal |
| TL | 515178346 | Female Housing Connector 4 Pins W/O CPA |
| VSS | 515178954 | Housing |
| 3000 | 515179394 | Chassis Wiring Harness |
| 3000a | 516012524 | Fuses Decal |
