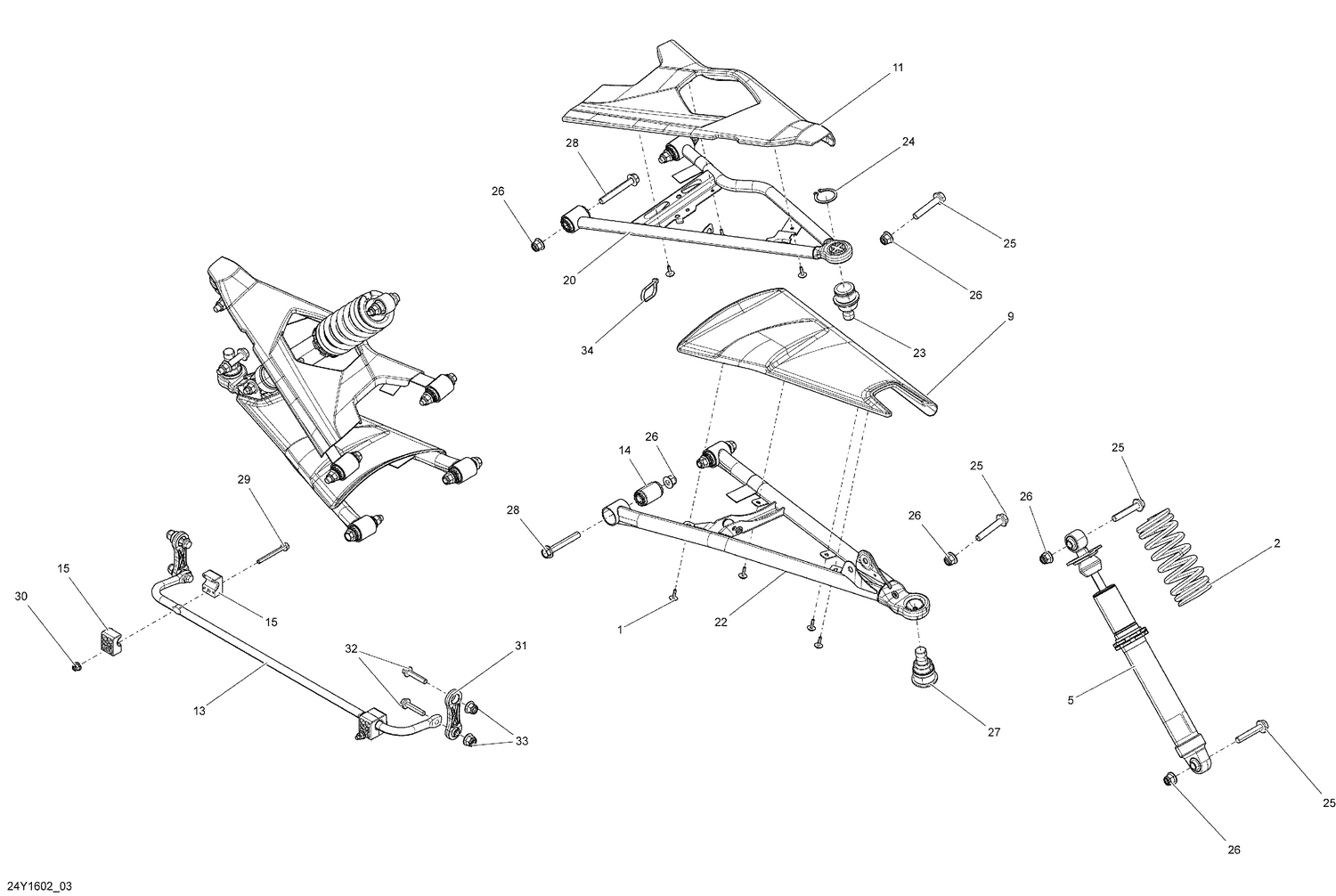

07- Suspension, Front
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 250000725 | Screw M4 X 16 |
| 2 | 706001108 | SPRING - Call your local BRP dealership |
| 5 | 706001939 | Shock |
| 9 | 706201319 | LH Lower Air Deflector |
| 9 | 706201320 | RH Lower Air Deflector |
| 13 | 706201421 | SWAY BAR - Call your local BRP dealership |
| 14 | 706201519 | Suspension Arm Bushing |
| 15 | 706201545 | Stabilizer Bushing |
| 20 | 706201735 | LH UPPER ARM - Call your local BRP dealership |
| 20 | 706201736 | RH Upper Arm |
| 22 | 706201737 | LH Lower Arm |
| 22 | 706201738 | RH Lower Arm |
| 23 | 706202507 | Ball Joint |
| 24 | 293370035 | Circlip |
| 25 | 207605554 | Hex. Flange Screw M10 X 55 |
| 26 | 233201466 | Flange Elastic Nut M10 |
| 27 | 706202508 | Ball Joint |
| 28 | 207607056 | Hex. Flange Screw M10 X 70 |
| 29 | 250000778 | Hex. Flange Screw M6 X 60 |
| 30 | 233261466 | Hex. Flange Elastic Nut M6 |
| 31 | 706200671 | Tie Rod This part replaces 706202506. |
| 32 | 207684054 | Hex. Flange Screw M8 X 40 |
| 33 | 233281464 | Elastic Flange Nut M8 |
