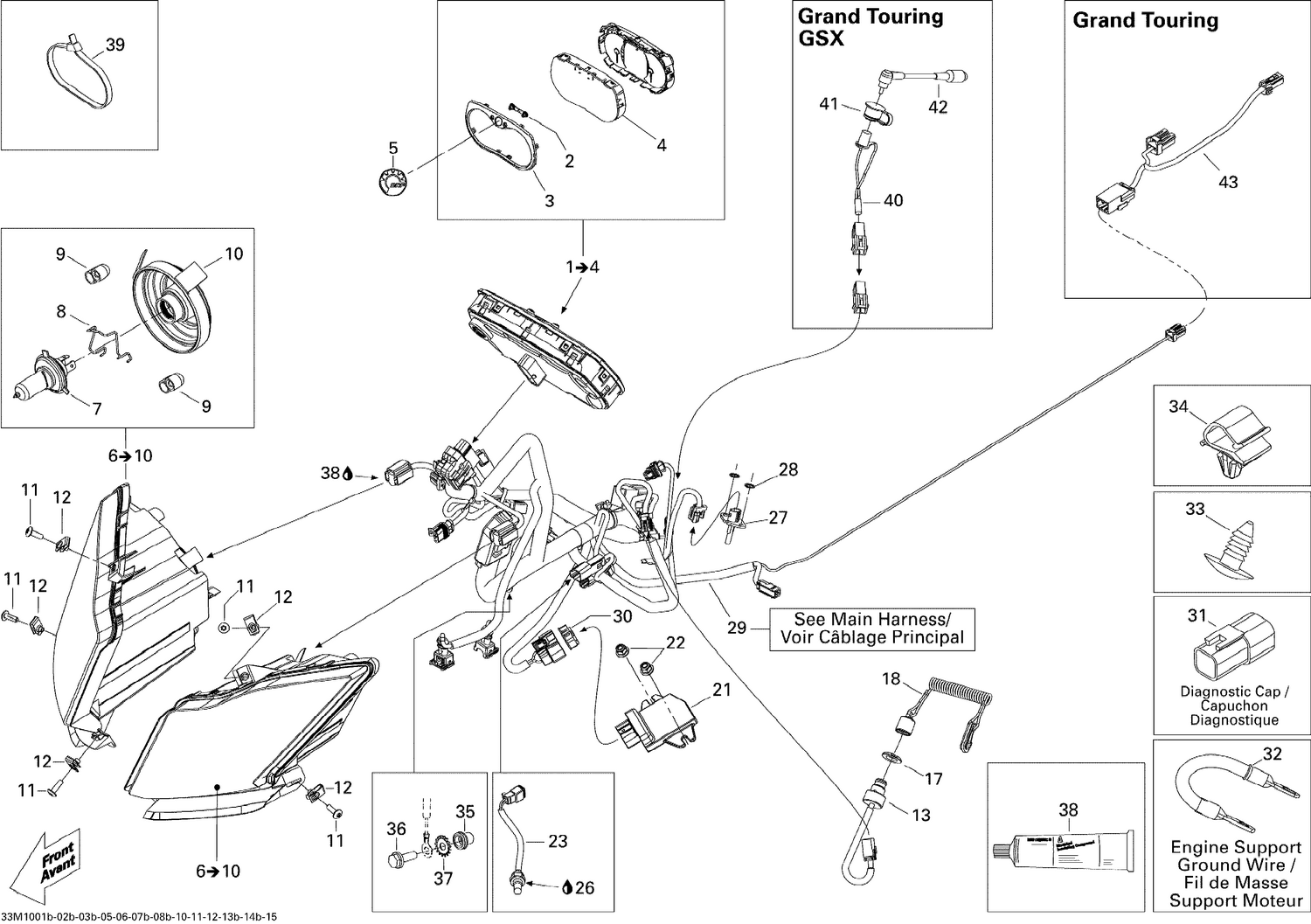

10- Electrical System
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 415129355 | Speedometer Button |
| 3 | 415129370 | Gauge Ring |
| 4 | 415129349 | Lens |
| 5 | 516006224 | BRP Logo 20MM x 2MM This part replaces 219902677. |
| 7 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 8 | 515176493 | BULB HOLDER - Call your local BRP dealership |
| 9 | 515176498 | Cap |
| 10 | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 11 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 12 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 13 | 515177249 | DESS Switch This part replaces 515176815. |
| 17 | 278002963 | Safety Nut (DESS Switch) This part replaces 278000508. |
| 18 | 515178284 | DESS This part replaces 515176936. |
| 21 | 515176364 | Voltage Regulator |
| 22 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 23 | 420664509 | Temperature Sensor This part replaces 515176398. |
| 26 | 219704455 | Was 293800018 Loctite 592, 50 ml |
| 27 | XXX | Not Available As Spare Parts |
| 28 | XXX | Not Available As Spare Parts |
| 29 | 515176834 | WIRING HARNESS MAIN - Call your local BRP dealership |
| 30 | 515176681 | Lock |
| 31 | 515176234 | FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership |
| 32 | 515176358 | Ground Wire |
| 33 | 414644300 | Black, Dart |
| 34 | 515176795 | Tie Rap Mount (screwable) |
| 35 | 293450275 | Insert This part replaces 415107300. |
| 36 | 207662044 | Hex. Flange Screw M6 X 20 |
| 37 | 250200041 | Lock Washer Serrated M6 |
| 38 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 39 | 293750002 | Tie Wrap 142 mm |
| 39 | 293750008 | Tie Wrap 368 mm |
| 39 | 293750009 | Tie-Rap 173 mm |
| 39 | 414115200 | Tie-Rap 180 mm |
| 40 | 515177837 | Visor Harness This part replaces 515175799. |
| 41 | 572103300 | Cap |
| 42 | 515175851 | Extension |
