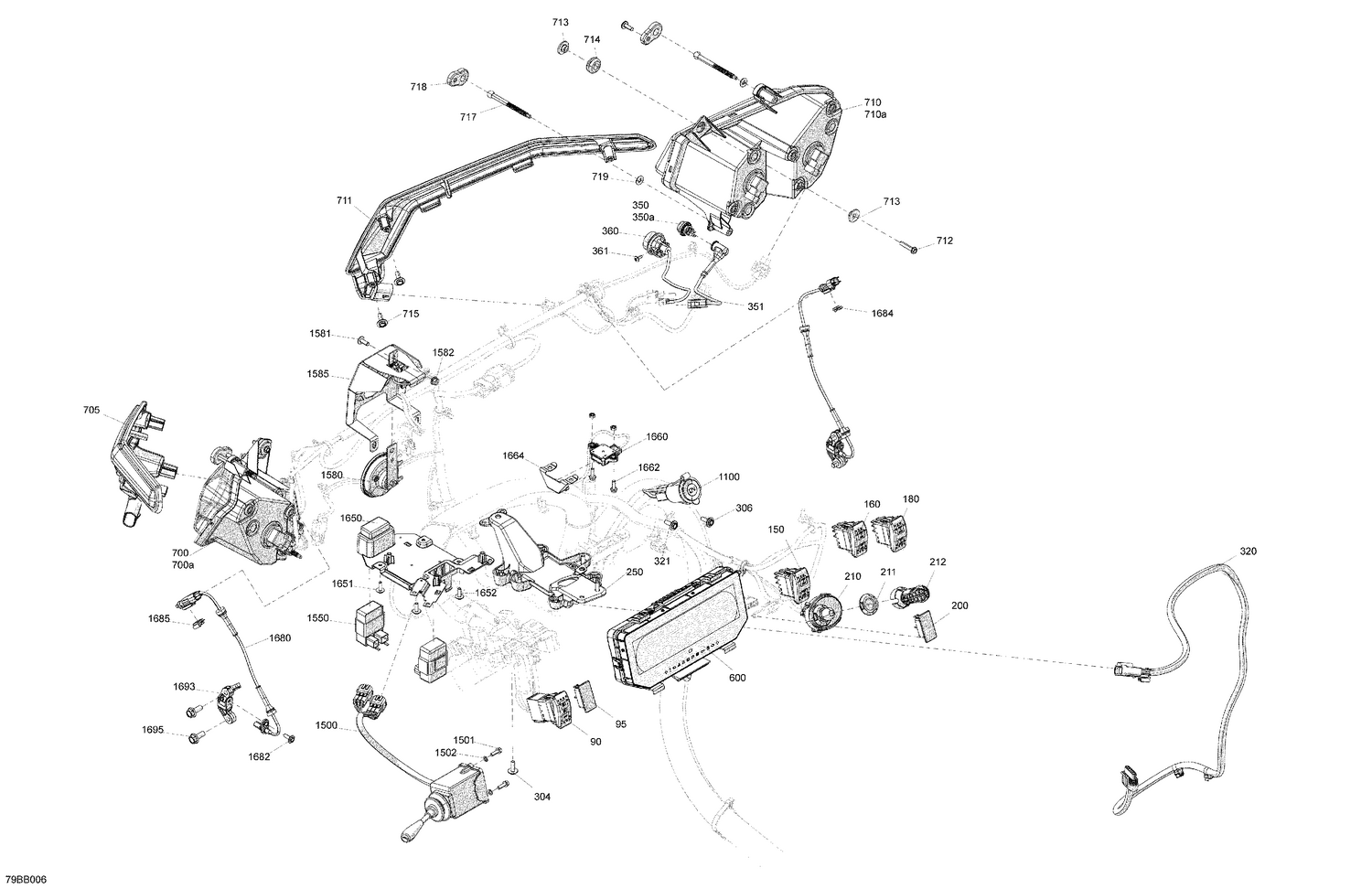

08- Electric - Front Section - ABS
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 90 | 710006107 | Hazard Lights Switch |
| 95 | 710007173 | Plug Carling |
| 150 | 710005489 | Switch 2X4 |
| 160 | 710005470 | Differential Lock Switch |
| 180 | 710006553 | Switch HDC |
| 210 | 515178840 | Terminal Dess One-Wire |
| 211 | 278002963 | Safety Nut (DESS Switch) |
| 212 | 515179384 | Grey, Can-Am DESS Key |
| 250 | 710005672 | Housing Support |
| 304 | 250000959 | Screw PT Type K-50 X 16 |
| 306 | 250000959 | Screw PT Type K-50 X 16 |
| 320 | 710005929 | Trottle Pedal Harness |
| 321 | 250000959 | Screw PT Type K-50 X 16 |
| 350a | 710003269 | Cap Protector |
| 351 | 710005676 | Position Light Harness |
| 360 | 710002964 | Flasher |
| 361 | 250000721 | Torx Truss Screw M6 X 16 |
| 600 | 710007409 | Multifunction Gauge MID |
| 700 | 710008230 | LH Headlamp |
| 700a | 715900141 | Bulb 12V 55W |
| 705 | 705011485 | LH Fascia Trim |
| 710 | 710008231 | RH Headlamp |
| 710a | 715900141 | Bulb 12V 55W |
| 711 | 705011486 | RH Fascia Trim |
| 712 | 241152540 | Hex. Flange Screw K50 X 2.24 X 25 |
| 713 | 710004749 | Shoulder Bushing |
| 714 | 709000582 | Grommet |
| 715 | 250000959 | Screw PT Type K-50 X 16 |
| 717 | 710005837 | Ajustment Screw |
| 718 | 710005097 | Adjustment Guide |
| 719 | 293300192 | O-Ring |
| 1100 | 710005374 | Prise Accessoire 12V |
| 1500 | 710001721 | Turn Signal |
| 1501 | 210251650 | Hex. Forming Screw M5 X 16 |
| 1502 | 234151401 | Lock Washer 5 mm |
| 1550 | 710003239 | Flasher Unit |
| 1580 | 710004791 | Horn |
| 1581 | 250000721 | Torx Truss Screw M6 X 16 |
| 1582 | 233261494 | Hex. Flange Elastic Nut M6 |
| 1650 | 710006056 | Support Connector |
| 1651 | 250000959 | Screw PT Type K-50 X 16 |
| 1652 | 250000959 | Screw PT Type K-50 X 16 |
| 1660 | 710005658 | Yaw Rate Sensor |
| 1662 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 1664 | 710006501 | Yaw Sensor Support |
| 1680 | 710006981 | Speed Sensor |
| 1682 | 250000959 | Screw PT Type K-50 X 16 |
| 1684 | 409210100 | Clip Bracket Connector (edge) |
| 1685 | 710001038 | Clip |
| 1693 | 710008185 | ABS Sensor Support |
| 1695 | 207582054 | Hex Screw Washer Head M8 X 20 |
