Parts Catalog

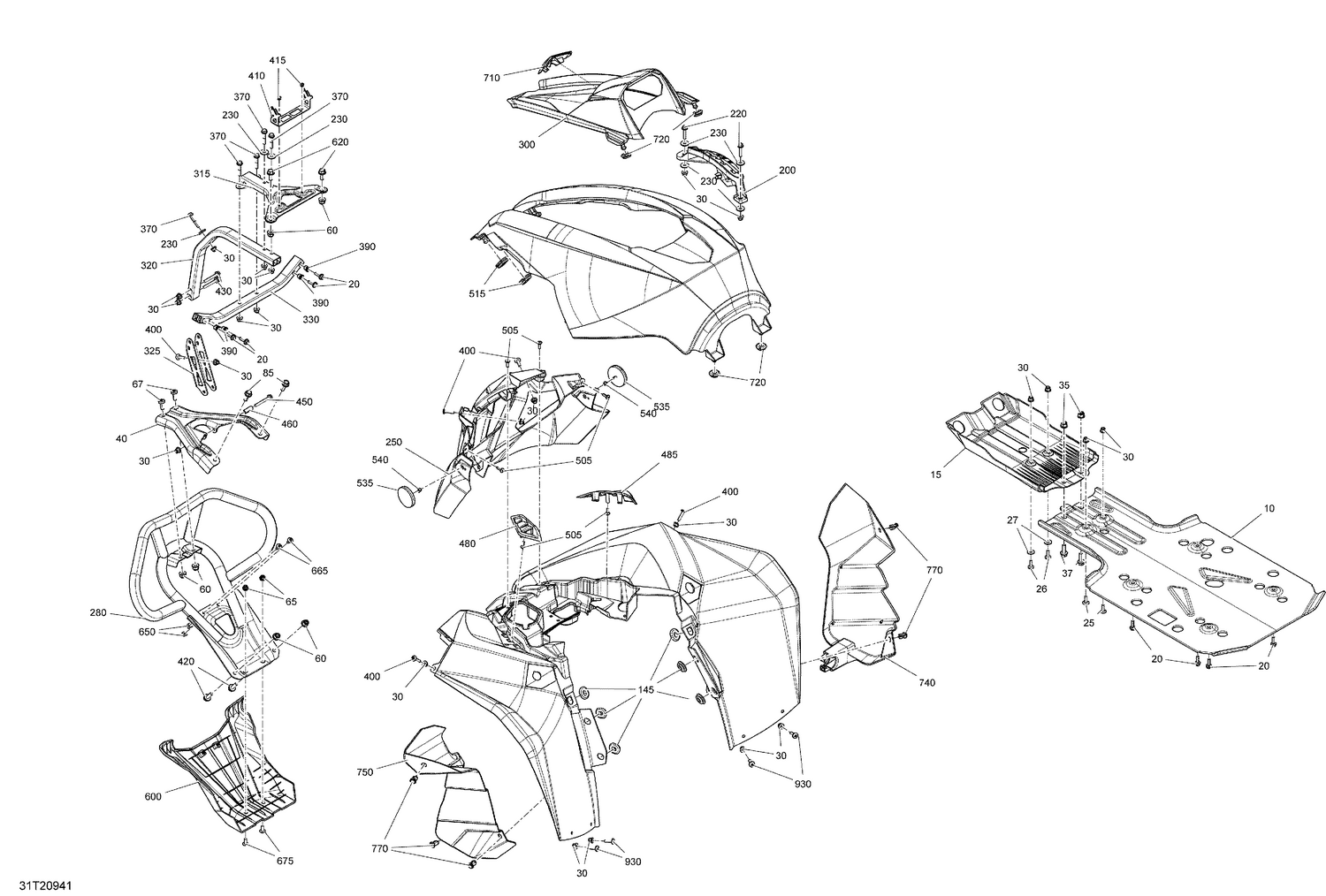

09- Body - Front Section - Black

Parts (50)

Ref	Part Number	Description
10	705204031	Central Skid Plate
15	705007820	Skid Plate
20	207662054	Hex. Flange Screw M6 X 20
25	207762044	Carriage Bolt M6 X 20
26	250000712	Torx Screw M6 X 20
27	234062670	Stainless Steel Flat Washer
30	233261434	Flange Elastic Nut M6
35	233281434	Hex. Flange Elastic Nut M8
37	207682534	Hex. Flange Screw M8 X 25
40	705003505	Bumper Support
60	233281434	Hex. Flange Elastic Nut M8
65	250100199	Insert Half Hex Body M6 x 1.0
67	250000740	Torx Screw M8 X 20, Scotch Grip
85	207582544	Hex. Flange Screw M8 X 25, Scotch Grip
145	705000321	Oval Washer
200	705004416	Lever Indicator
220	207563034	Hex. Flange Screw M6 X 30, Scotch Grip
230	224061201	Flat Washer
250	705003948	Front Facia
280	705011635	Front Bumper
300	705003556	Dashboard
315	705003599	Bracket
320	705016643	Front Sectinal Bent Tube This part replaces 705003511.
325	705002282	Support
330	705016093	Bent Sectional Tube This part replaces 705003510.
370	207663544	Hex. Flange Screw M6 X 35
390	293450275	Insert
400	250000758	Torx Screw M6 X 25
410	710002482	Fuse Holder
415	390402400	Pop Rivet 3/16"
420	207682534	Hex. Flange Screw M8 X 25
430	207664544	Hex. Flange Screw M6 X 45
450	207665044	Hex. Flange Screw M6 X 50
460	705005809	Spacer
480	705008137	LH Grille
485	705008138	RH Grille
505	250000720	Torx Screw K50 X 16
515	705003668	Oblong Grommet
535	705011222	Amber Reflector
540	233251434	Flange Elastic Nut M5
600	705004850	Front Bumper Plate
620	207682044	Hex. Flange Screw M8 X 20
650	232862412	Square Nut M6
665	250000454	Torx Screw M6 X 12
675	250000755	Torx Screw M6 X 16
710	705002353	Cap
720	705003264	Grommet
740	705017922	RH Front Wheel Arch Protector This part replaces 705010717.
750	705017926	LH Front Wheel Arch Protector This part replaces 705011891.
770	293150230	Tuflok Plastic Rivet
