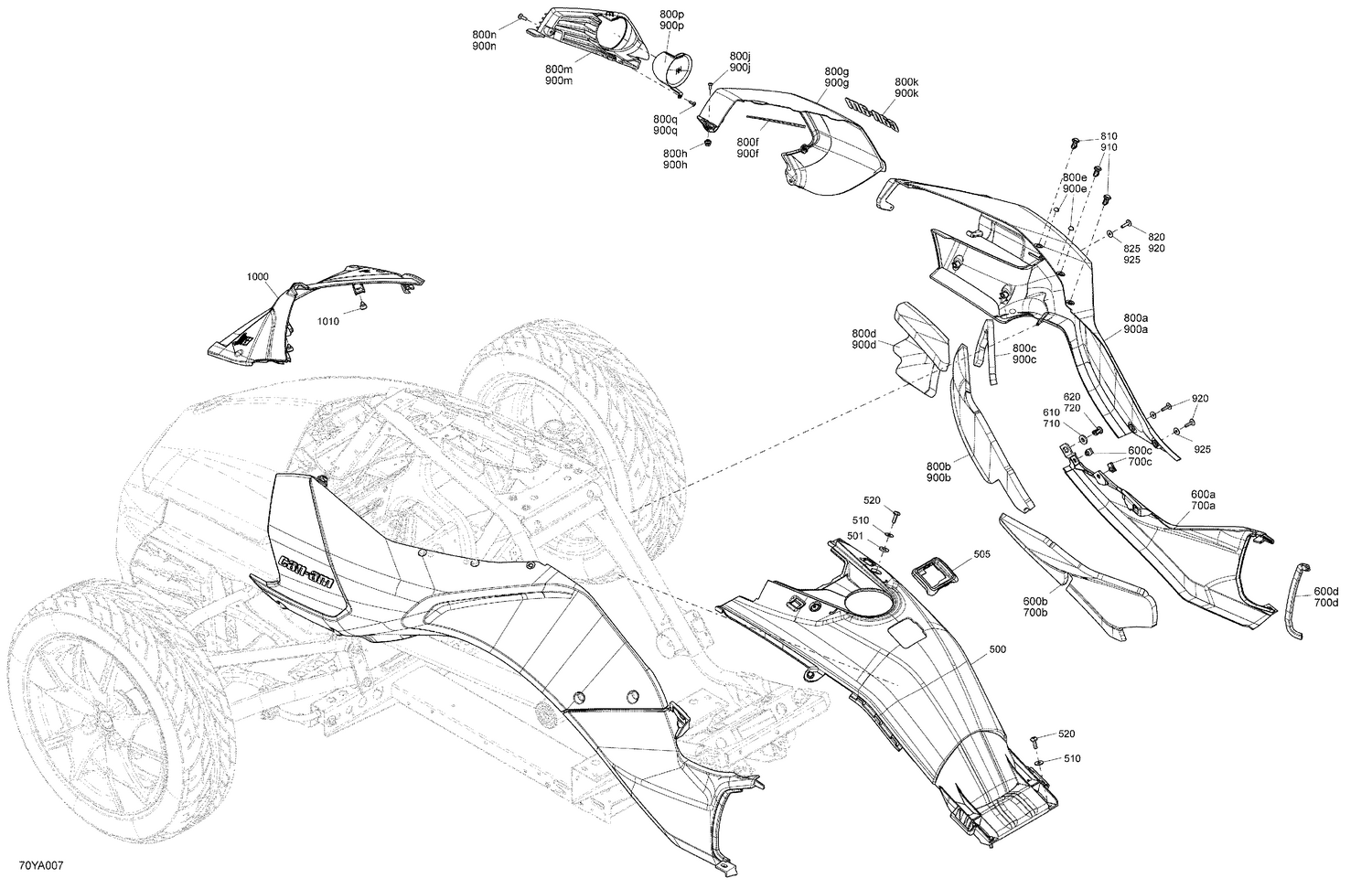

| Ref | Part Number | Description |
|---|
| 500 |
705014880 |
Liquid Titan, Tank Cover |
| 501 |
705015250 |
Self-Adhesive Spacer |
| 505 |
705014731 |
Switch Support |
| 510 |
234062670 |
Stainless Steel Flat Washer |
| 520 |
250000705 |
Torx Truss Screw M6 X 20 |
| 600a |
705013391 |
Liquid Titan, LH Low Fairing |
| 600b |
705010473 |
LH Acoustic Foam |
| 600c |
250000958 |
Panel Nut M5 X 0.8 |
| 600d |
293250380 |
Seal Joint |
| 610 |
705010890 |
Spacer |
| 620 |
293150230 |
Tuflok Plastic Rivet |
| 700a |
705013544 |
Liquid Titan, RH Low Fairing |
| 700b |
705010474 |
RH Acoustic Foam |
| 700c |
250000958 |
Panel Nut M5 X 0.8 |
| 700d |
293250380 |
Seal Joint |
| 710 |
705010890 |
Spacer |
| 720 |
293150230 |
Tuflok Plastic Rivet |
| 800a |
705013396 |
Liquid Titan, LH Lateral Fairing |
| 800b |
705009155 |
Acoustic Foam |
| 800c |
705009157 |
Acoustic Foam |
| 800d |
705009159 |
Acoustic Foam |
| 800e |
705006634 |
Polyurethane Stopper |
| 800f |
219704373 |
Seal 1000Mm Long |
| 800g |
705014875 |
Liquid Titan, LH Air Scoop |
| 800h |
705009430 |
Anchor Pin |
| 800j |
250001131 |
Torx Truss PT K40 x 12 |
| 800k |
704904675 |
Brillant Chrome, Logo CAN-AM |
| 800m |
705010137 |
Deep Black, LH Air Vent Grid |
| 800n |
250000720 |
Torx Screw K50 X 16 |
| 800p |
705007787 |
Deep Black, LH Light Cap |
| 800q |
250001131 |
Torx Truss PT K40 x 12 |
| 810 |
293150230 |
Tuflok Plastic Rivet |
| 820 |
250000586 |
Torx Truss M5 X 20 |
| 825 |
234052670 |
Stainless Steel Flat Washer M5 |
| 900a |
705013572 |
Liquid Titan, RH Lateral Fairing |
| 900b |
705009156 |
Acoustic Foam |
| 900c |
705009158 |
Acoustic Foam |
| 900d |
705009160 |
Acoustic Foam |
| 900e |
705006634 |
Polyurethane Stopper |
| 900f |
219704373 |
Seal 1000Mm Long |
| 900g |
705014876 |
Liquid Titan, RH Air Scoop |
| 900h |
705009430 |
Anchor Pin |
| 900j |
250001131 |
Torx Truss PT K40 x 12 |
| 900k |
704904675 |
Brillant Chrome, Logo CAN-AM |
| 900m |
705010138 |
Deep Black, RH Air Vent Grid |
| 900n |
250000720 |
Torx Screw K50 X 16 |
| 900p |
705008963 |
Deep Black, RH Light Cap |
| 900q |
250001131 |
Torx Truss PT K40 x 12 |
| 910 |
293150230 |
Tuflok Plastic Rivet |
| 920 |
250000586 |
Torx Truss M5 X 20 |
| 925 |
234052670 |
Stainless Steel Flat Washer M5 |
| 1000 |
705008058 |
Service Center Fairing |
